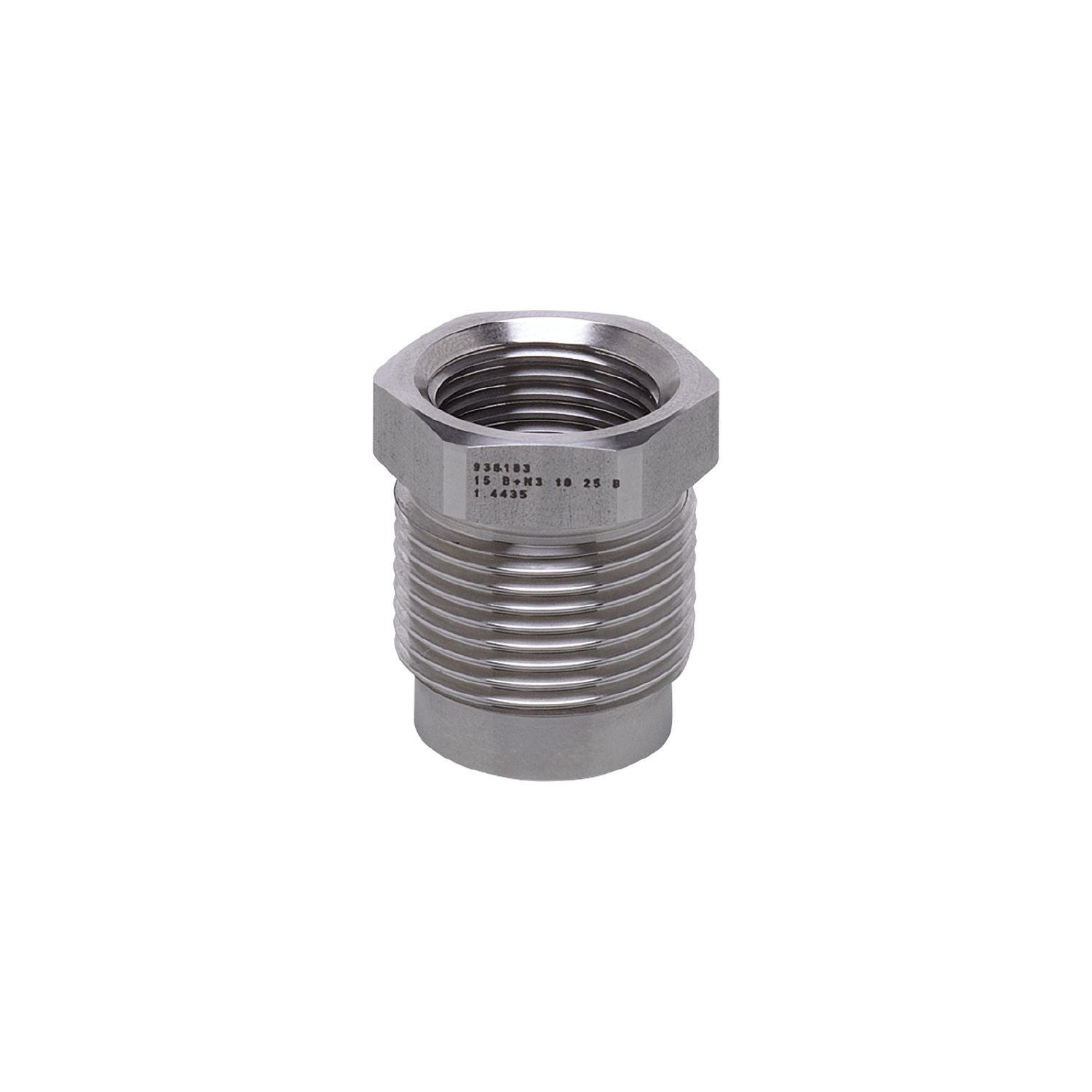

IFM E43302 - Screw-in adapter for process sensors ADAPT G1/2-G3/4

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Robust stainless steel design for the requirements of the food and beverage industry
Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	118.7
Materials	stainless steel (1.4435 / 316L)
Sensor connection	G 1/2 sealing cone
Process connection	threaded connection G 3/4
Surface characteristics Ra/Rz of the wetted parts	0.4 / 4

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43302-00 — 23.06.2021 —
