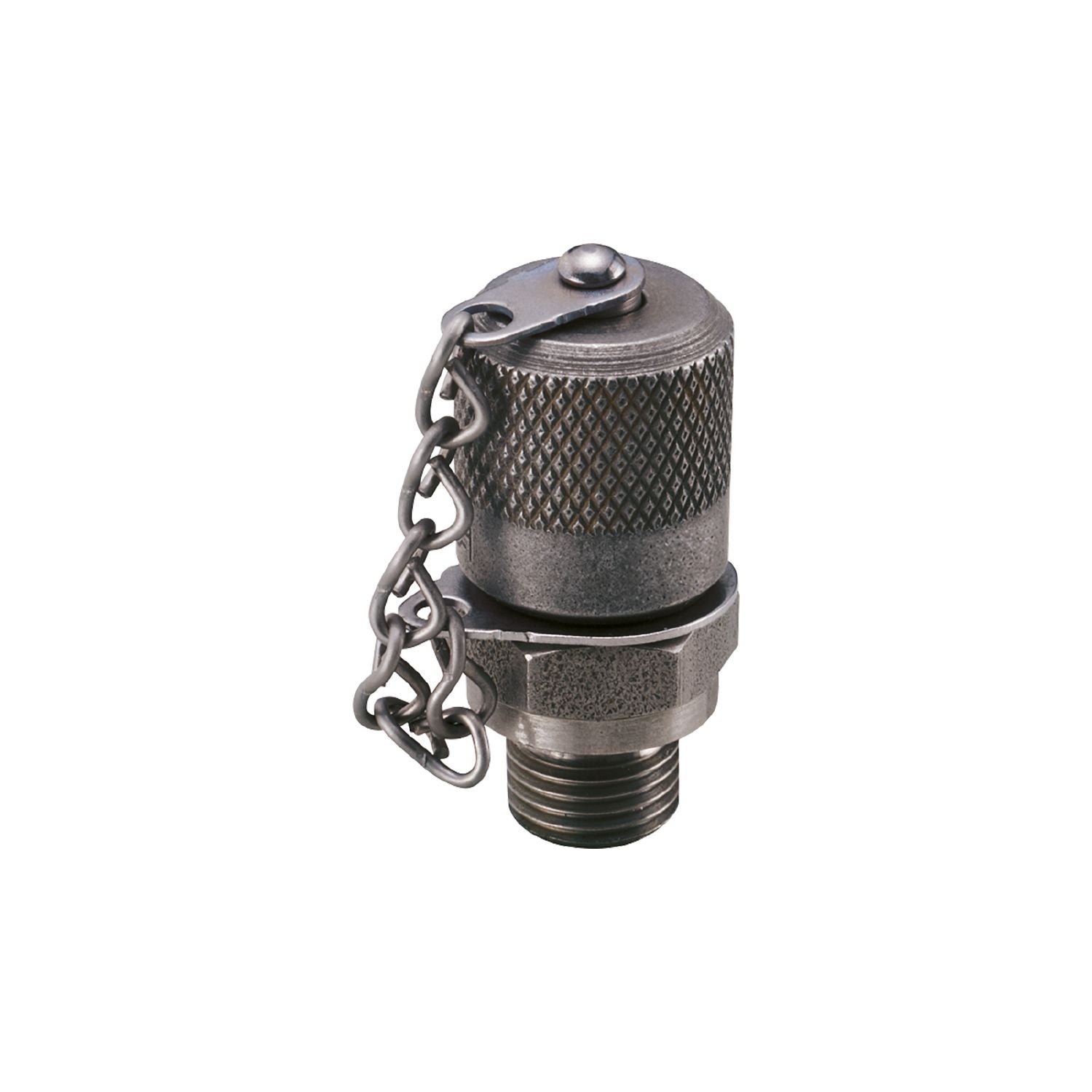

IFM E43331 - Screw coupling with cover plate SCREW COUPLING WITH COVER PLATE 0,3MM

With hydraulic bezel for reducing the volume flow at high system pressure.
For the installation of the oil particle monitor in pipes.
Very high pressure rating.
With Minimess process connection.
Robust design for use in harsh industrial environments

Pressure rating [bar]	630

Operating conditions

Ambient temperature [°C]	-10...60

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	76.2
Materials	socket housing: steel (1.0718); surface characteristics: zinc / nickel grey; Sealing: NBR
Sensor connection	G 1/4
Process connection	M16 x 2 Minimess

Pack quantity	1 pcs.
