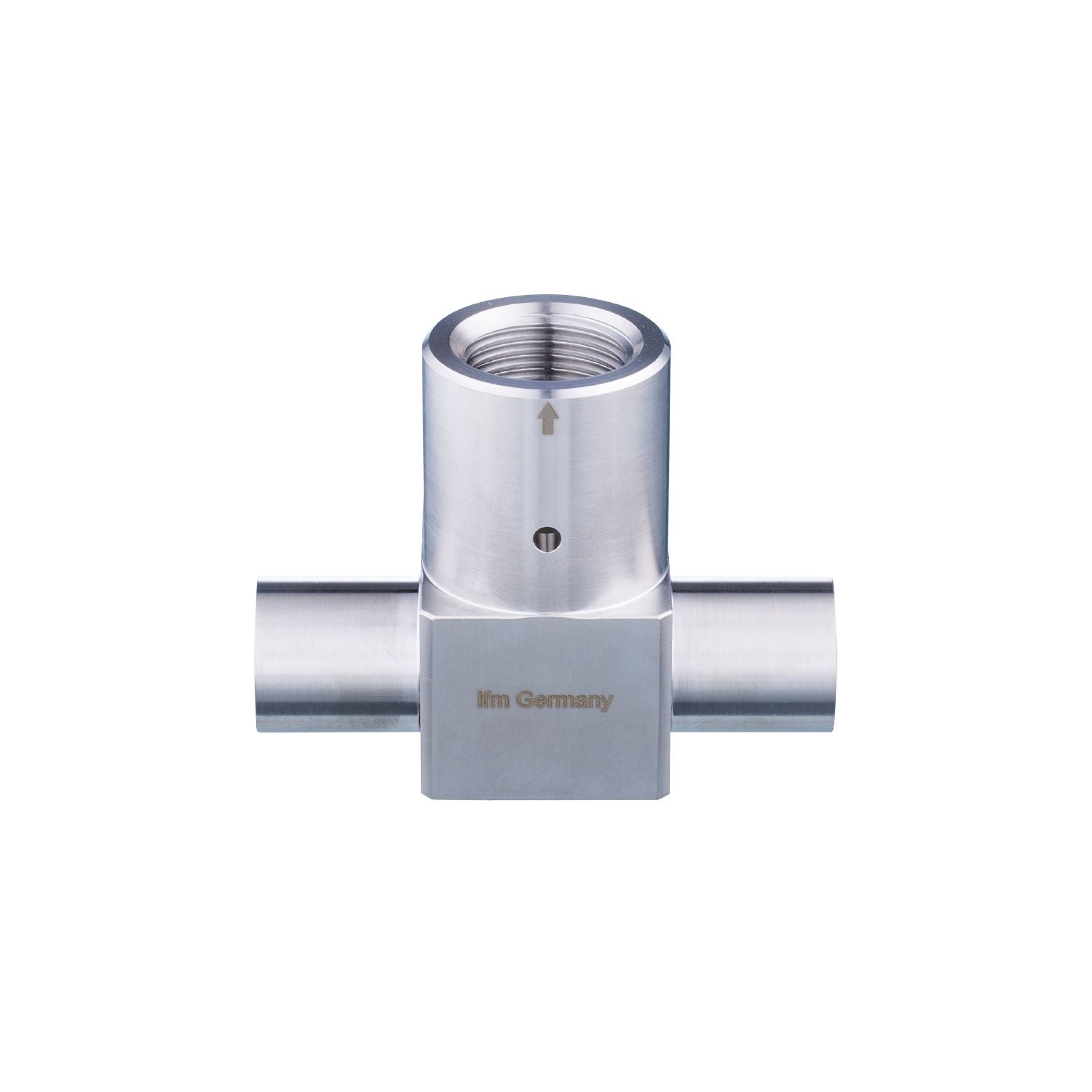

IFM E43364 - T-piece T-ADAPT G1/2 3/4" (ASME)

Safe installation of process sensors in pipes.
For use in industrial and hygienic applications.
Robust stainless steel housing

Pressure rating [bar]	25
Note on pressure rating	applies to the connection sensor/adapter higher pressure ranges on request

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	168.5
Materials	stainless steel (1.4435 / 316L)
Sensor connection	G 1/2 sealing cone
Process connection	welding adapter ASME - 3/4"; (Ø 15,75mm x 1,65 mm)
Surface characteristics Ra/Rz of the wetted parts	0.8 / 4

Pack quantity	1 pcs.
