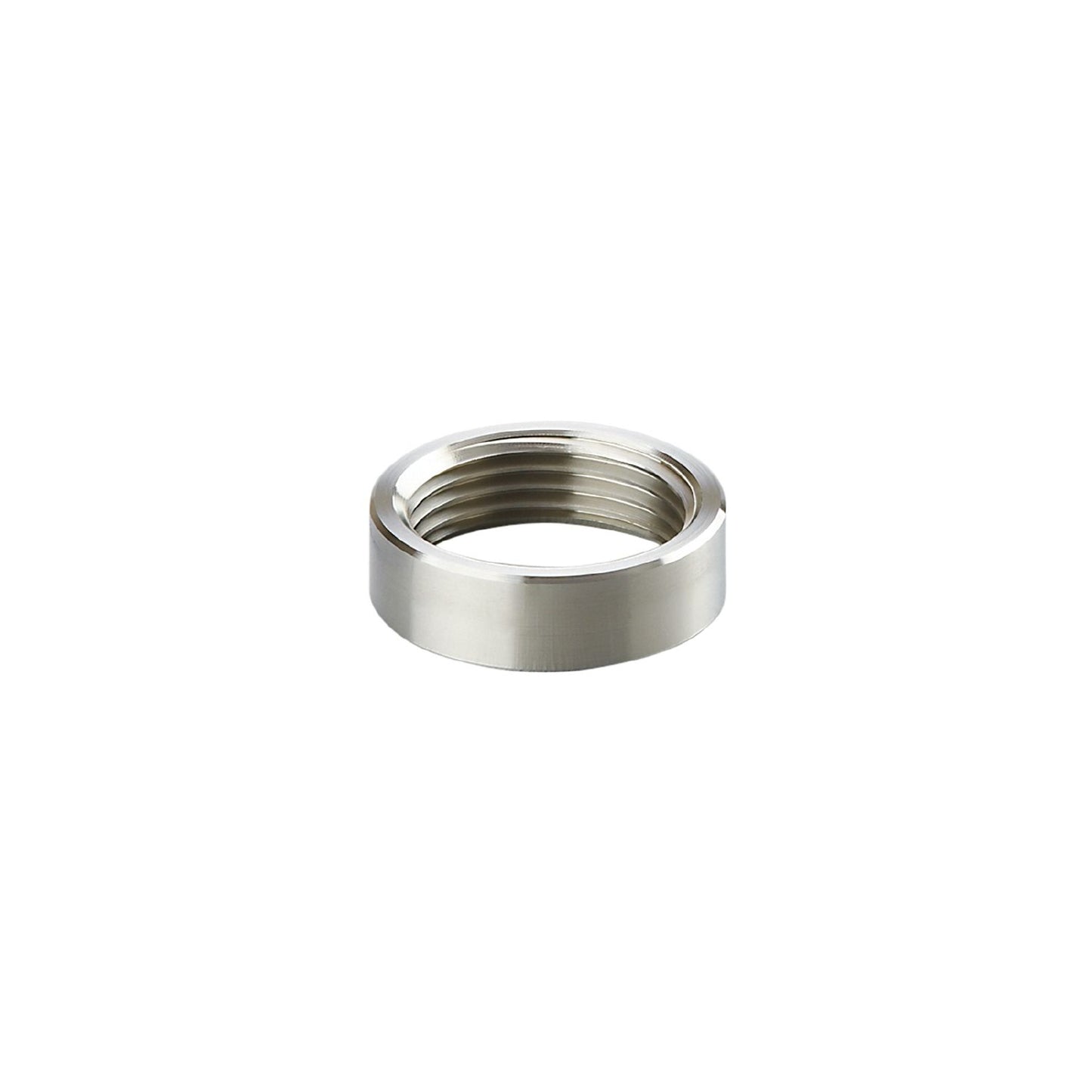

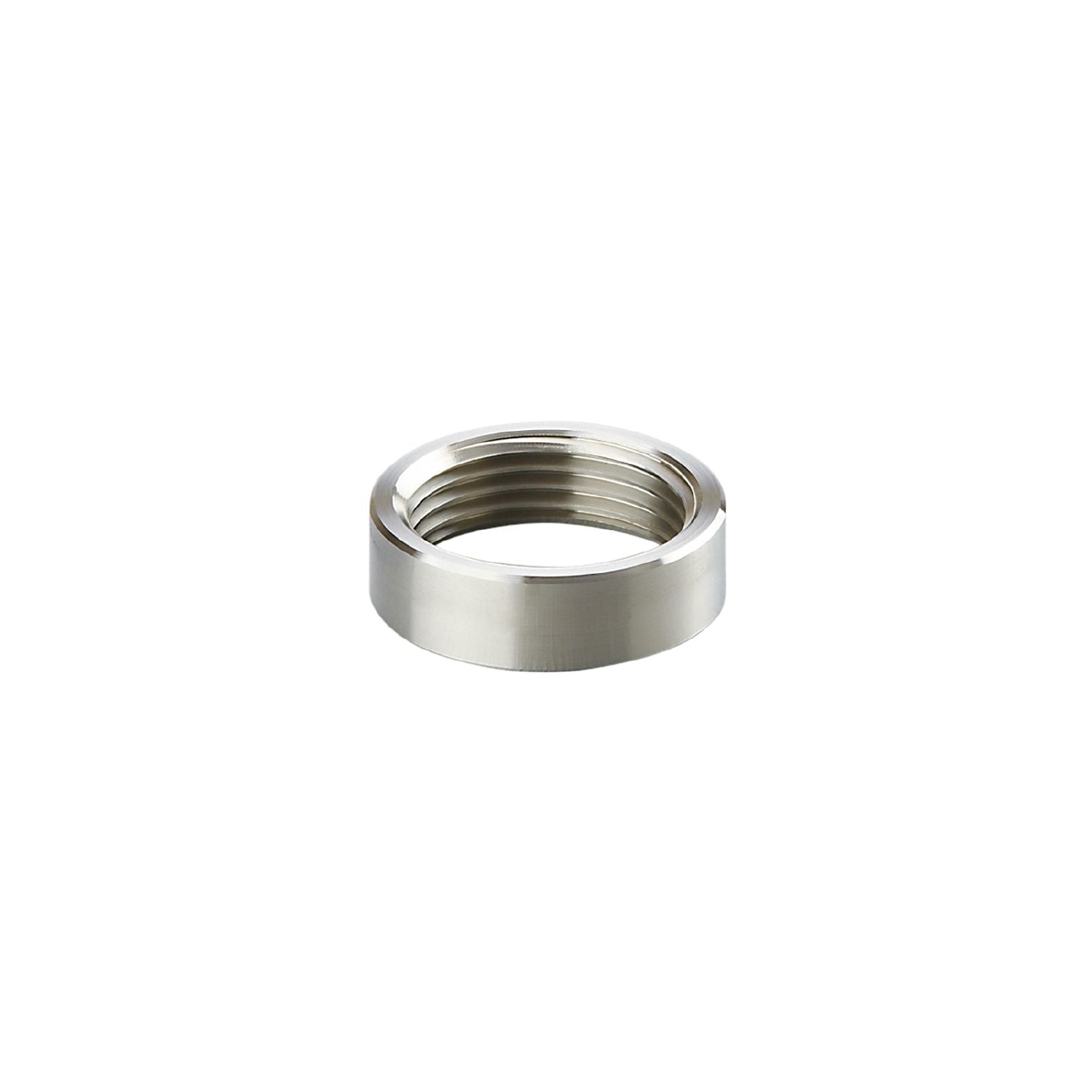

IFM E43379 - Welding adapter for process sensors ADAPT G3/4 - WELDING SOCKET

For the installation of level sensors with guided wave radar in containers.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating.
For use in industrial environments

Pressure rating [bar]	50
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	21.6
Materials	stainless steel (1.4571/316Ti )
Sensor connection	threaded connection G 3/4 internal thread
Process connection	welding adapter Ø 31.8 mm

Pack quantity	1 pcs.
