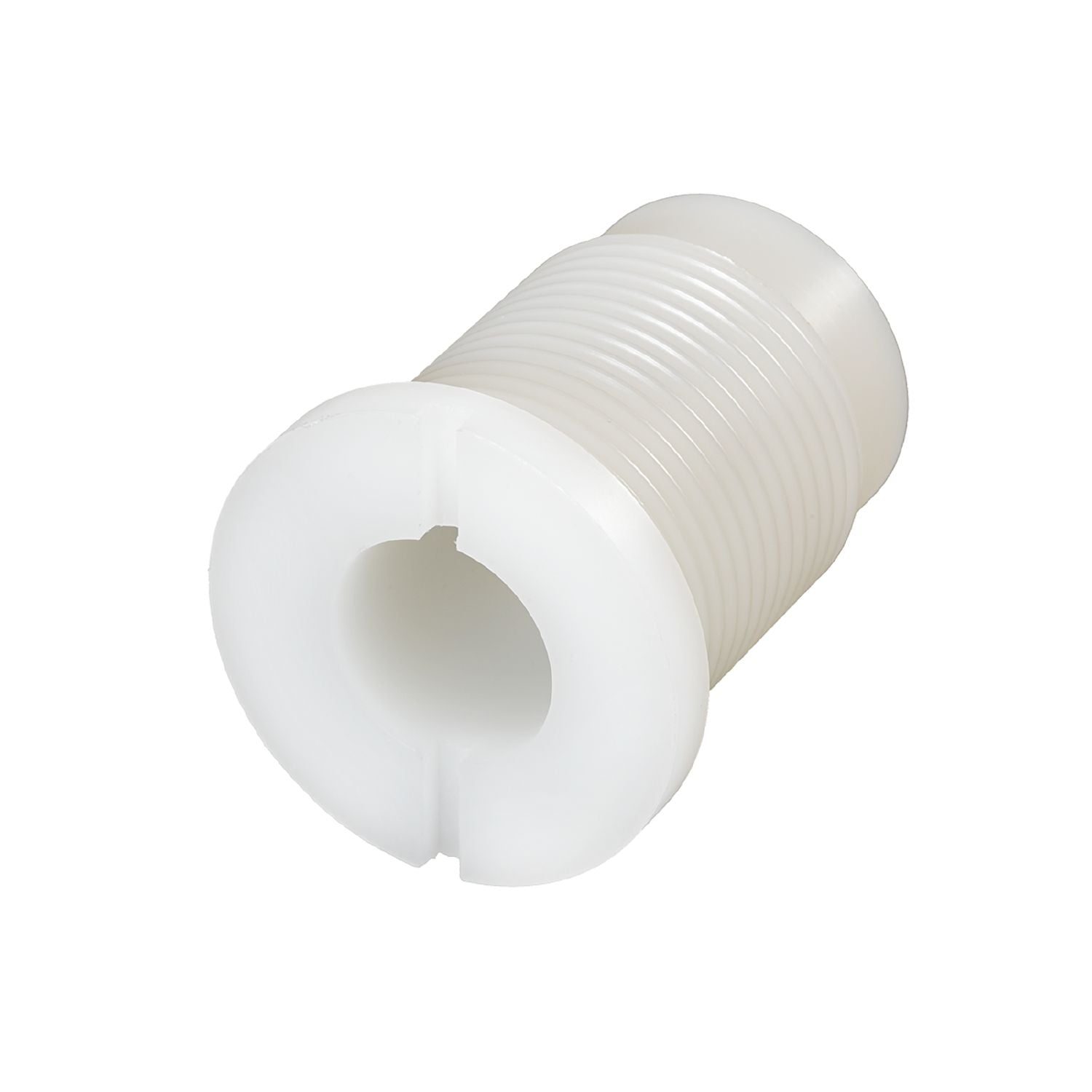

IFM E43900 - Mounting adapter for capacitive sensors MOUNTING ADAPTER G3/4",POM

Reliable installation in a vessel wall.
Efficient protection against soiling, impact and shock.
For level detection with capacitive sensors in containers and tanks.
High pressure rating.
Use in high medium temperatures

Pressure rating [bar]	8

Operating conditions

Ambient temperature [°C]	-25...80

Weight [g]	22
Dimensions [mm]	G 3/4 / L = 50
Thread designation	G 3/4
Materials	Adapter: POM
Tightening torque [Nm]	5
Sensor connection	threaded connection M18 x 1 internal thread
Process connection	threaded connection G 3/4 external thread

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43900-00 — 26.11.2008 —
