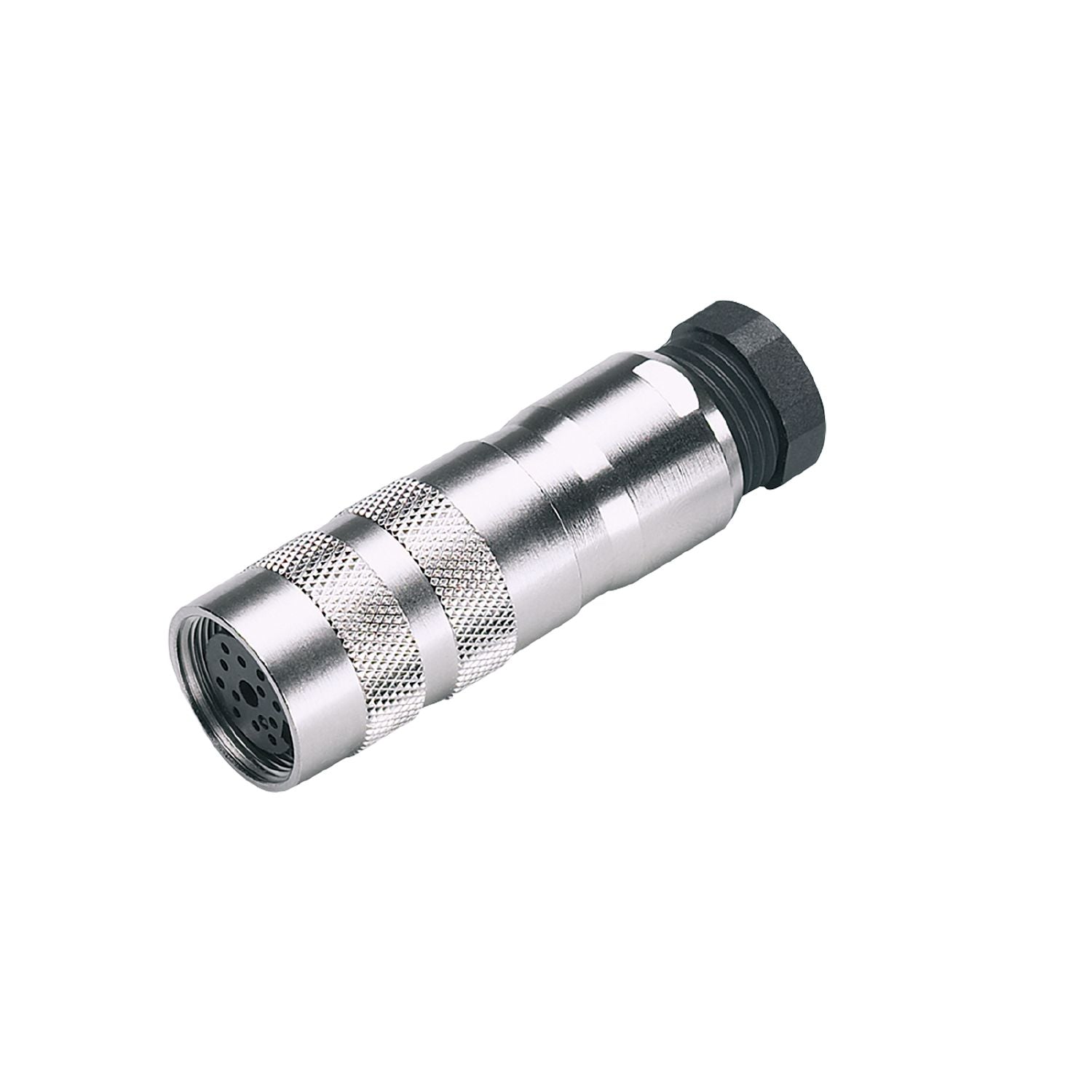

IFM E60174 - Wirable socket SDOGJ120MSLFKPG

For incremental encoders with 12-pole M18 connector.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection due to soldering.
Robust metal version

Operating voltage [V]	4.5...30 DC

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	55.3
Dimensions [mm]	18 x 18 x 60
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	soldering: ...0.25 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x M18, straight; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated
