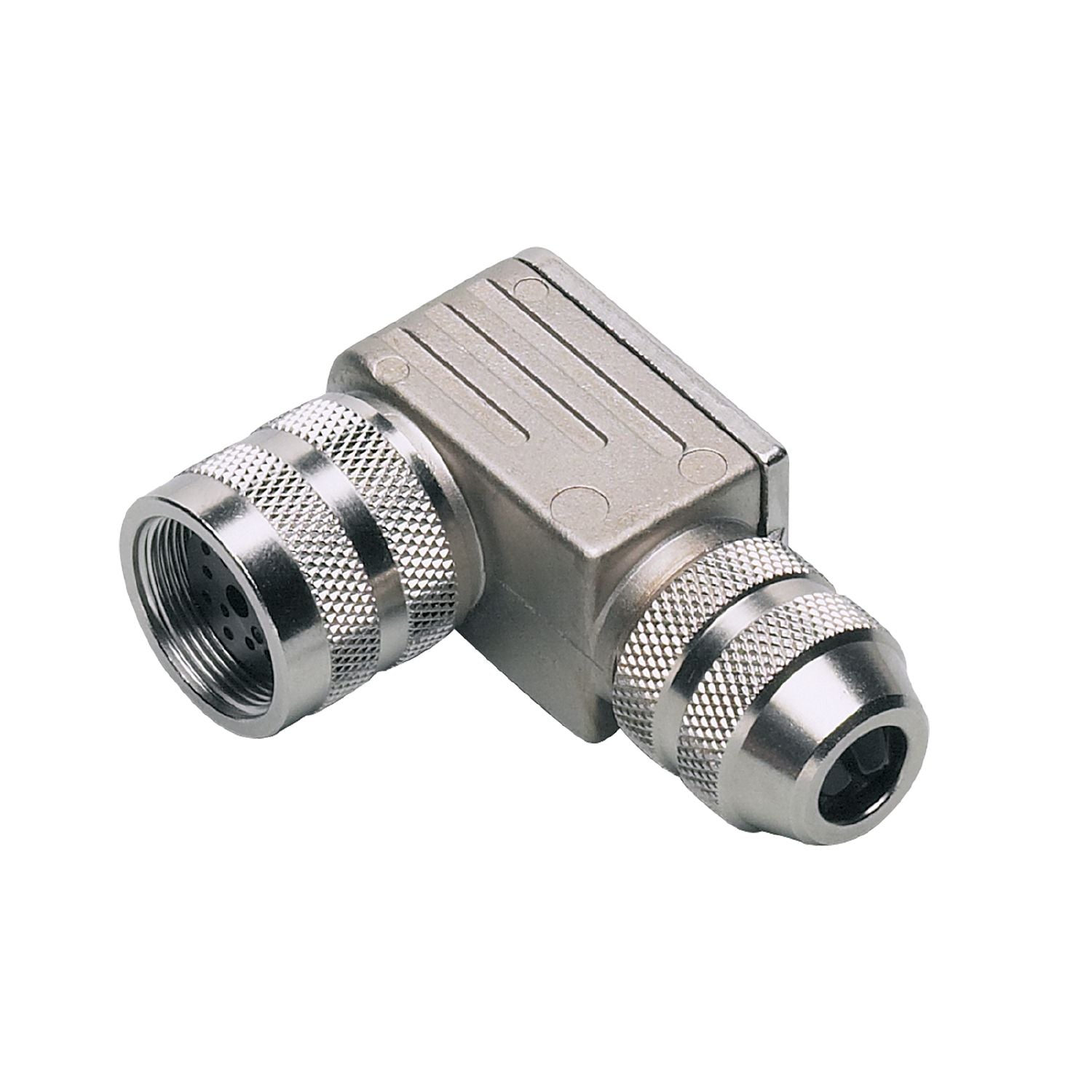

IFM E60175 - Wirable socket SDOAJ120MSLFKPG

Angled type for use where space is restricted.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
For incremental encoders with 12-pole M18 connector

Operating voltage [V]	4.5...30 DC

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	69.4
Dimensions [mm]	37 x 20 x 53
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	soldering: ...0.25 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x M18, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated
