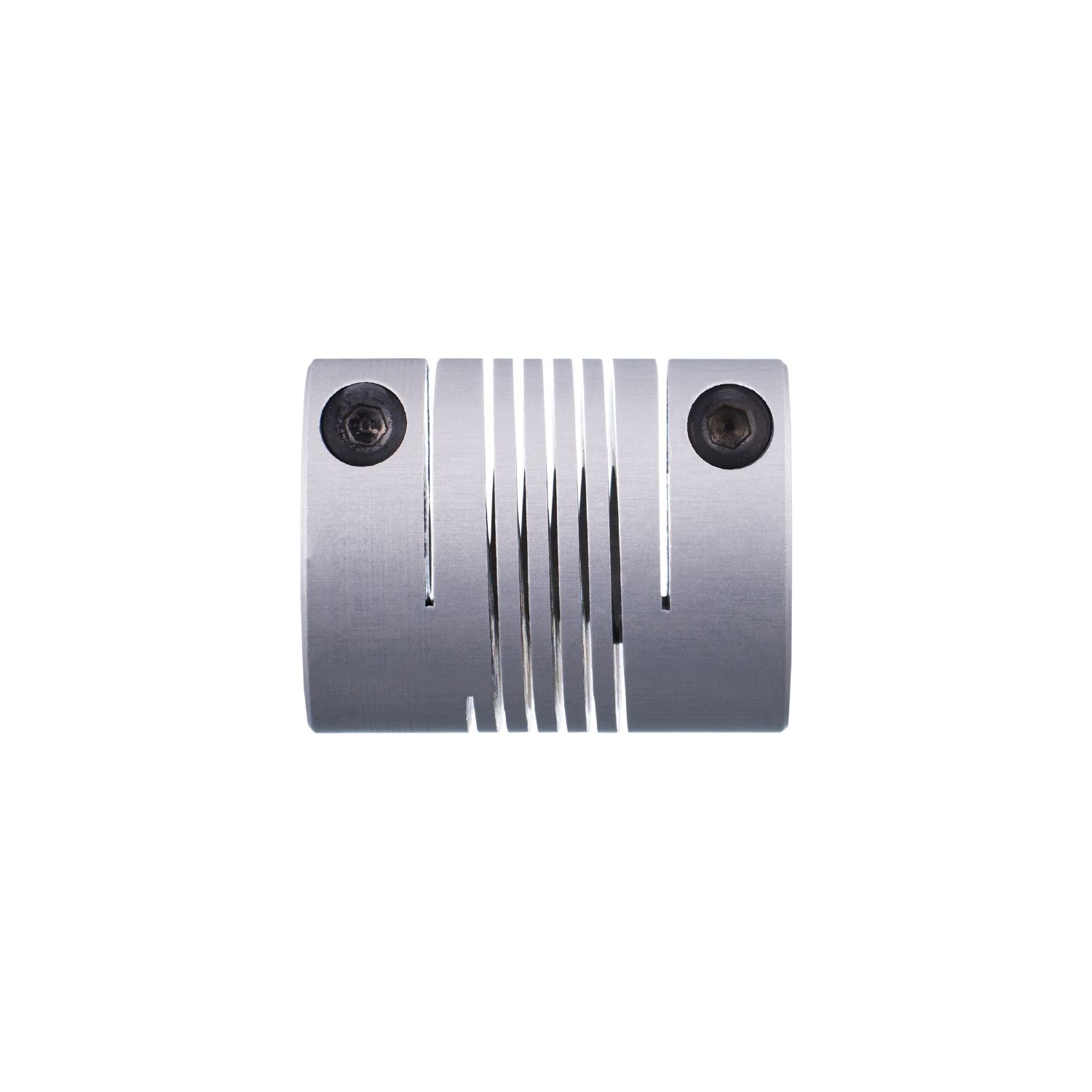

IFM E60207 - Flexible coupling for encoders COUPLING 25-6-95-32-KV

Clearance-free transmission of rotary movements.
Efficient vibration damping.
Excellent compensation of alignment errors.
Low rigidity of the torsion spring.
Small restoring forces

Weight [g]	34
Dimensions [mm]	Ø 25 / L = 32
Materials	aluminium
Tightening torque [Nm]	tightening torque screws: 120 Ncm
External diameter D [mm]	25
Inside diameter 1 [mm]	6
Inside diameter 2 [mm]	9,525 mm / 3/8" / 3/8 inch
Depth of the clamping hub [mm]	8
Clamping screw [mm]	M4 x 12 - ISO 4762 (2x)
Length [mm]	32
Max. revolution, mechanical [U/min]	6000
Max. axial shaft misalignment [mm]	± 0,5
Max. radial shaft misalignment [mm]	± 0,35
Max. angular displacement [°]	± 4,0

Remarks	The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C. The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.
Pack quantity	1 pcs.
