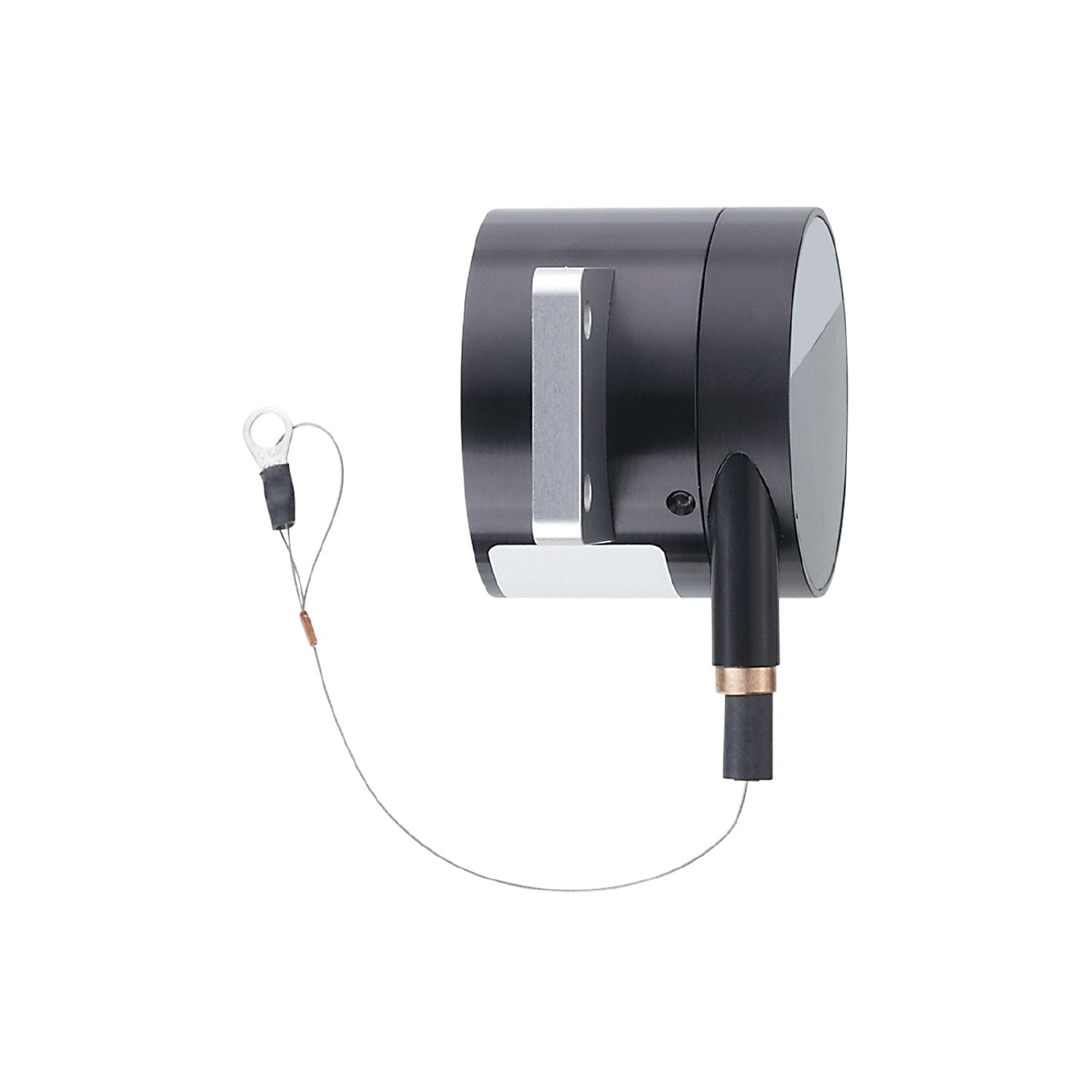

IFM E61439 - draw-wire mechanism for encoders DRAW WIRE 1900

Shaft design	solid shaft
Shaft diameter [mm]	6

Design	for encoders with 58 mm synchro flange and 6 mm solid shaft

Accuracy / deviations

Accuracy	± 0.02 % FSO
Repeatability	± 0,006 %FSO

Operating conditions

Ambient temperature [°C]	-20...85
Storage temperature [°C]	-40...85
Storage humidity [%]	5...95;(non condensing)

Tests / approvals

Shock resistance	IEC628-2-27 50 g / 10 ms
Vibration resistance	IEC68-2-6 20 g / 20..200 Hz

Weight [g]	598.5
Top flange diameter [mm]	58
Materials	housing: aluminium; wire: stainless steel polyamide coated
Shaft design	solid shaft
Shaft diameter [mm]	6
Max. measuring length [mm]	1900
Wire drum circumference [mm]	150
Wire diameter [mm]	0.45
Wire connection	5,5;(eyelet)
Wire properties	max. speed of wire displacement [m /s] 2 max. wire acceleration [g] 12 max. extension force [N] 5 min. retraction force [N] 3,5
Fixing flange	synchro-flange

Pack quantity	1 pcs.

Diagrams and graphs

Installation instruction
