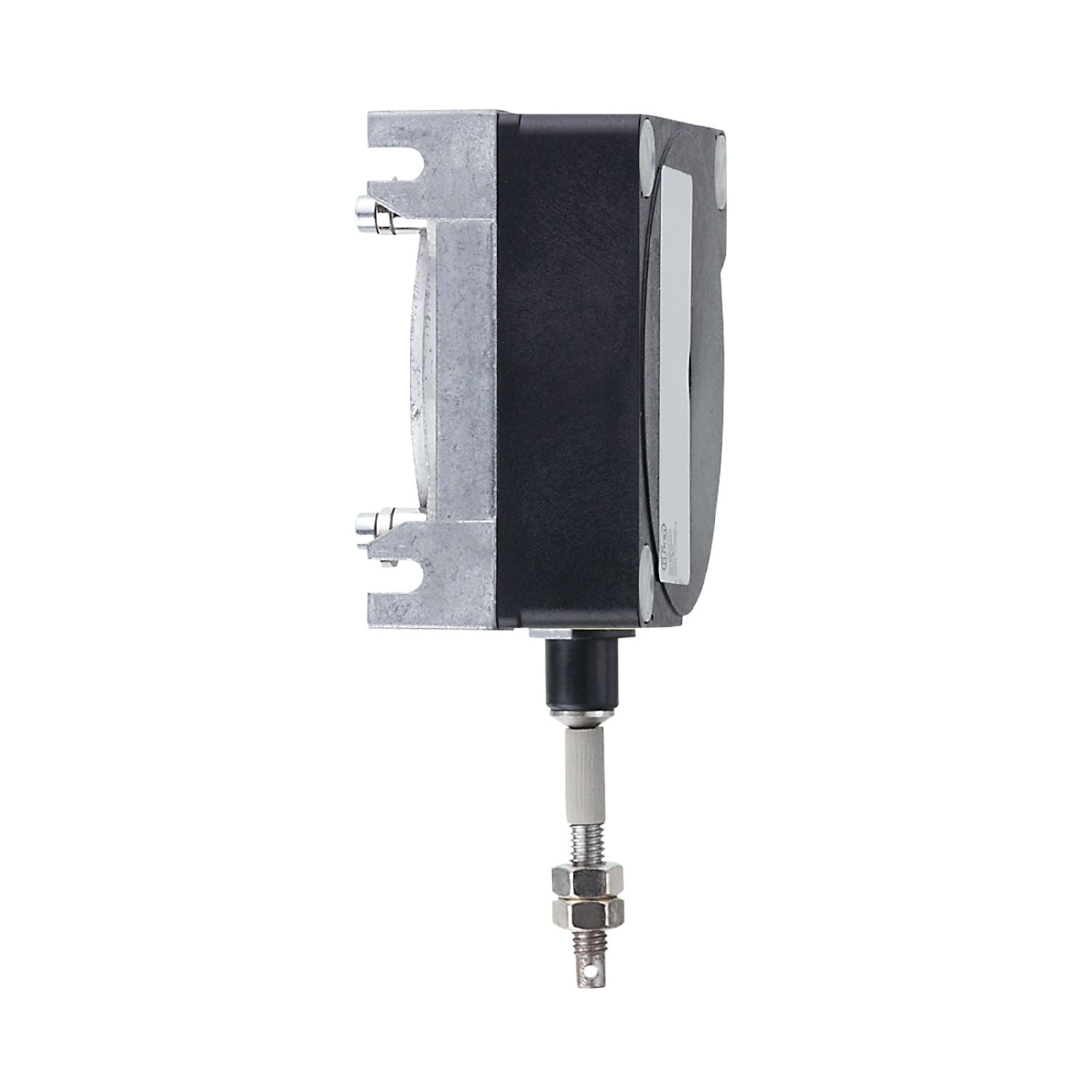

IFM E61441 - draw-wire mechanism for encoders DRAW WIRE 3000

Shaft design	solid shaft
Shaft diameter [mm]	6

Design	for encoders with 58 mm synchro flange and 6 mm solid shaft

Accuracy / deviations

Accuracy	± 0.012 % FSO
Repeatability	± 0,005 %FSO

Operating conditions

Ambient temperature [°C]	-40...80
Storage temperature [°C]	-40...80
Storage humidity [%]	5...95;(non condensing)

Weight [g]	598.5
Top flange diameter [mm]	58
Materials	housing: diecast zinc / plastic; wire: stainless steel polyamide coated
Shaft design	solid shaft
Shaft diameter [mm]	6
Max. measuring length [mm]	3000
Wire drum circumference [mm]	200
Wire diameter [mm]	0.87
Wire connection	M6
Wire properties	max. speed of wire displacement [m /s] 0,8 max. wire acceleration [g] 1 max. extension force [N] 3 min. retraction force [N] 2,5
Fixing flange	synchro-flange

Pack quantity	1 pcs.
