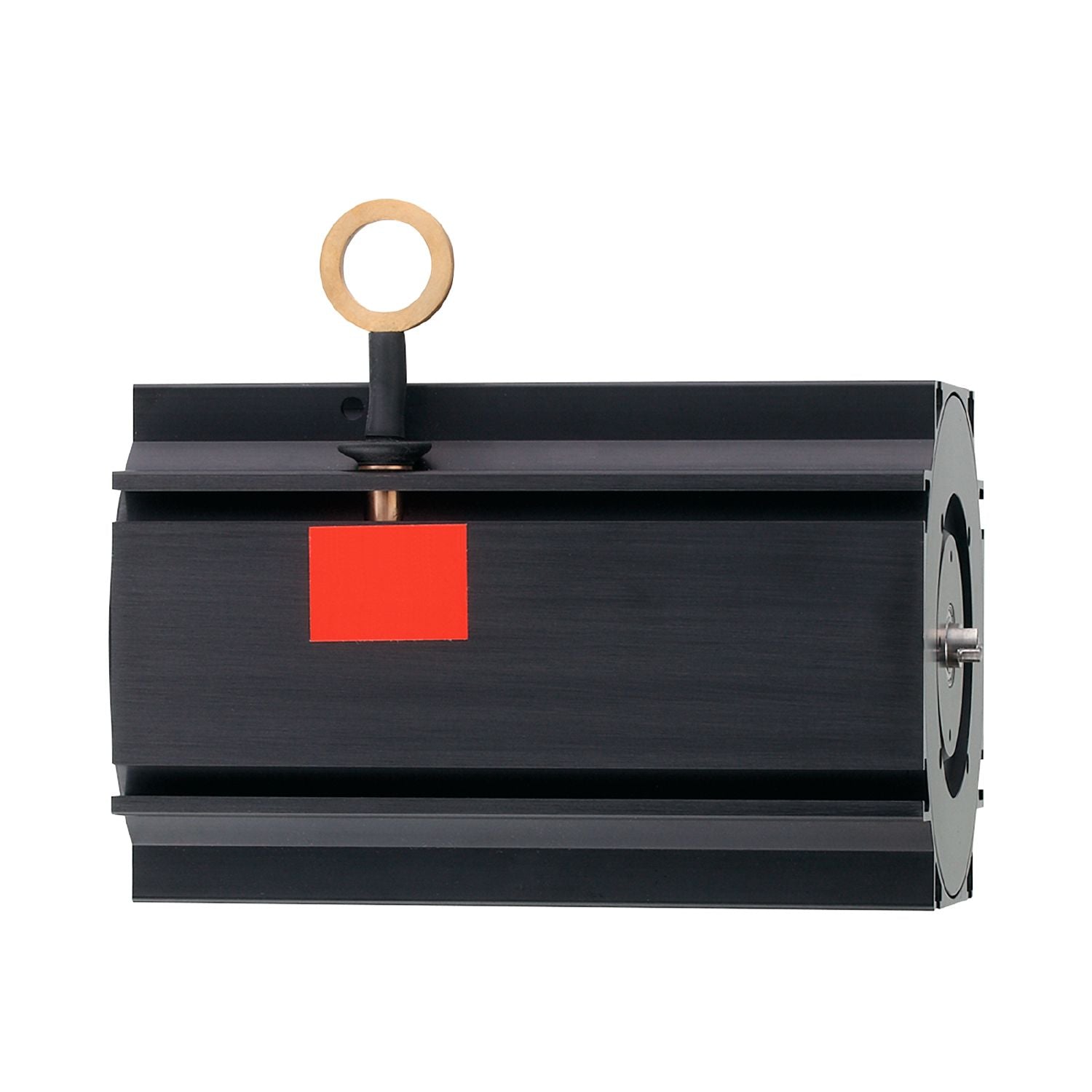

IFM E61444 - draw-wire mechanism for encoders DRAW WIRE 15000

Shaft design	solid shaft
Shaft diameter [mm]	6

Design	for encoders with 58 mm synchro flange and 6 mm solid shaft

Accuracy / deviations

Accuracy	± 0.01 % FSO
Repeatability	± 0,001 %FSO

Operating conditions

Ambient temperature [°C]	-20...80
Storage temperature [°C]	-40...80
Storage humidity [%]	5...95;(non condensing)

Tests / approvals

Shock resistance	IEC628-2-27 50 g / 20 ms
Vibration resistance	IEC68-2-6 20 g / 20..200 Hz

Weight [g]	3824.8
Dimensions [mm]	115 x 180.7 x 115
Top flange diameter [mm]	58
Materials	housing: aluminium anodised; wire: stainless steel polyamide coated
Shaft design	solid shaft
Shaft diameter [mm]	6
Max. measuring length [mm]	15000
Wire drum circumference [mm]	315
Wire diameter [mm]	1
Wire connection	20,2;(eyelet)
Wire properties	max. speed of wire displacement [m /s] 2 max. wire acceleration [g] 3 max. extension force [N] 25 min. retraction force [N] 8
Fixing flange	synchro-flange

Accessories

Items supplied	screws: 2 x M4 cylinder screws: 4 x M4 washers synchro-flange Coupling for encoders

Pack quantity	1 pcs.

Diagrams and graphs

	Installation instruction
