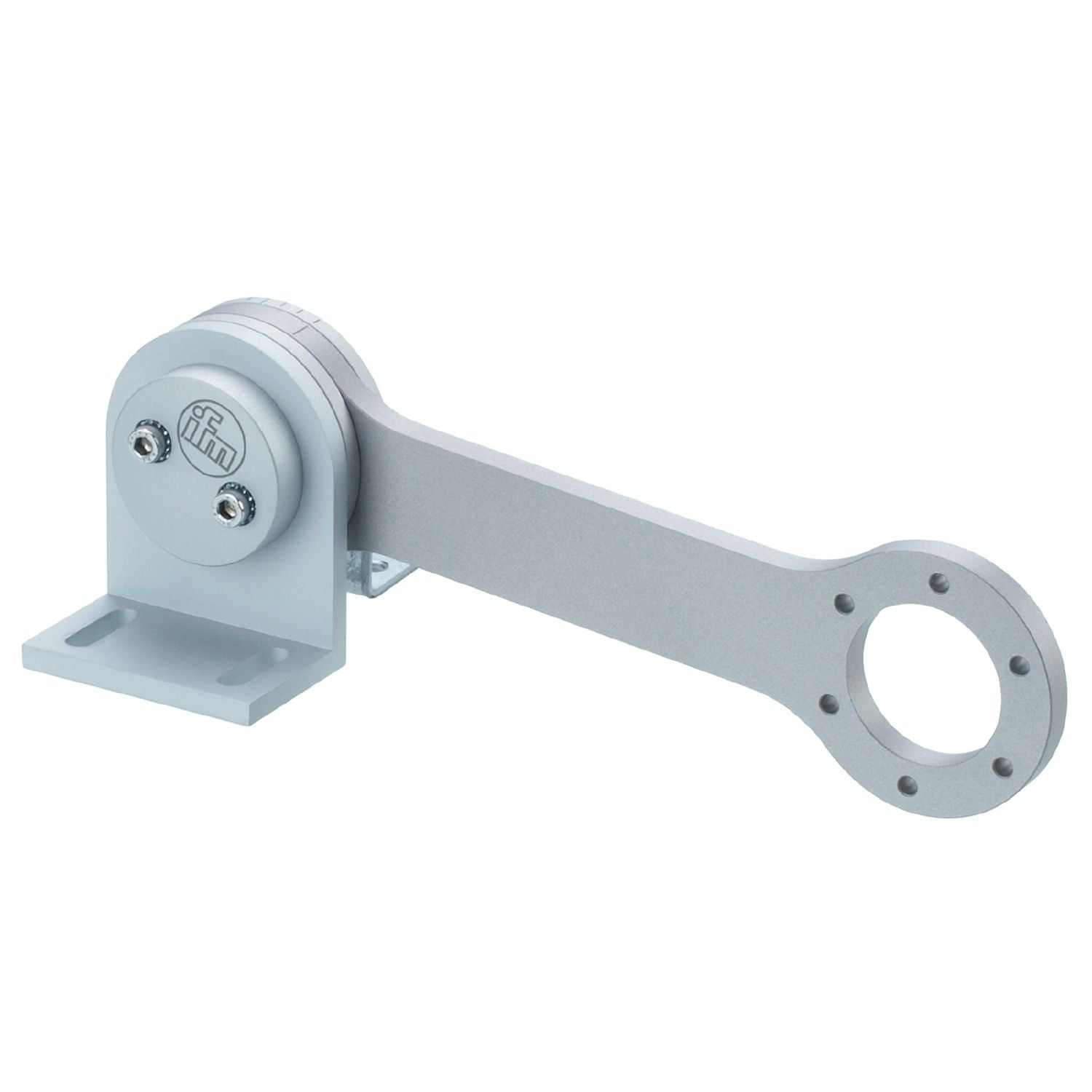

IFM E61446 - spring arm for encoders ENCODER SPRING ARM 170

For use of encoders in combination with measuring wheels.
Continuously adjustable pretension.
Laser engraved scale as setting aid.
Modular mounting concept.
Allows for damping direction change for upward or downward motions

Design	for encoder with clamp flange

Operating conditions

Ambient temperature [°C]	-30...60

Weight [g]	717.1
Installation instruction	can be mounted from both sides
Dimensions [mm]	230 x 65.9 x 75
External diameter [mm]	340
Materials	aluminium anodised; Spring: stainless steel (1.4310 / 301)
Tightening torque [Nm]	4.3
Max. angular displacement [°]	45
Activation force [N]	5...20

Remarks	With scale
Pack quantity	1 pcs.

Diagrams and graphs

Installation instruction

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E61446-00 — 26.11.2020 —
