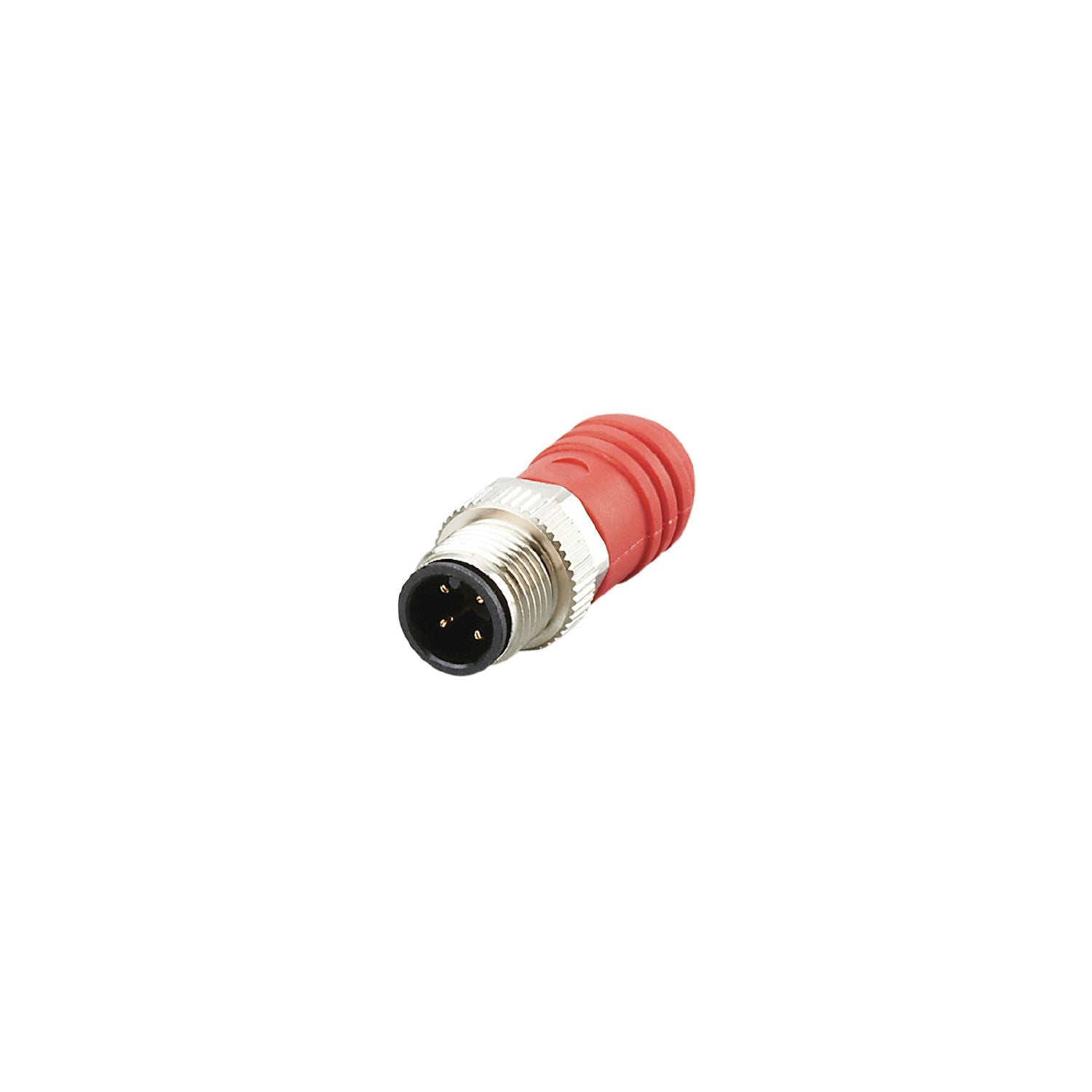

IFM E7008S - Bridging plug for AS-Interface safety modules Short-circuit plug f.AC509S

For use in combination with AS-Interface safety modules.
For simulating a short circuit.
High protection rating for the requirements of harsh industrial environments.
Easy connection via the tried-and-tested M12 connector.
Wide operating temperature range

Application	bridging plug for safe input module

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	11.3
Dimensions [mm]	15 x 15 x 37
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: PUR; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E7008S-00 — 09.02.2017 —
