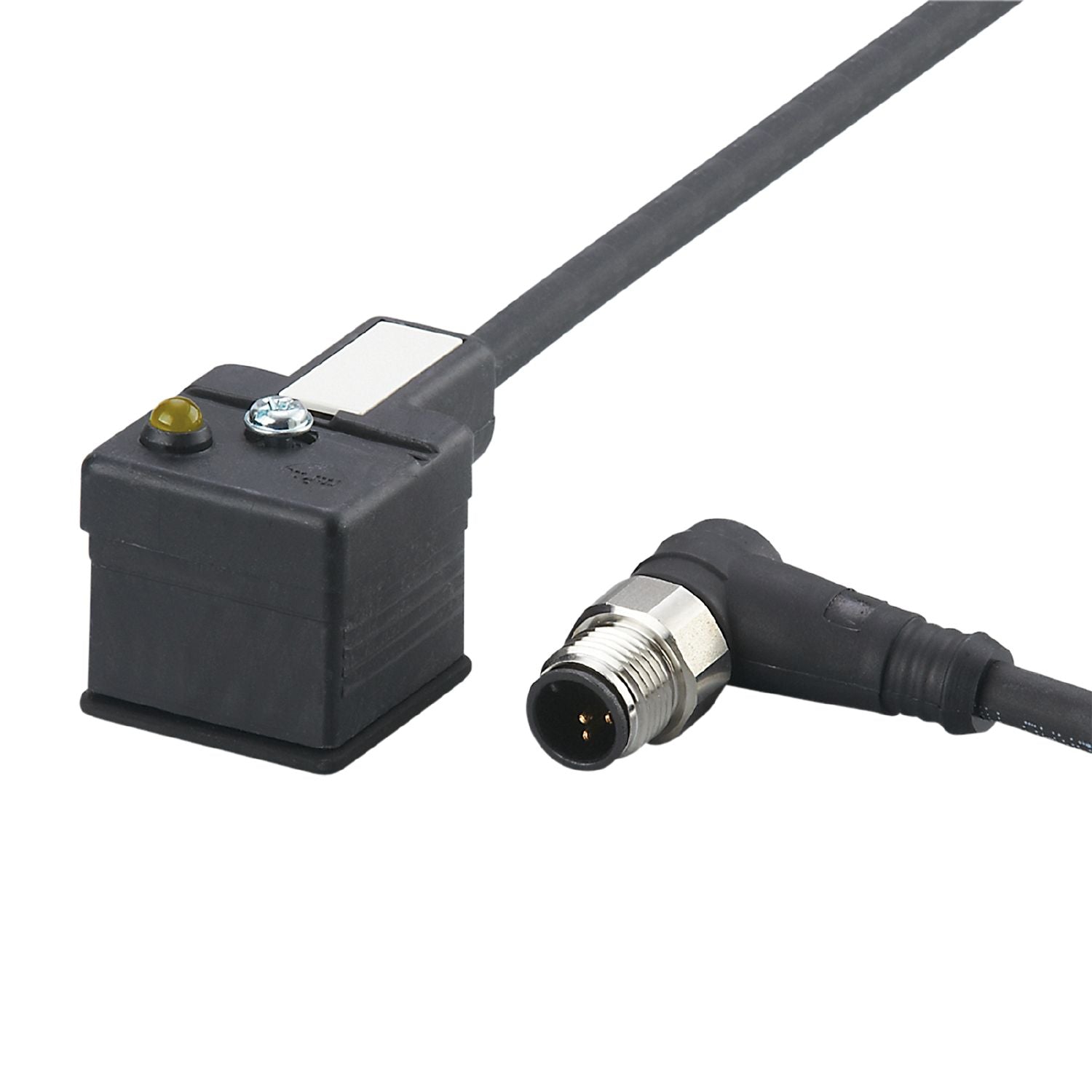

IFM E70129 - Jumper cable with valve plug VDAA0401--S0002A03STAH030MSS

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Clearly visible LED

Special feature	Halogen-free

Operating voltage [V]	< 24 AC/DC

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	138.5
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Accessories

Items supplied	screw panel for labelling

Pack quantity	1 pcs.

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated

Electrical connection

Connection	Cable: 2 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm )

Electrical connection - socket

	Connector: 1 x valve type A DIN, angled; Moulded body: PUR; Locking: brass, nickel-plated
