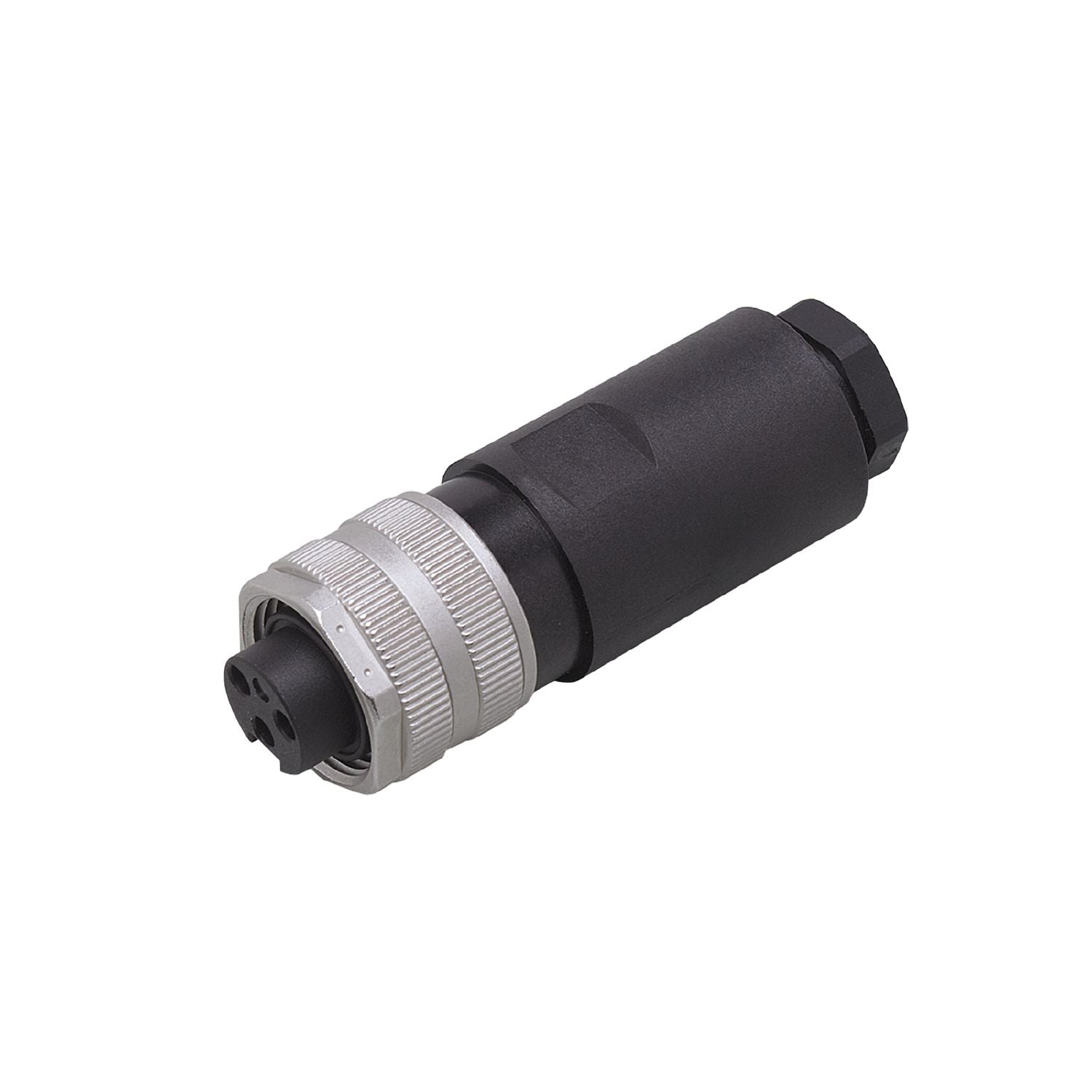

IFM E70170 - Wirable socket SDOGB030ZDSFKPG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Operating voltage [V]	< 300 AC/DC
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	54.2
Dimensions [mm]	27 x 27 x 83
Moulded-body material	PBT
Material nut	diecast zinc

Pack quantity	1 pcs.

Electrical connection

	terminals: ...1.5 mm²; Cable sheath: Ø 8...10 mm

Electrical connection - socket

Connection	Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70170-02 — 03.12.2021 —
