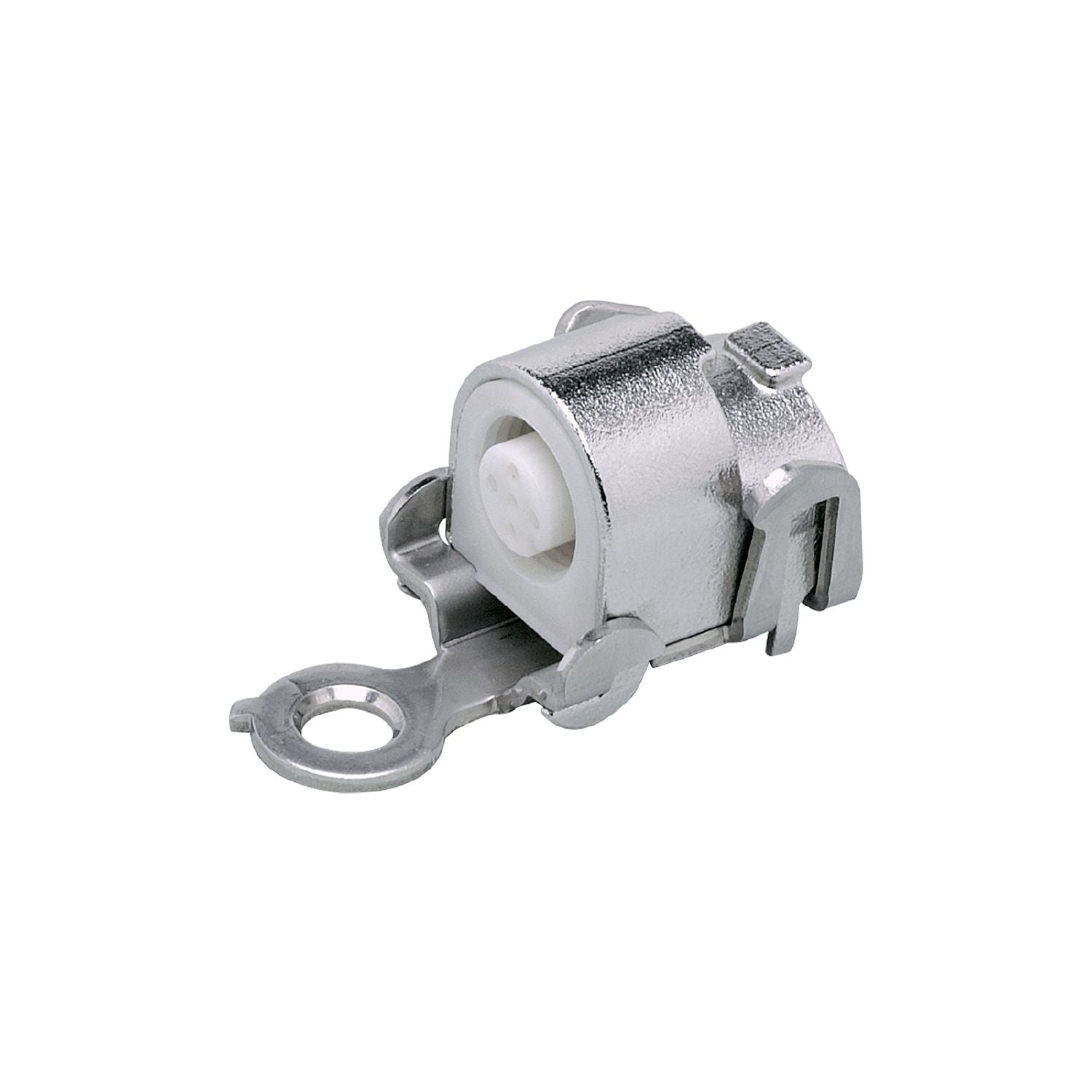

IFM E70455 - AS-Interface flat cable insulation displacement connector FC Splitter ye ProcessL

Design	AS-i

Operating voltage [V]	26.5...31.6 DC

Outputs

Max. current load outputs total [A]	2

Operating conditions

Ambient temperature [°C]	-30...80
Protection	IP 68; IP 69K

Tests / approvals

EMC	EN 61000-6-2

Weight [g]	47
Materials	metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM

Accessories

Accessories (optional)	Torque wrench:, E70390

Pack quantity	1 pcs.
