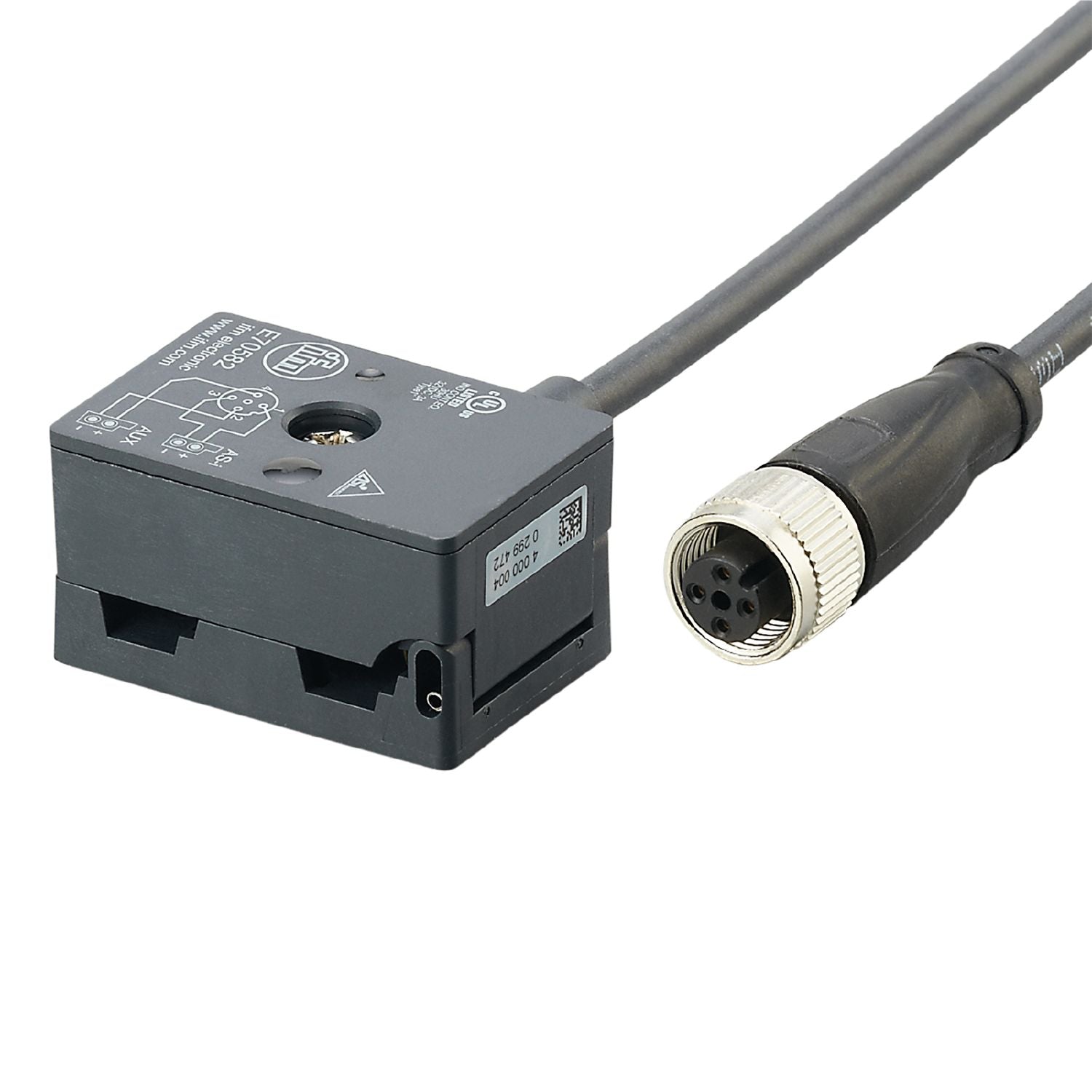

IFM E70582 - AS-Interface flat cable insulation displacement connector FC Splitter AS-i / AUX 1 m M12 UL

For transition from AS-i flat cable to M12 connector.
For extending the AS-i network by means of spurs.
Easy and quick connection due to insulation displacement technology.
High protection rating for the requirements of harsh industrial environments

Application	distribution of the AS-i voltage and the external 24 V supply to M12 socket

Protection class	III
Max. current load per module/slot [A]	4

Outputs

Electrical design	AS-i;(24V)

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 67

Weight [g]	89
Materials	housing: PBT / PC
Tightening torque [Nm]	1.65

Accessories

Accessories (optional)	flat cable end seal:, E70413 heat-shrink cap:, E70113

Remarks	The flat cable must not end in the splitter. Use a flat cable seal or heat-shrink cap for sealing.
Pack quantity	1 pcs.

Electrical connection

	Cable: 1 m, PUR, Ø 4.3 mm; 4 x 0.34 mm²
	Connector:M12; coding: A; Moulded body: PUR; Tightening torque: ...1.65 Nm
