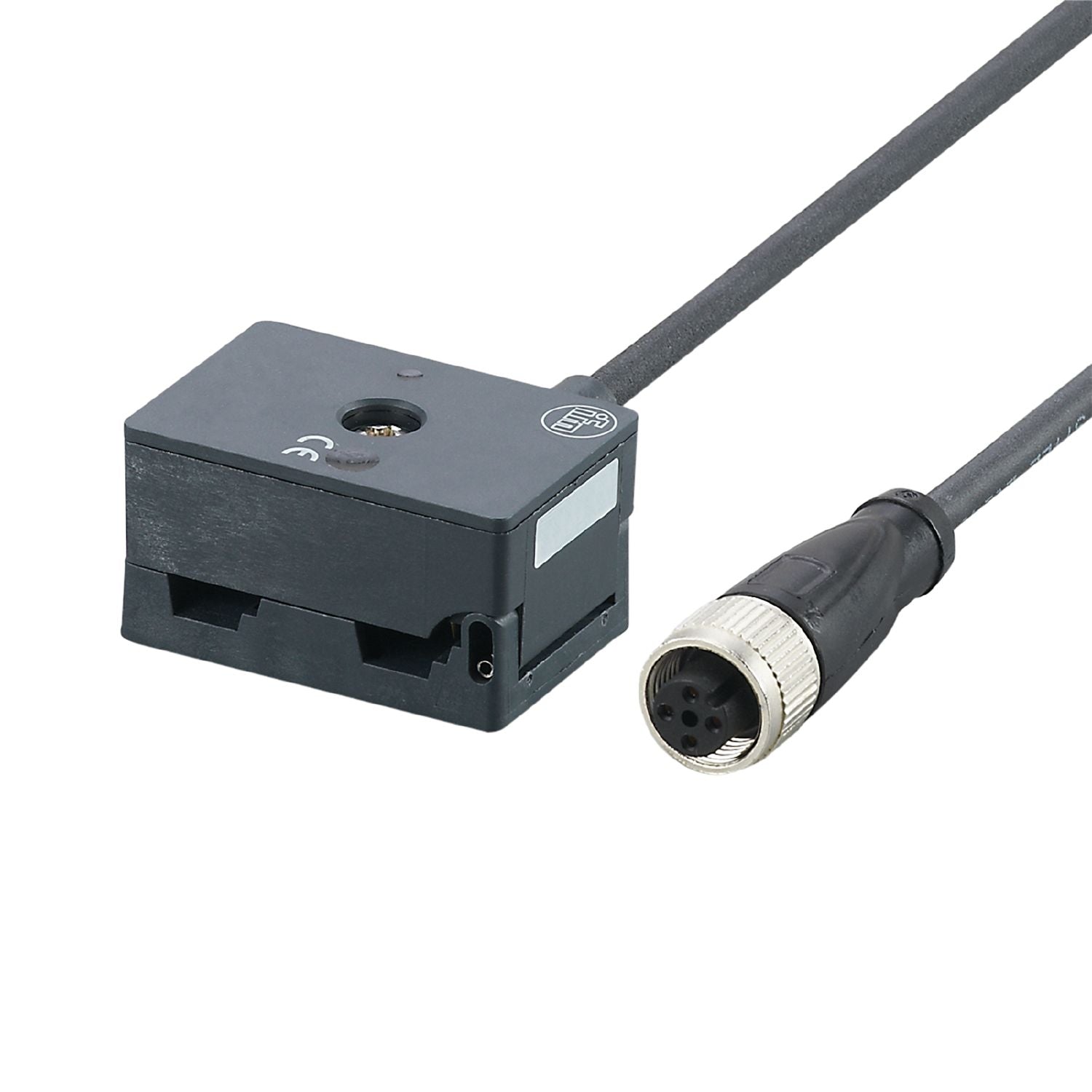

IFM E70583 - AS-Interface flat cable insulation displacement connector FC Splitter AS-i 0.6 m M12 UL

Application	distribution of the AS-i voltage to M12 socket

Protection class	III
Max. current load per module/slot [A]	4

Outputs

Electrical design	AS-i

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 67

Weight [g]	83.1
Materials	housing: PBT / PC
Tightening torque [Nm]	1.65

Accessories

Accessories (optional)	flat cable end seal:, E70413 heat-shrink cap:, E70113

Remarks	The flat cable must not end in the splitter. Use a flat cable seal or heat-shrink cap for sealing.
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.6 m, PUR, Ø 4.3 mm; 2 x 0.34 mm²
Connection	Connector:M12; coding: A; Moulded body: PUR
