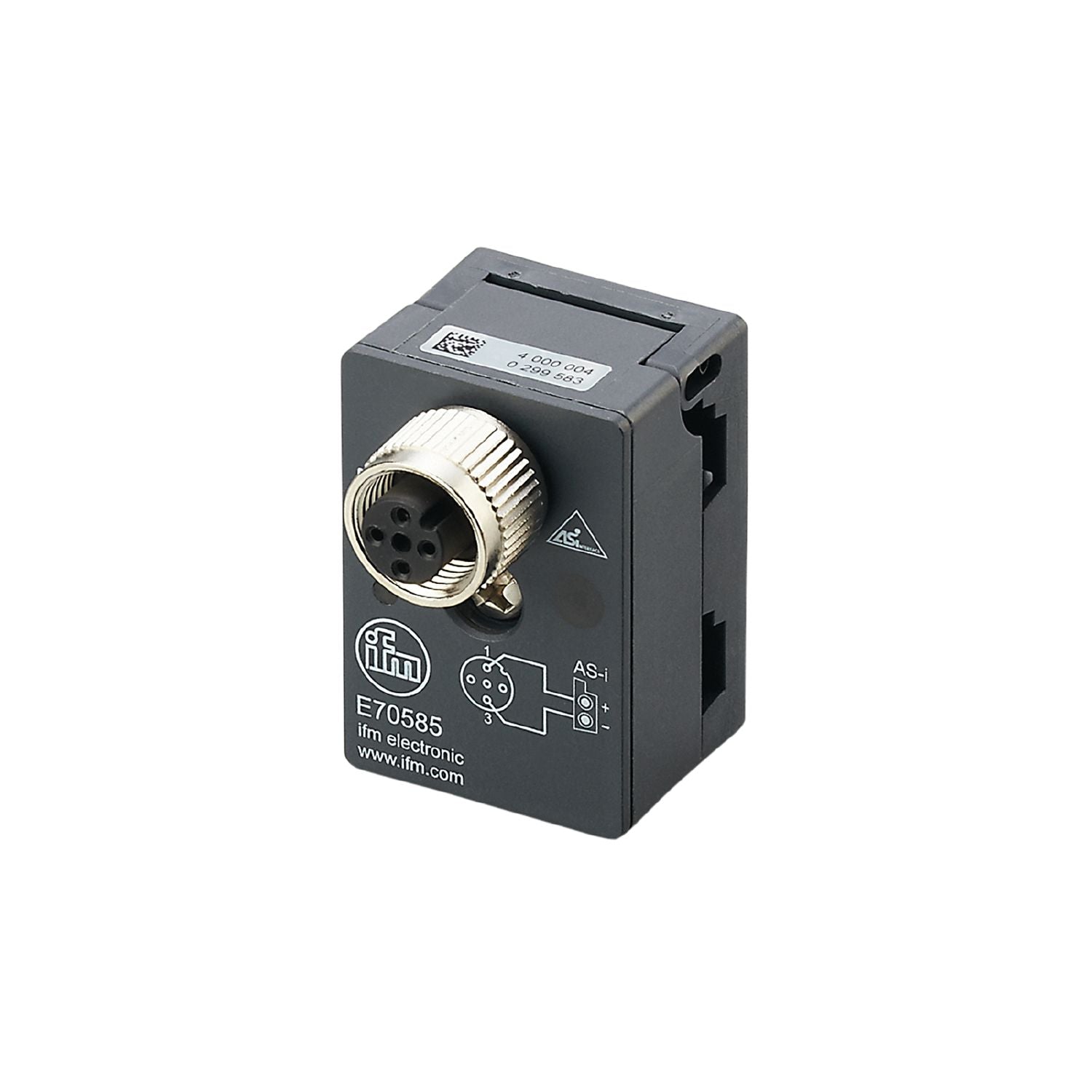

IFM E70585 - AS-Interface flat cable insulation displacement connector FC Splitter AS-i M12 FC top UL

For transition from AS-i flat cable to M12 connector.
For extending the AS-i network by means of spurs.
Easy and quick connection due to insulation displacement technology.
High protection rating for the requirements of harsh industrial environments

Protection class	III
Max. current load total [A]	4

Outputs

Electrical design	AS-i

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 67

Weight [g]	53.8
Materials	PBT / PC
Tightening torque [Nm]	1.65

Accessories

Accessories (optional)	flat cable end seal:, E70413 heat-shrink cap:, E70113

Remarks	The flat cable must not end in the splitter. Use a flat cable seal or heat-shrink cap for sealing. for direct connection of AS-i M8 modules and AS-i CompactModules M12
Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A
