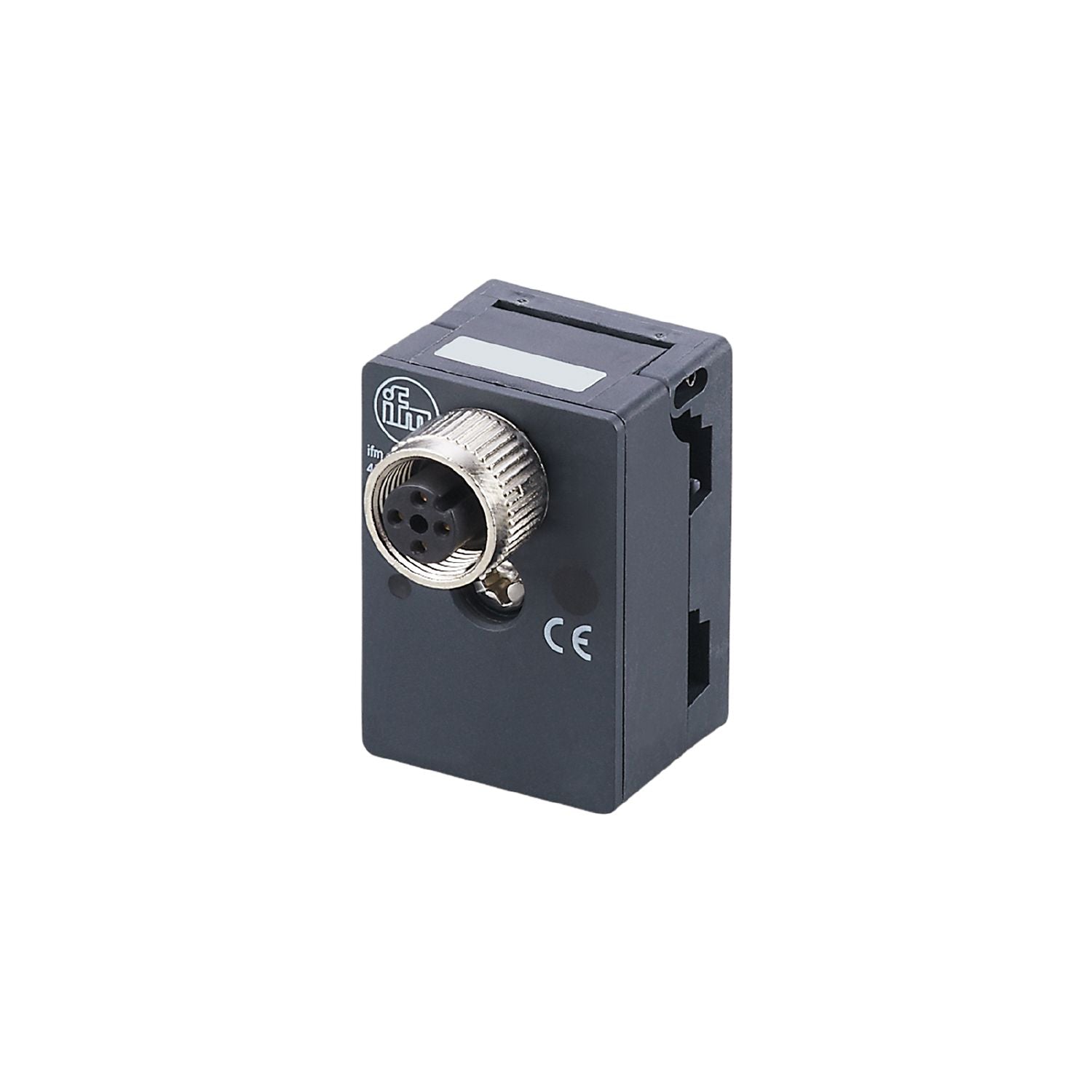

IFM E70587 - AS-Interface flat cable insulation displacement connector FC Splitter AS-i / AUX M12 UL

Protection class	III
Max. current load per module/slot [A]	4

Outputs

Electrical design	AS-i

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 67

Weight [g]	60.5
Materials	housing: PBT / PC; screw: stainless steel (1.4305 / 303)
Tightening torque [Nm]	< 1.65

Accessories

Accessories (optional)	flat cable end seal:, E70413 heat-shrink cap:, E70113

Remarks	The flat cable should not end in the splitter. Use a flat cable seal or heat-shrink cap for sealing.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector:M12; coding: A; Moulded body: PUR
