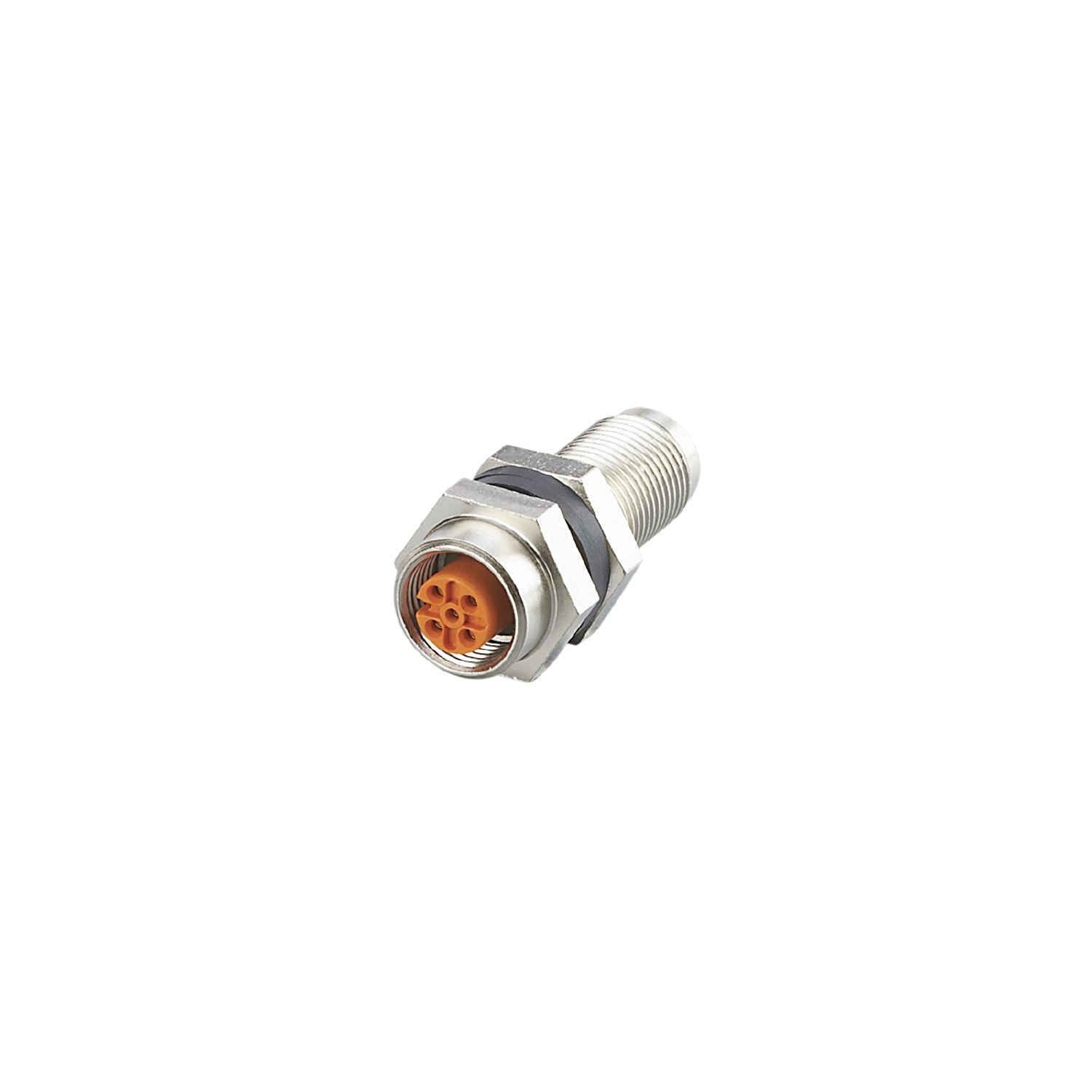

IFM E73009 - wall passage Wall passage stainless steel

Operating voltage [V]	< 60 AC/DC
Max. current load total [A]	8;(pin 1+3: 4 A; pin 2+4: 4 A)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 69K

Weight [g]	29.5
Materials	stainless steel (1.4305 / 303); Sealing: EPDM
Moulded-body material	stainless steel (1.4305 / 303)
Tightening torque [Nm]	1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: stainless steel (1.4305 / 303)

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: stainless steel (1.4305 / 303)
