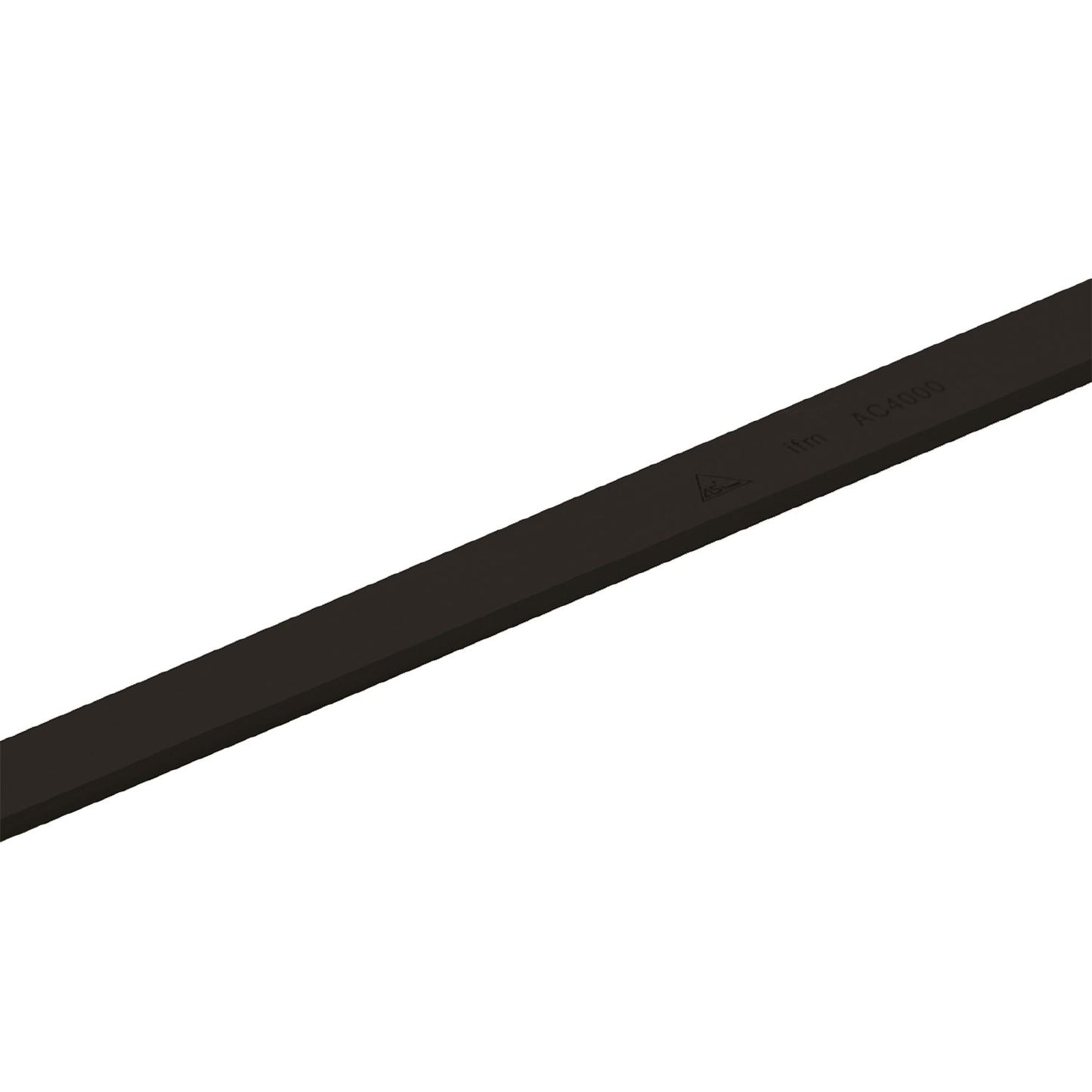

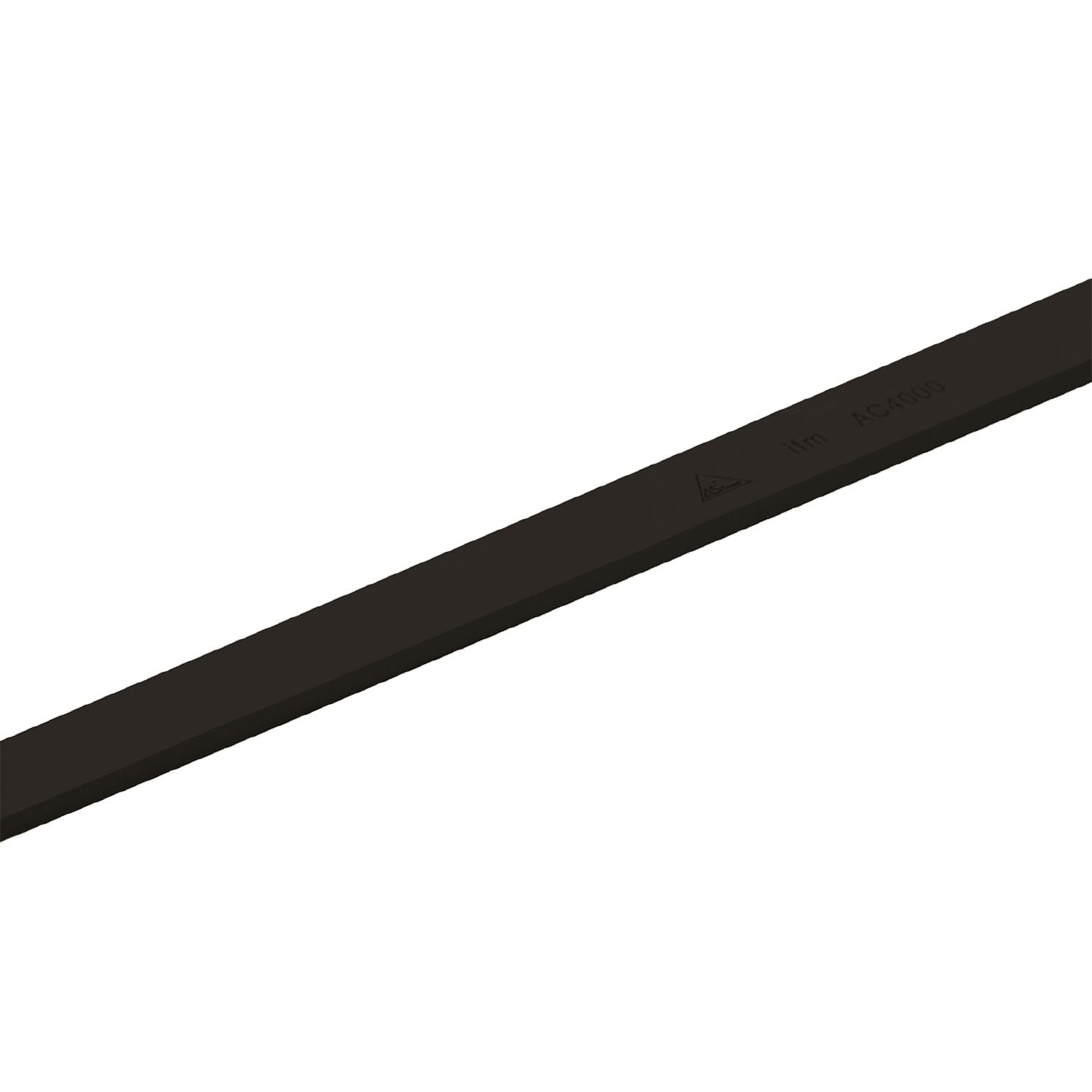

IFM E74010 - AS-Interface flat cable Flat cable 100 meter EPDM bk

For the reliable external 24 V power supply in AS-i networks.
Connection of components by means of insulation displacement technology.
Reverse polarity protection due to special shape.
High protection rating for the requirements of harsh industrial environments

Special feature	Halogen-free
Design	for use of insulation displacement technology
Application	external 24 V power supply

Operating voltage [V]	24 DC

Operating conditions

Ambient temperature [°C]	-40...85

Weight [g]	7104

Remarks	100 m form supplied: coiled
Pack quantity	100 m

Electrical connection

	Cable: 100 m, EPDM, Halogen-free, black; 2 x 1.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E74010-00 — 13.04.2023 —
