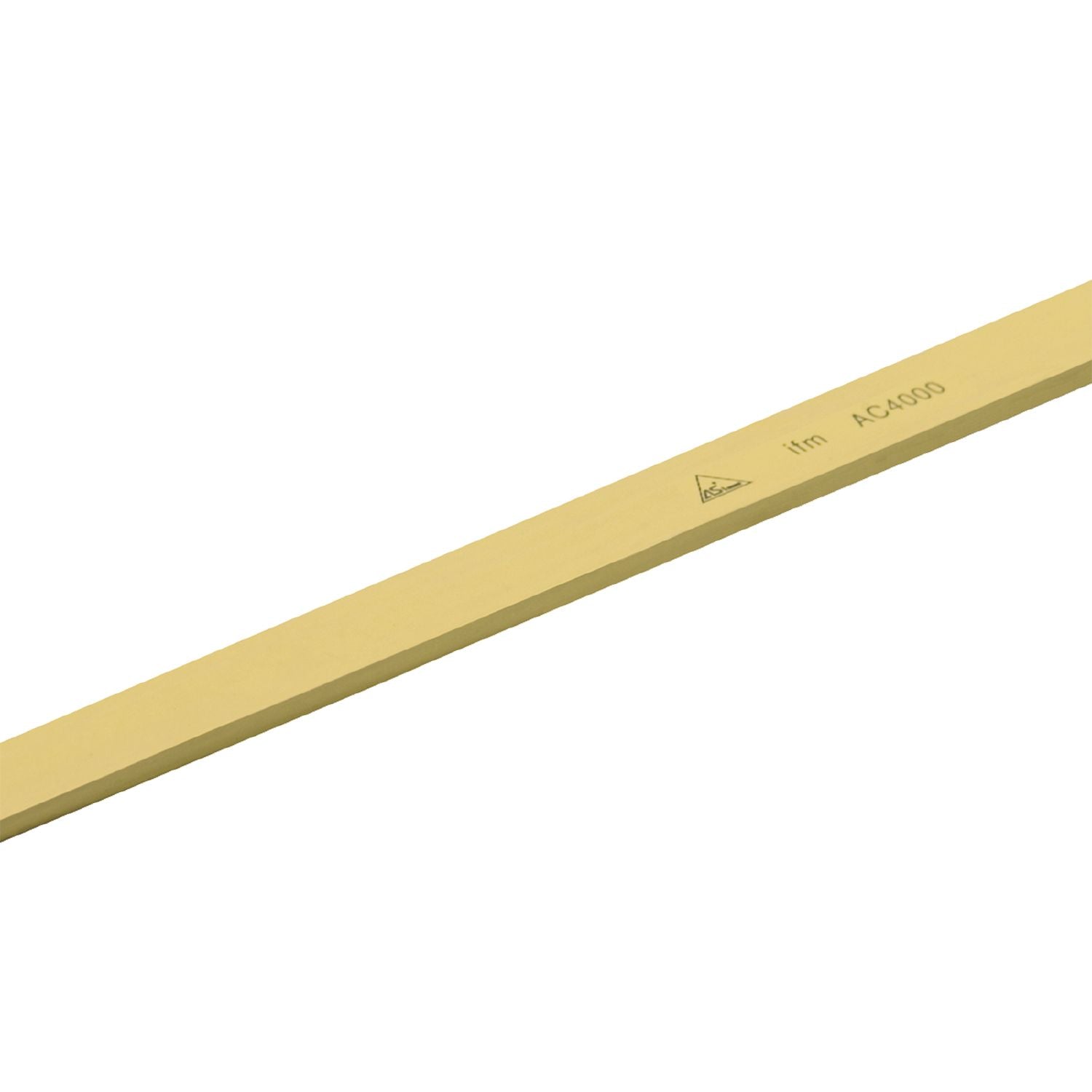

IFM E74205 - AS-Interface flat cable Flat cable 100 meter TPE ye

For the reliable signal transmission in AS-i networks.
Connection of components by means of insulation displacement technology.
Reverse polarity protection due to special shape.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	26.5...31.6 DC;(Peak voltage 300 V)

Operating conditions

Ambient temperature [°C]	-40...105

Weight [g]	8179

Remarks	100 m supplied on a cable drum
Pack quantity	1 pcs.

Electrical connection

	Cable: 100 m, TPE, yellow; 2 x 1.5 mm²
