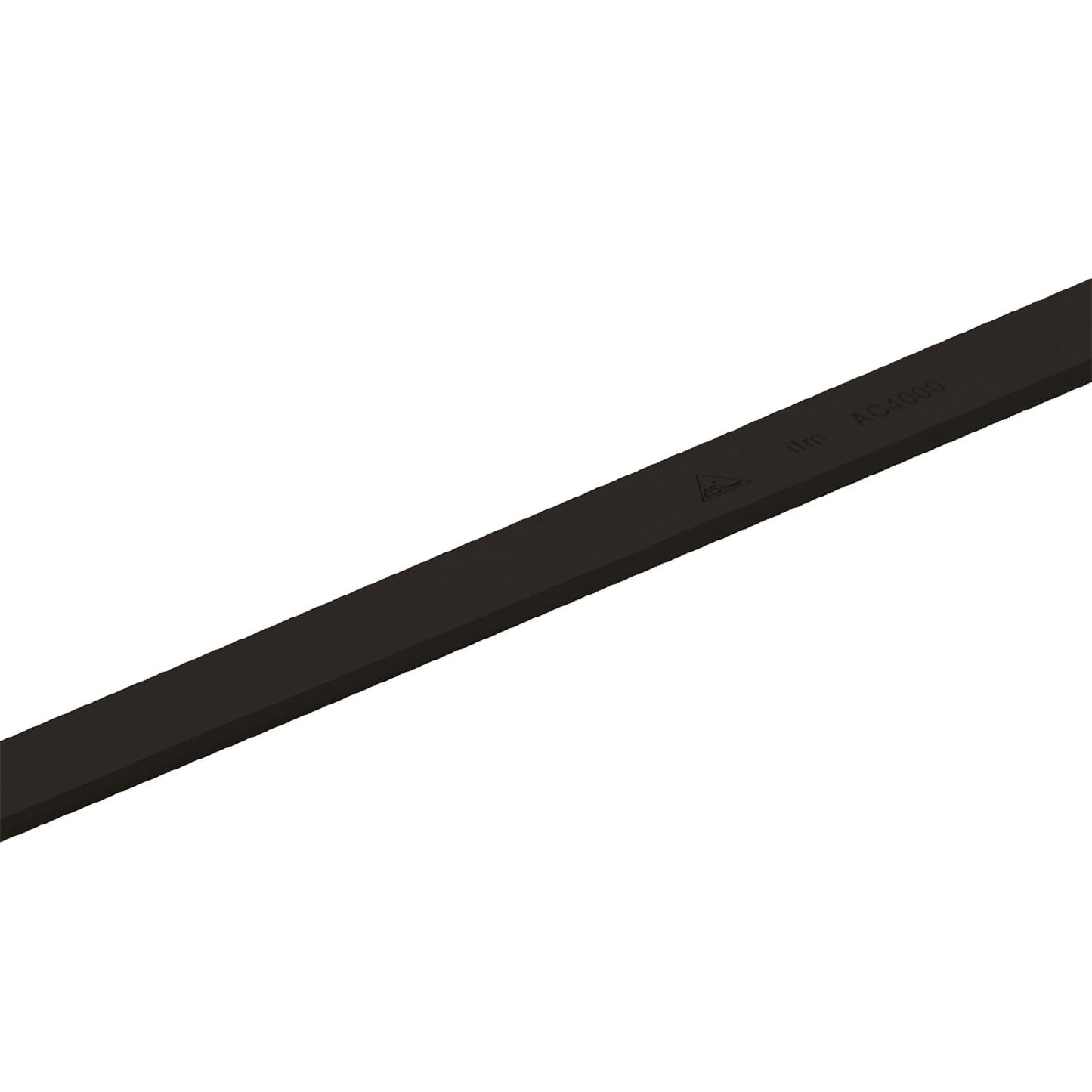

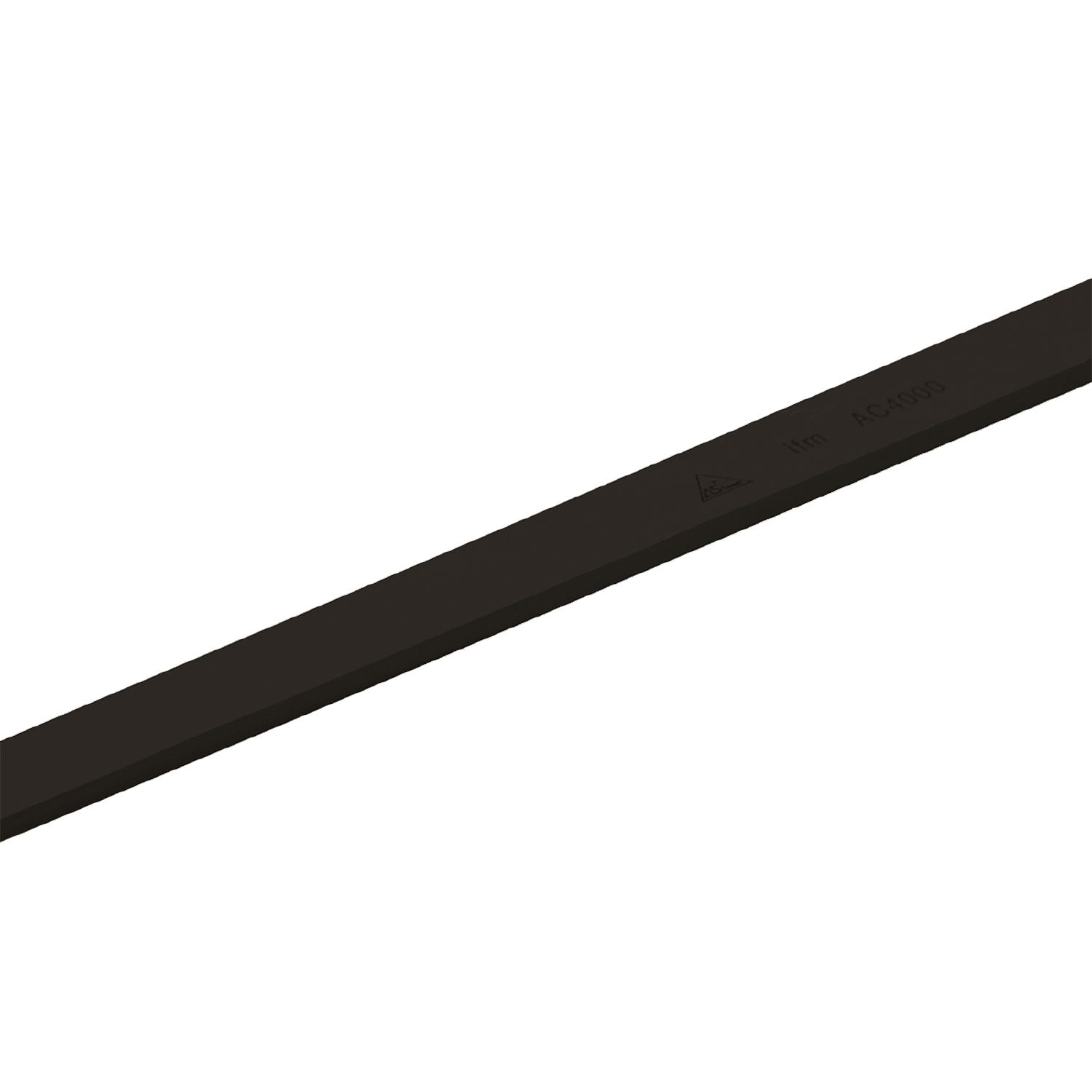

IFM E74213 - AS-Interface flat cable AS-i Flat cable TPE bk 500 m

For the reliable external 24 V power supply in AS-i networks.
Connection of components by means of insulation displacement technology.
Reverse polarity protection due to special shape.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Design	for use of insulation displacement technology
Application	external 24 V power supply

Operating voltage [V]	24 DC;(Peak voltage 300 V)

Operating conditions

Ambient temperature [°C]	-40...105

Weight [g]	33660

Remarks	500 m supplied on a cable drum
Pack quantity	1 pcs.

Electrical connection

	Cable: 500 m, TPE, black; 2 x 1.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E74213-00 — 13.04.2023 —
