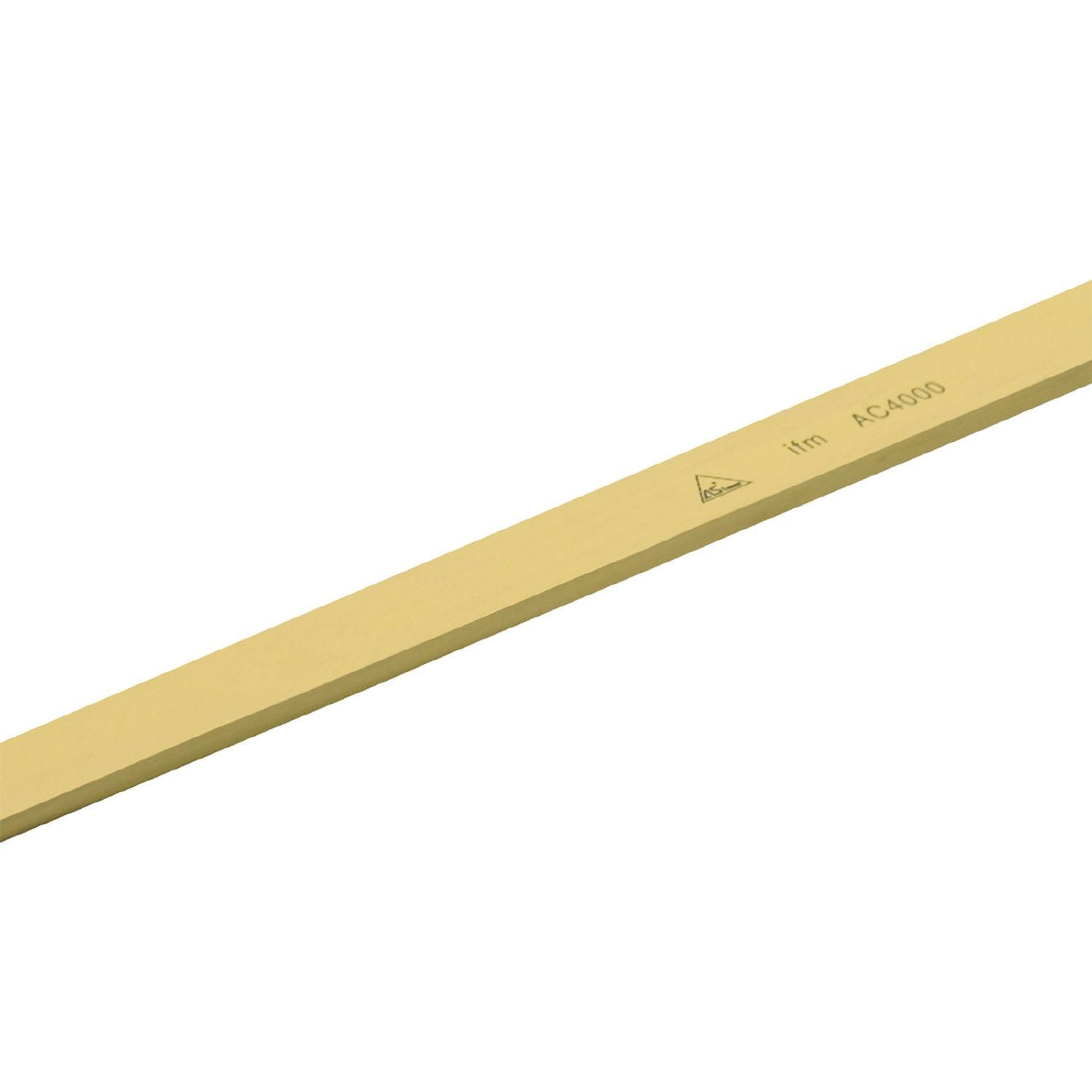

IFM E74300 - AS-Interface flat cable Flat cable 100 m Process ye

For the reliable signal transmission in AS-i networks.
Connection of components by means of insulation displacement technology.
Reverse polarity protection due to special shape.
Special cable material for use in the food and beverage industry.
Wide operating temperature range

Design	for use of insulation displacement technology
Application	food industry

Operating voltage [V]	26.5...31.6 DC;(Peak voltage 300 V)

Operating conditions

Ambient temperature [°C]	-40...105

Weight [g]	6745

Remarks	100 m form supplied: coiled
Pack quantity	100 m

Electrical connection

	Cable: 100 m, TPE-PVC compound, yellow; 2 x 1.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E74300-00 — 13.04.2023 —
