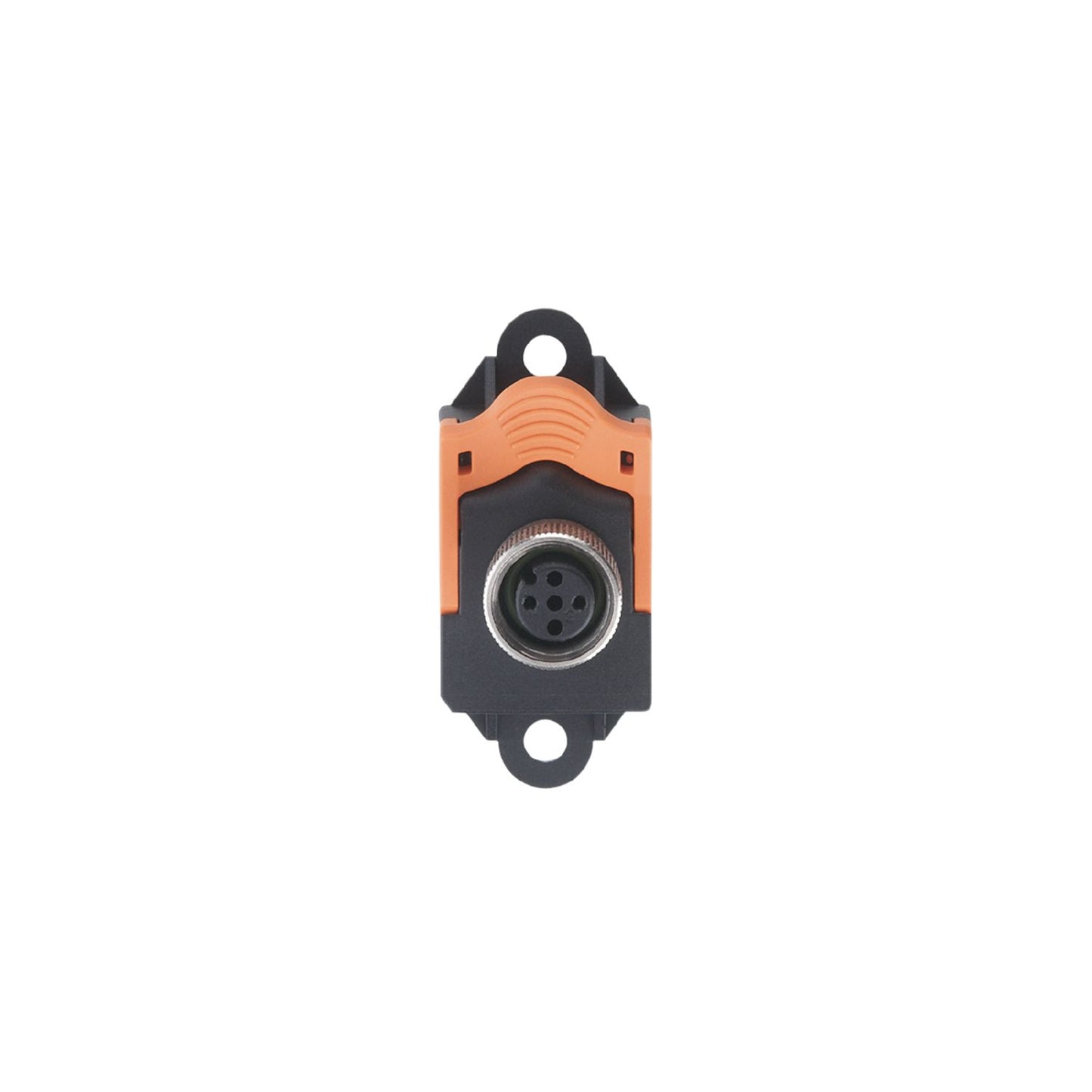

IFM E75005 - AS-Interface flat cable insulation displacement connector FC Quick Connect M12

For transition from AS-i flat cable to M12 connector.
For extending the AS-i network by means of spurs.
Easy and quick connection due to insulation displacement technology.
High protection rating for the requirements of harsh industrial environments

Operating voltage [V]	< 42 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...70
Storage temperature [°C]	-25...75
Protection	IP 67

Tests / approvals

UL approval	power supply Class 2

Weight [g]	17.7
Materials	housing: PA; O-ring: FKM; Lock nut: brass nickel-plated; contact pins: bronze tin-plated

Remarks	The flat cable must not end in the device.
Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A; Tightening torque: 0.4...0.6 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75005-00 — 04.03.2022 —
