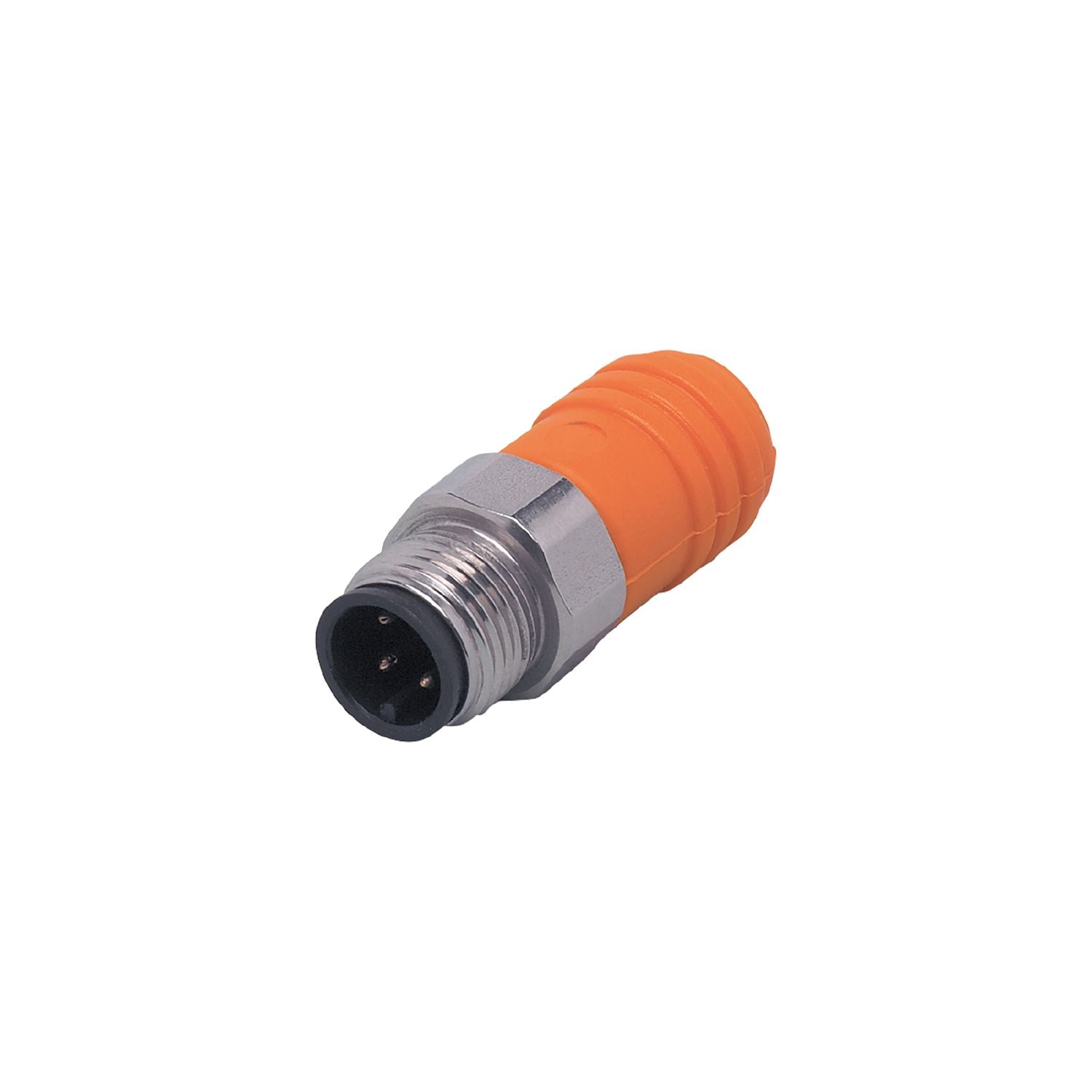

IFM E75222 - Connector for AS-Interface analogue modules Plug AC2516,AC5222,AC5223

For use in combination with AS-Interface analogue modules.
For simulating an analogue input signal.
High protection rating for the requirements of harsh industrial environments.
Easy connection via the tried-and-tested M12 connector

Design	for analogue modules AC5222, AC5223, AC2516, AC2566
Application	Connector for analogue modules

Operating conditions

Ambient temperature [°C]	-25...50
Protection	IP 68; IP 69K

Weight [g]	15.1
Materials	PVC

Remarks	The connector simulates an analogue input signal.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75222-00 — 16.05.2008 —
