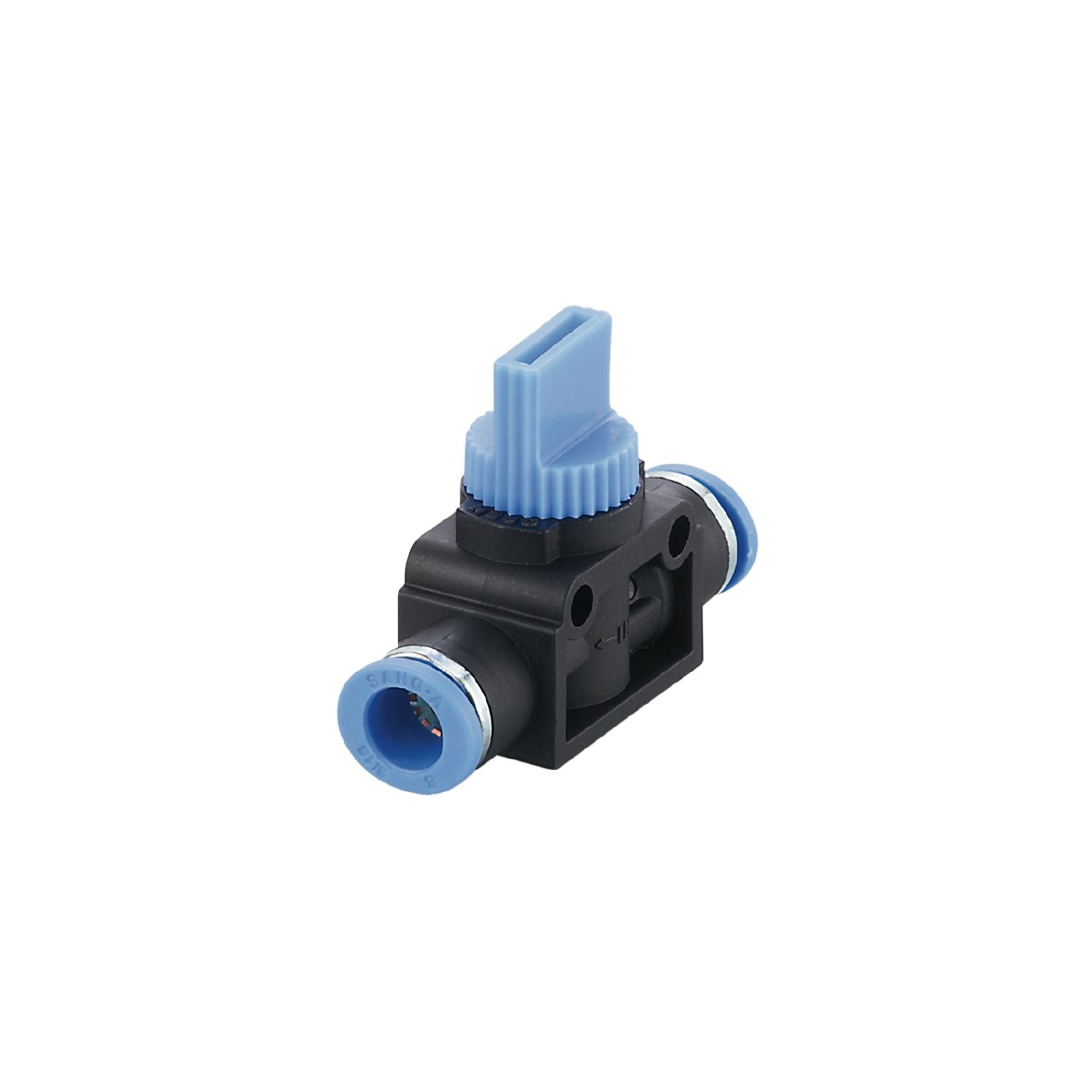

IFM E75233 - 3/2-way shut-off valve Shut-off valve

Media	compressed air according to ISO 8573-1: 2001

Operating conditions

Ambient temperature [°C]	0...60

Weight [g]	23.3
Materials	housing: PBT; release ring: polyoxymethylene; Tooth lock washer: stainless steel; Sealing: NBR

Remarks	3/2-way shut-off valves block the airflow and vent the secondary side. Installation before the P connection[1] of the AirBox to block the compressed air supply of the AirBox.
Pack quantity	1 pcs.
