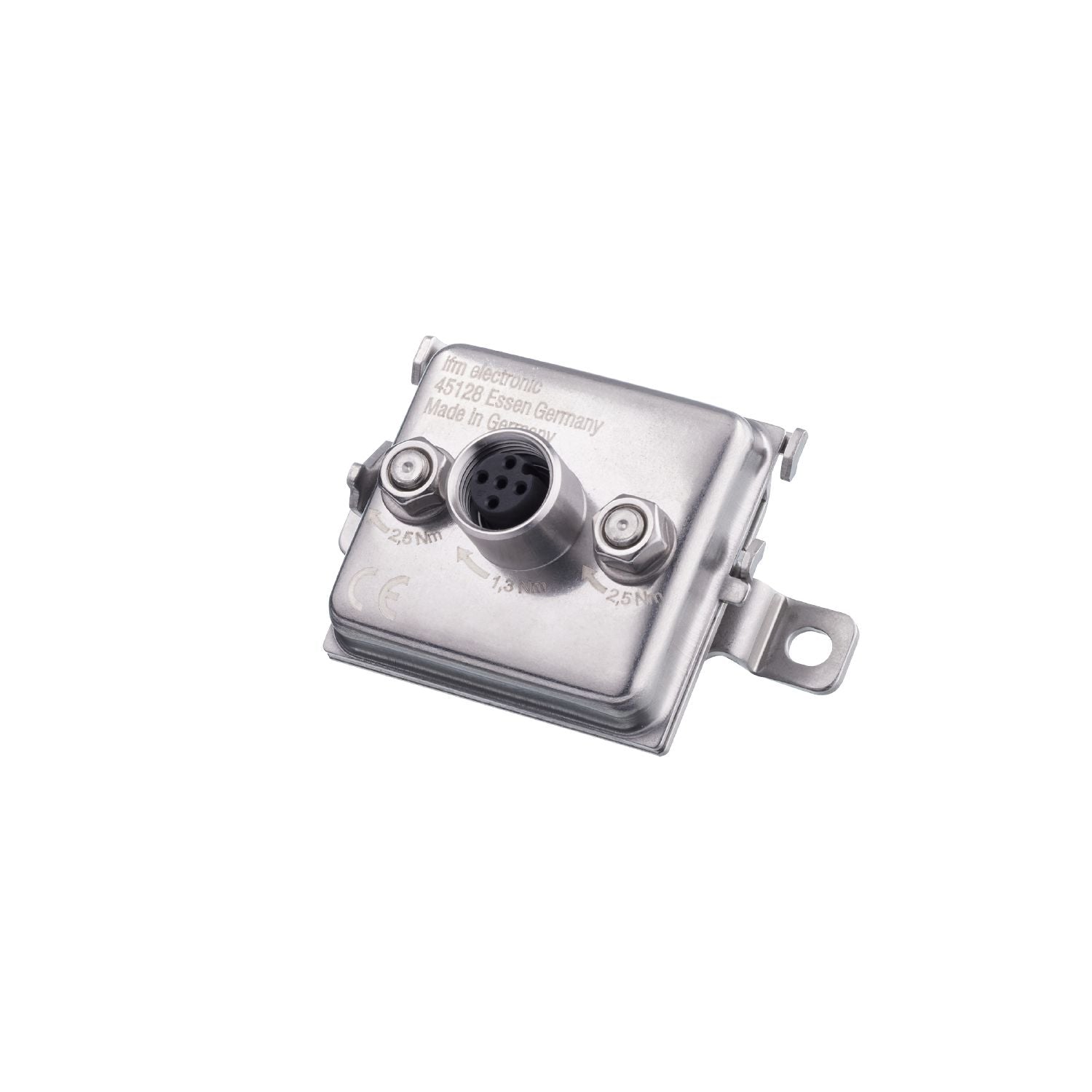

IFM E75354 - AS-Interface flat cable insulation displacement connector FC Splitter ye ProcessL

For transition from AS-i flat cable to M12 connector.
Hygienic design for the requirements of the food and beverage industry.
Easy and quick connection due to insulation displacement technology.
Resistent gegen Hochdruckreinigung mit aggressiven Reinigungsmitteln.
Large operating temperature range and high protection rating

Design	AS-i
Application	hygienic and wet areas in the food industry

Operating voltage [V]	26.5...31.6 DC;(AS-i)
Protection class	III
Operating voltage AUX DC [V]	18...32
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-30...80
Max. relative air humidity [%]	80;(31 °C; linearly decreasing to 50 % (40 °C))
Max. height above sea level [m]	2000
Protection	IP 67; IP 68; IP 69K
Pollution degree	2

Tests / approvals

EMC	EN 61000-6-2

Weight [g]	104.3
Materials	metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM
Tightening torque [Nm]	2.5;(lock nuts)

Accessories

Accessories (optional)	Torque wrench, E70390

Pack quantity	1 pcs.

Electrical connection - socket

Connection	Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm
