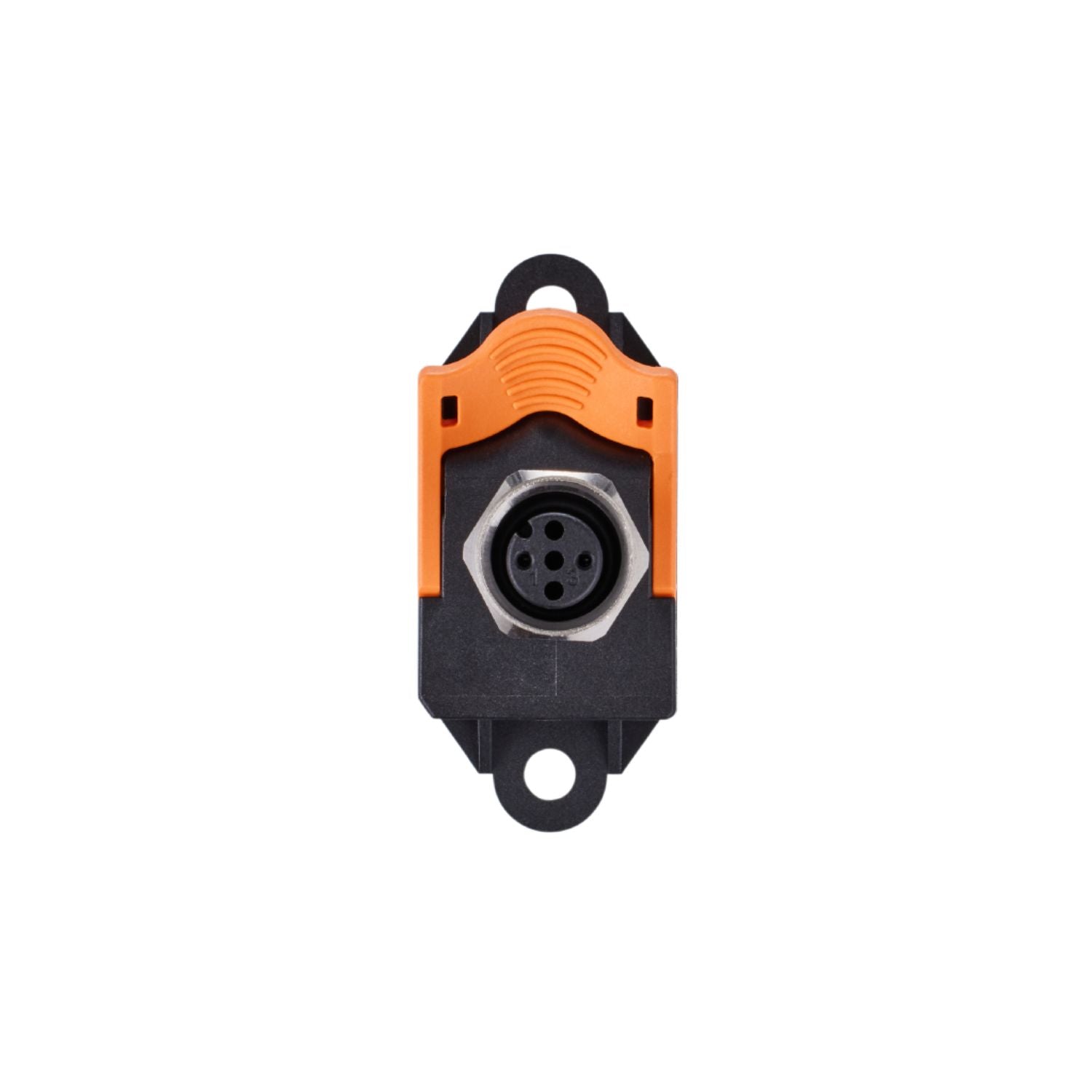

IFM E75471 - AS-Interface flat cable insulation displacement connector FC Quick Connect M12 stainless

Operating voltage [V]	< 42 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...70
Storage temperature [°C]	-25...75
Protection	IP 67

Tests / approvals

UL approval	power supply Class 2

Weight [g]	18.45
Materials	housing: PA; O-ring: EPDM; Lock nut: stainless steel (1.4305 / 303); contact pins: bronze tin-plated

Remarks	The flat cable must not end in the device.
Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A; Tightening torque: 0.4...0.6 Nm
