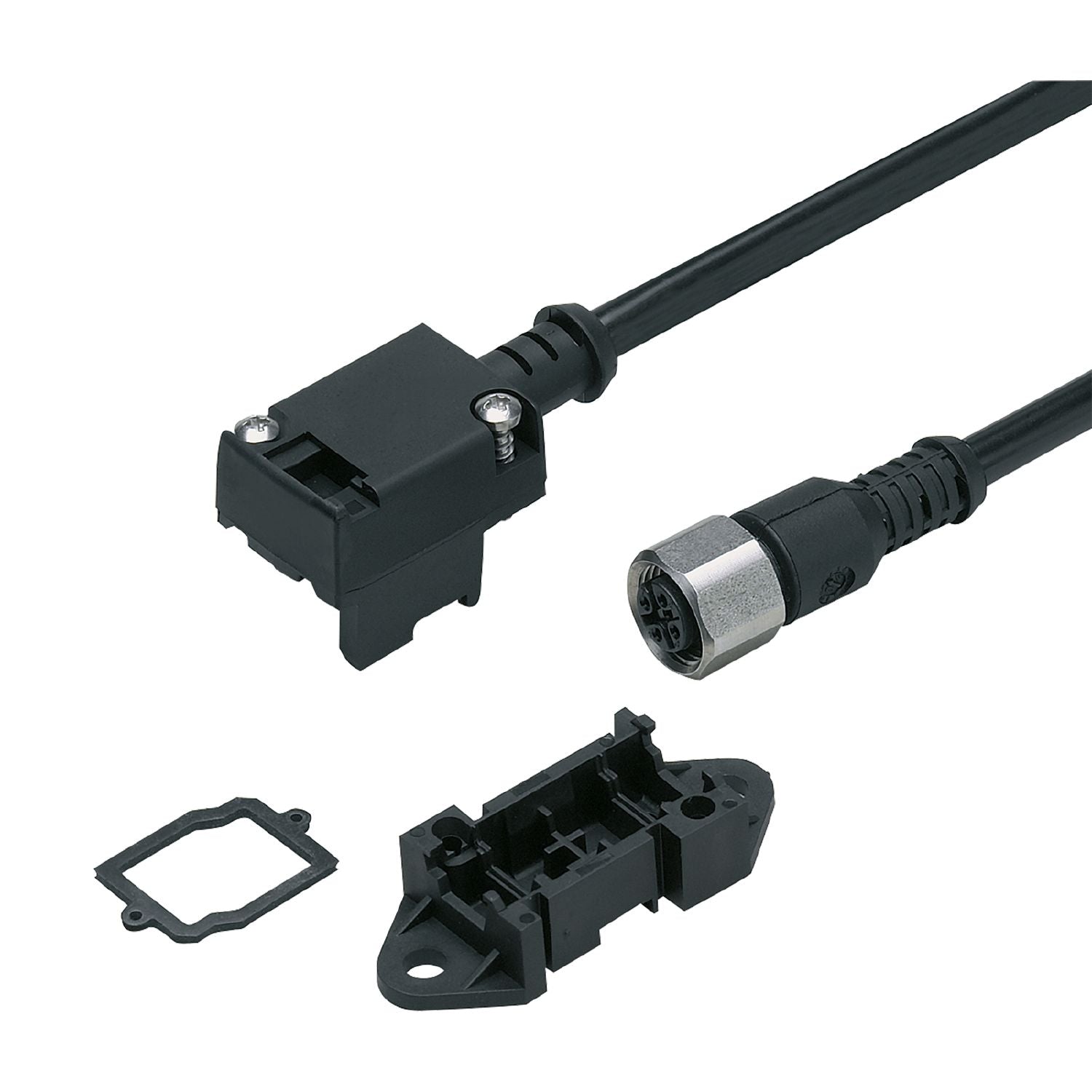

IFM E79998 - AS-Interface flat cable insulation displacement connector FC connector, M12, V2A, 1m

For transition from AS-i flat cable to M12 connector.
For extending the AS-i network by means of spurs.
Easy and quick connection due to insulation displacement technology.
High protection rating for the requirements of harsh industrial environments

Special feature	Gold-plated contacts
Design	AS-i

Operating voltage [V]	26.5...31.6 DC
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Weight [g]	82.7
Materials	housing upper part: PUR; housing lower part: PA 6.6; screw: stainless steel (1.4305 / 303); Lock nut: stainless steel (1.4305 / 303)

Remarks	The flat cable must not end in the splitter. Use a flat cable seal or heat-shrink cap for sealing.
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 1 m, PVC, Ø 5.75 mm; 2 x 0.75 mm², PVC
Connection	Connector:M12, straight; coding: A; Contacts: gold-plated
