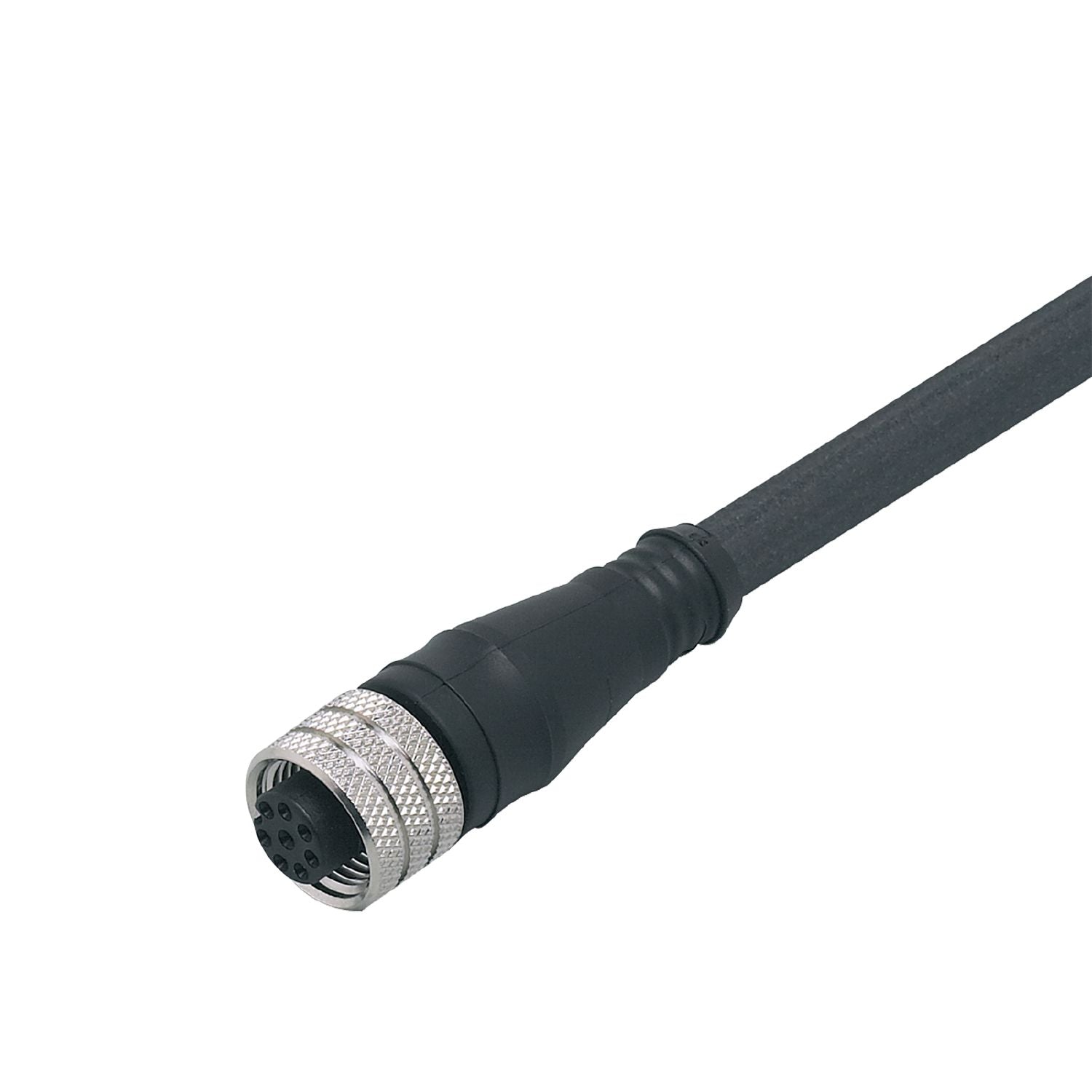

IFM E80021 - Connecting cable with socket ADOGH080MSS0002K08

8-pole connection.
Good electromagnetic compatibility thanks to shielded cable.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range

Special feature	Screened cable

Operating voltage [V]	< 30 AC / < 36 DC
Protection class	III
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	159.8
Dimensions [mm]	15 x 15 x 43
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, black, shielded; 8 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 1...1.5 Nm; Shielded connection cable: screen connected
