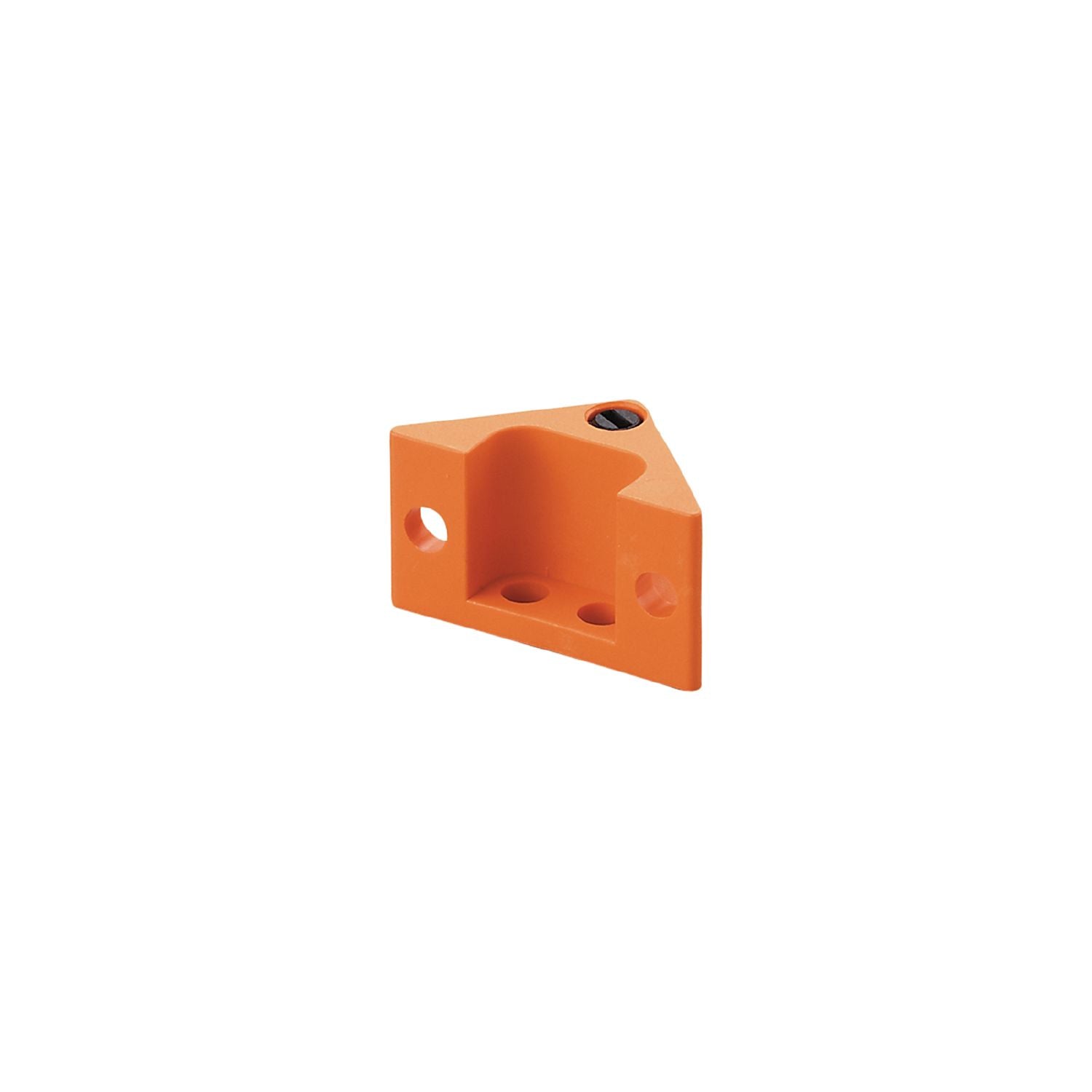

IFM E80302 - RFID tag ID-TAG/TRIANGLE HOUSING/01

IFM E80302 - RFID tag ID-TAG/TRIANGLE HOUSING/01

€54,41
€54,41
Sale Sold out
Taxes included.

📦 Ready for dispatch: 03.12.2025

SKU: E80302

RFID tag 125 kHz - Q5.
Reliable coding of workpiece carriers.
tag fixture for workpiece carriers
Application coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C] -40...85
Peak temperature (passive) [°C] 120;(duration of test: 1 x 100 h)
Operating frequency [MHz] 0,125
Memory size [bit] 224
Max. read cycles unlimited
Max. write cycles 100000
Operating conditions
Ambient temperature [°C] -40...85
Storage temperature [°C] -40...90
Protection IP 67
Tests / approvals
Shock resistance
DIN IEC 68-2-29 30 g 18 ms
Vibration resistance
DIN IEC 68-2-6 6 g 14...200 Hz
MTTF [years] 2854
Weight [g] 10.1
Housing tag fixture for workpiece carriers
Dimensions [mm] 18 x 33 x 16.9
Materials PBT orange; PA black
Accessories
Items supplied
ID tag:, E80301
Remarks
peak temperature 1 x 100 h
Storage temperature 1 x 1000 h
shock 3 Achsen je 1084 Schocks
vibration 3 Achsen je 8 h
Pack quantity 1 pcs.
Other data
read/write distance (mm)
positioning of the ID tag read write
DTA100 front side 20 10
DTA101 front side 20 –
All indications apply to static read/write operations.
Indications without comment refer to the installation of ID tags in non-metallic environments.
