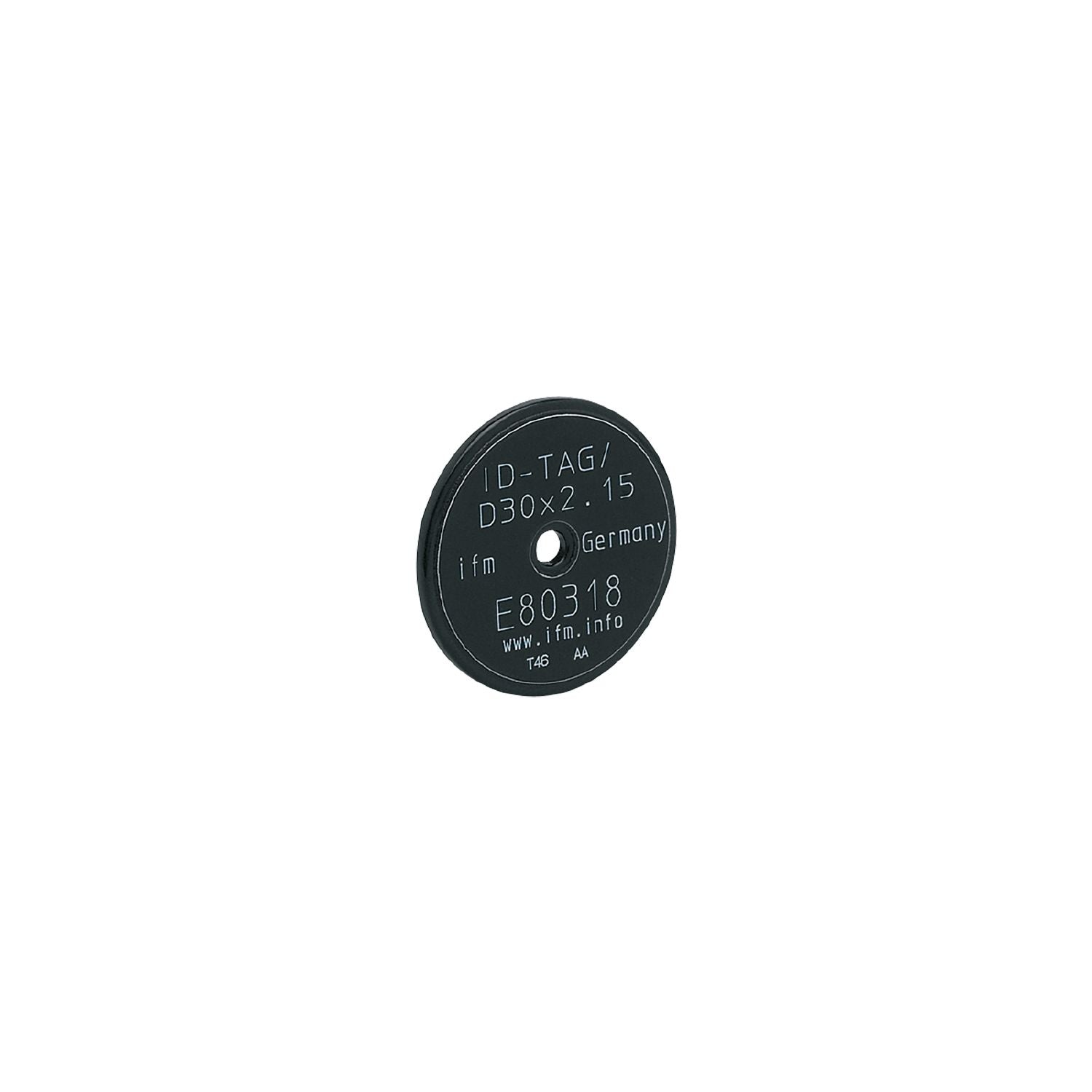

RFID tag 125 kHz - Q5. Reliable coding of workpiece carriers. Suitable for installation with plastic and metal carriers
Application
coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C]
-25...70
Peak temperature (passive) [°C]
130;(duration of test: 1 x 100 h)
Operating frequency [MHz]
0,125
Memory size [bit]
224
Max. read cycles
unlimited
Max. write cycles
100000
Operating conditions
Ambient temperature [°C]
-25...70
Storage temperature [°C]
-40...90
Protection
IP 67
Tests / approvals
Shock resistance
DIN IEC 68-2-27
40 g 18 ms
Vibration resistance
DIN IEC 68-2-6
10 g 10...2000 Hz
MTTF [years]
2854
Weight [g]
3.4
Dimensions [mm]
Ø 30 / L = 2.2
Materials
PC black
Remarks
peak temperature 1 x 100 h
Storage temperature 1 x 1000 h
shock 6 Achsen je 2000 Schocks
vibration 3 Achsen je 2,5 h
Pack quantity
1 pcs.
Other data
read/write distance (mm)
positioning of the ID tag
read
write
DTA100
overhead
15...40
15...40
DTA101
overhead
15...40
–
DTA200
front side
55
55
DTA201
front side
55
–
DTA300
front side
80
80
DTA301
front side
80
–
All indications apply to static read/write operations.
Indications without comment refer to the installation of ID tags in non-metallic environments.
