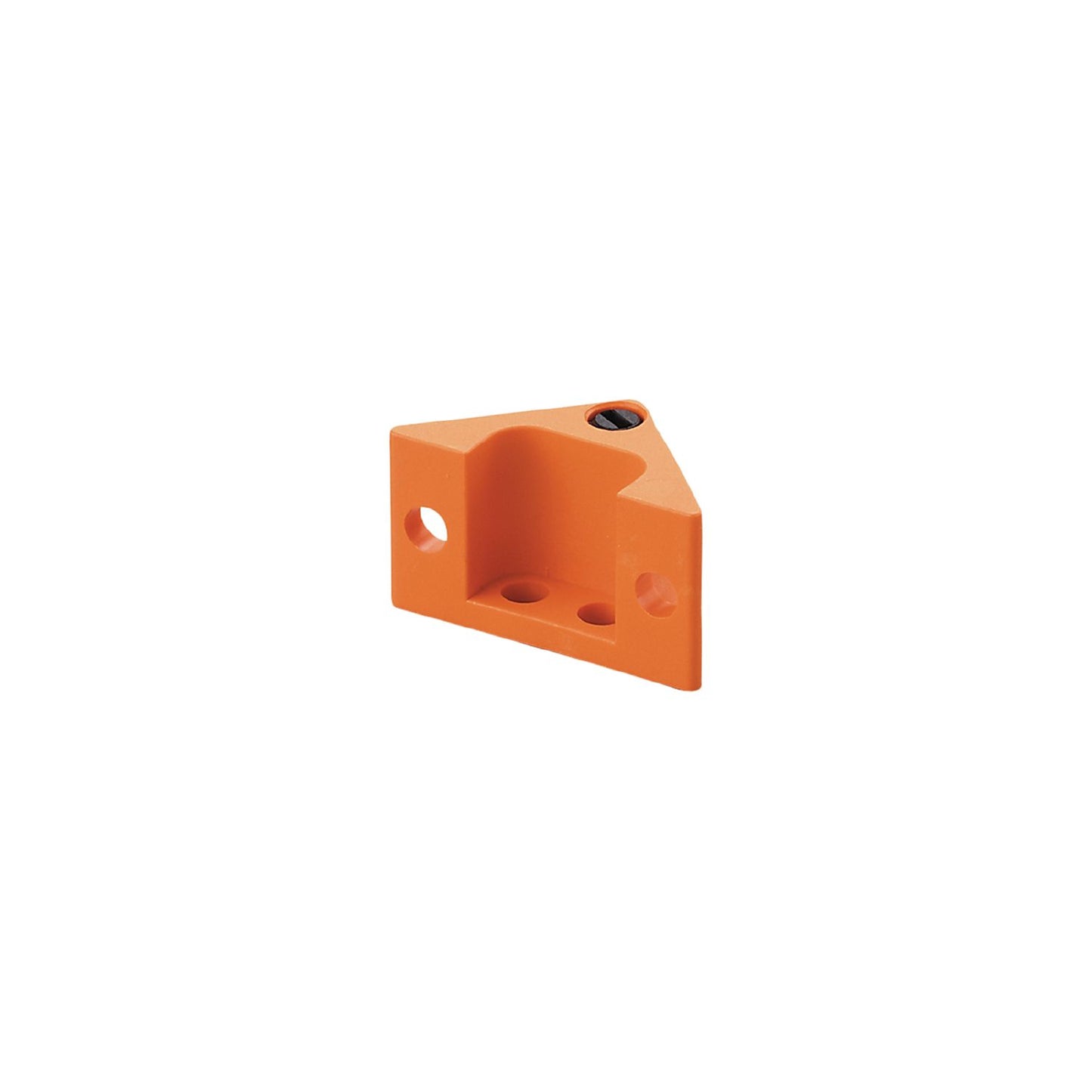

IFM E80348 - RFID tag ID-TAG/TRIANGLE HOUSING/06

RFID tag 13.56 MHz - ISO15693.
Reliable coding of workpiece carriers and products.
tag fixture for workpiece carriers

Application	coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C]	-25...85
Peak temperature (passive) [°C]	90

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	Vigo
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-40...90
Protection	IP 67

Tests / approvals

Shock resistance	DIN IEC 68-2-29 30 g 18 ms
Vibration resistance	DIN IEC 68-2-6 6 g 14...200 Hz
Radio approval	ISO 15693

Weight [g]	9.1
Housing	tag fixture for workpiece carriers
Type of mounting	Installation on metal and non-metal materials;(screw fastening ; sticking to a surface)
Dimensions [mm]	18 x 33 x 16.9
Materials	PBT orange; PA black

Accessories

Items supplied

Pack quantity	1 pcs.
