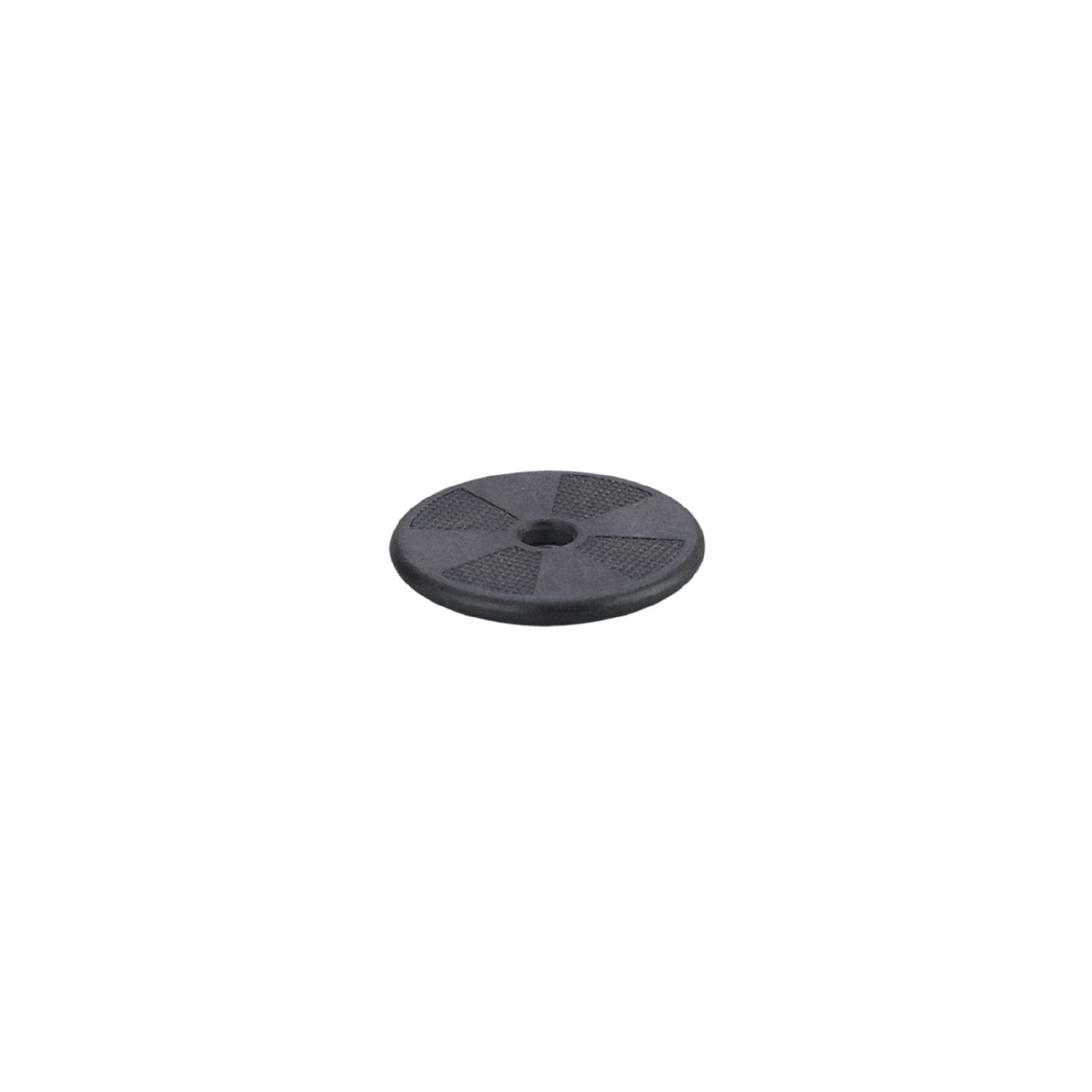

RFID tag 125 KHz - Hitag S. Reliable coding of workpiece carriers. High protection rating for the requirements of harsh industrial environments
Operating temperature (active) [°C]
-25...85
Peak temperature (passive) [°C]
140;(duration of test: 1 x 100 h)
Operating frequency [MHz]
0,125
Memory size [bit]
192
Number of blocks
6
Block size [Byte]
4
Unique Identification Number (UID) [Byte]
4
Max. read cycles
unlimited
Max. write cycles
100000
Operating conditions
Ambient temperature [°C]
-25...85
Storage temperature [°C]
-40...90
Protection
IP 68
Tests / approvals
Shock resistance
DIN IEC 68-2-27
40 g 18 ms
Vibration resistance
DIN IEC 68-2-6
10 g 10...2000 Hz
Weight [g]
4
Dimensions [mm]
Ø 30 / L = 2.5
Materials
PA 6 black
Remarks
food-grade
peak temperature 1 x 100 h
Storage temperature 1 x 1000 h
shock 6 Achsen je 2000 Schocks
vibration 3 Achsen je 2,5 h
Pack quantity
1 pcs.
Other data
read/write distance (mm)
positioning of the ID tag
read
write
ANT512
front side
60
55
All indications apply to static read/write operations.
Indications without comment refer to the installation of ID tags in non-metallic environments.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80360-00 — 05.11.2020 —
