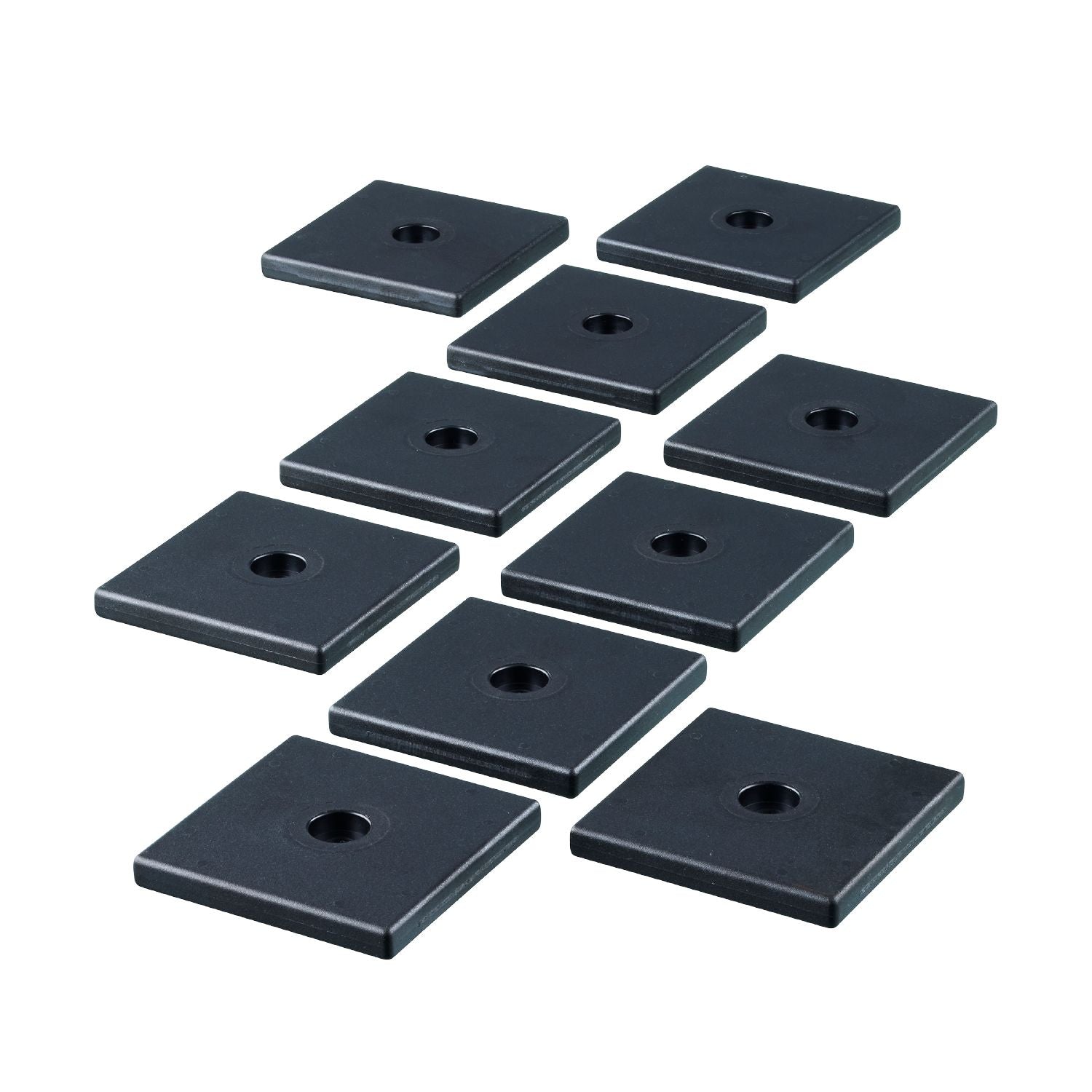

IFM E80400 - RFID tag ID-TAG/51x51/06

RFID tag 13.56 MHz - ISO15693.
Reliable coding of workpiece carriers and products.
Suitable for use in increased temperature range

Application	coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C]	-55...240

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	ICODE SLIX
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693

Operating conditions

Ambient temperature [°C]	-55...240
Note on ambient temperature	1,5 h 185 °C 1 h 200 °C 0,75 h 220 °C 0,5 h 240 °C maximum dwell time at maximum ambient temperature
Protection	IP 68

Tests / approvals

Shock resistance	EN 60068-2-29 40 g 18 ms
Vibration resistance	EN 60068-2-6 10 g 10...2000 Hz
Radio approval	ISO 15693

Weight [g]	281
Type of mounting	Installation on metal and non-metal materials;(screw fastening: spacer E80401; sticking to a surface)
Dimensions [mm]	51 x 6.5 x 51
Materials	PPS

Pack quantity	10 pcs.
