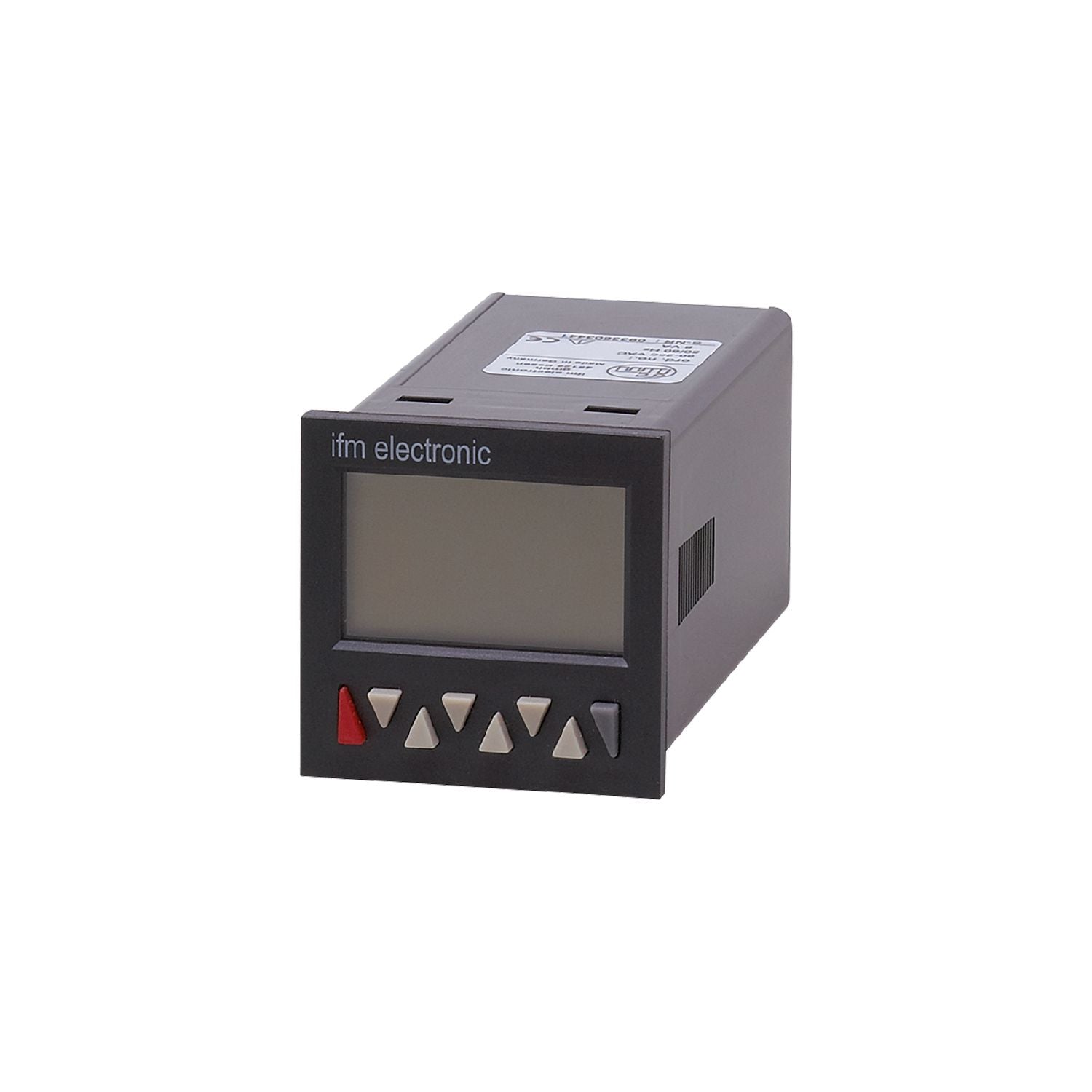

Reliable monitoring of sensors with switching signals. Clearly visible 2-line LCD display. Easy setting of the parameters by means of pushbuttons on the front face. Use as counter for pulse, frequency, time, or operating hours. Two pulse inputs for adding and subtracting
Dimensions [mm]
48 x 48 x 107
Application
preset counter with 2 presets
Nominal voltage AC [V]
90...260
Nominal frequency AC [Hz]
50...60
Auxiliary energy for sensors DC [V]
24;(±15 %, 80 mA)
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 2; Number of relay outputs: 2
Inputs
Number of digital inputs
2
Outputs
Number of relay outputs
2
Operating conditions
Ambient temperature [°C]
-20...65
Storage temperature [°C]
-25...75
Max. relative air humidity [%]
93
Protection
IP 65;(on the front)
Protection rating terminals
IP 00
Tests / approvals
EMC
EN 55011
class B
EN 61000-6-2
(with shielded control and signal cables)
Shock resistance
EN 60068-2-27
100 g XYZ
Vibration resistance
EN 60068-2-6
10...55 Hz / (1 mm / XYZ)
Weight [g]
214.5
Dimensions [mm]
48 x 48 x 107
Materials
PC black
Displays / operating elements
Display
2 x 7-segment LCD display, green backlit 6-digit
Operating elements
8
pushbuttons
Electrical connection
Connection
plug-in screw terminals: 7 x ...2.5 mm²
