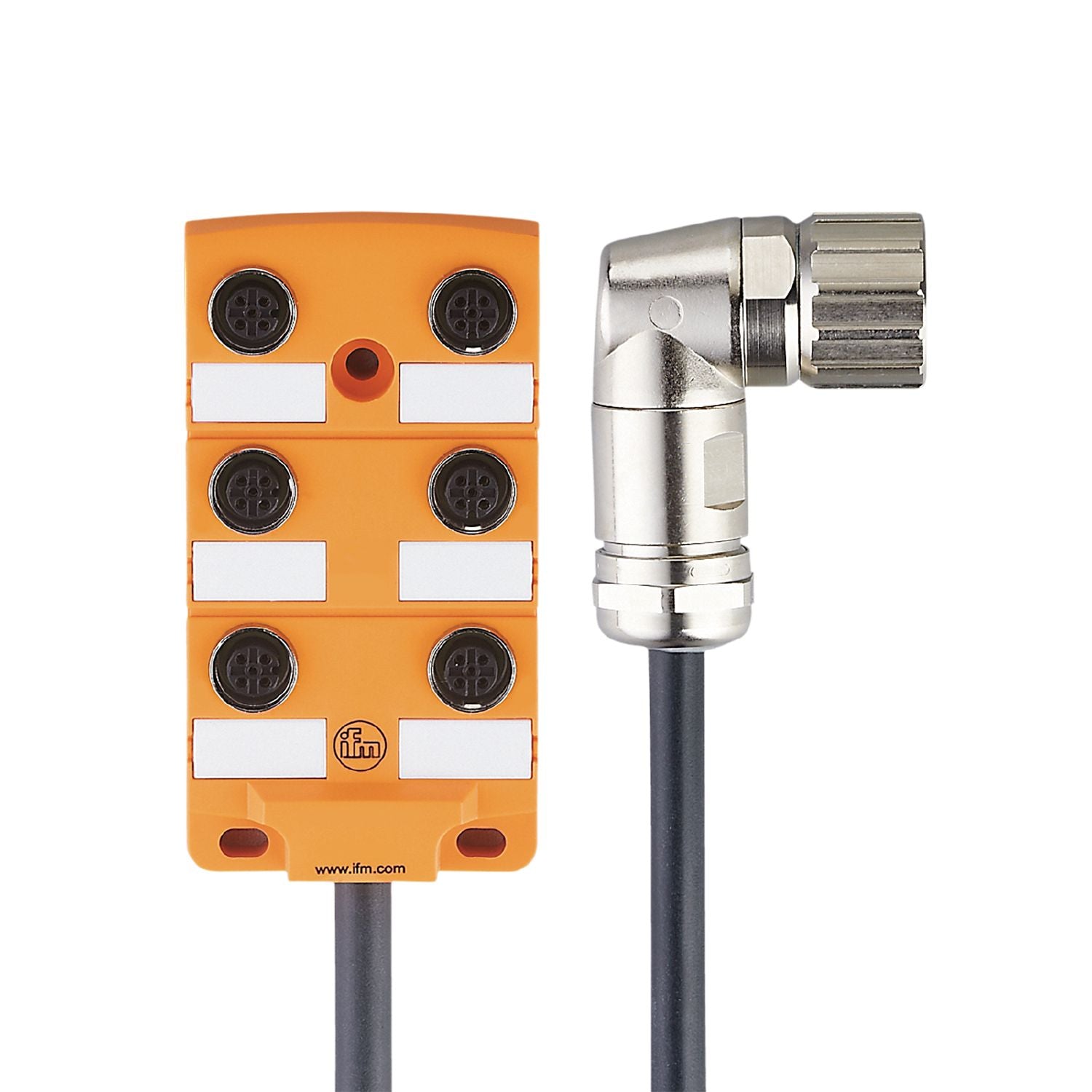

IFM EBC040 - Splitter box ZDO6H050MSS0010H11STAK190MSS

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Operating voltage [V]	< 30 AC/DC;("supply class 2" to cULus)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...80
Ambient temperature (moving) [°C]	-5...60
Protection	IP 67; IP 68

Tests / approvals

UL approval	Enclosure type Type 1

Weight [g]	1470.5
Dimensions [mm]	22 x 54 x 100
Materials	PA
Moulded-body material	PA
Number of ports splitter box	6
Connector type	M12
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter bending cycles > 2 Mio.

Accessories

Items supplied	Protective caps: 2 labels: 6

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M23, angled; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

Electrical connection

Connection	Cable: 10 m, PUR, Halogen-free, black, Ø 8.8 mm; 12 x 0.34 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )

Electrical connection - slot

	Connector: 6 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm
