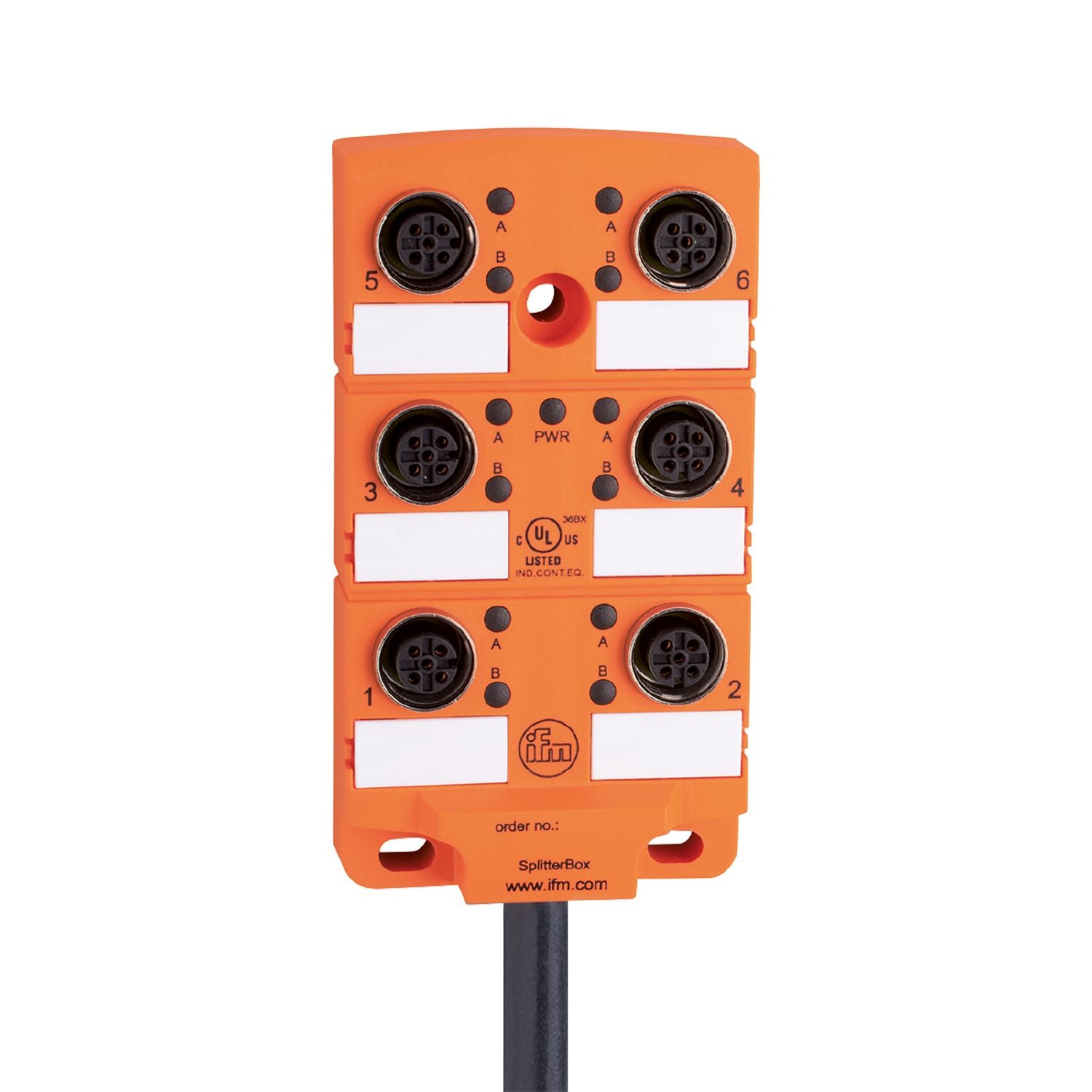

IFM EBC041 - Splitter box ZDO6H05DMSS0015H15

Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
Mechanical end stop to protect the O-ring from destruction.
Robust housing for use in harsh industrial environments.
Clearly visible LEDs for indicating switching status and operation

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	12

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-25...80
Ambient temperature (moving) [°C]	-5...60
Protection	IP 67; IP 68

Weight [g]	1898
Dimensions [mm]	22 x 54 x 100
Materials	PA
Moulded-body material	PA
Number of ports splitter box	6
Connector type	M12
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter bending cycles > 2 Mio.

Displays / operating elements

Display	switching status 12 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	Protective caps: 2 labels: 6

Pack quantity	1 pcs.

Electrical connection

	Cable: 15 m, PUR, Halogen-free, black, Ø 8.8 mm; 12 x 0.34 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )

Electrical connection - slot

Connection	Connector: 6 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm
