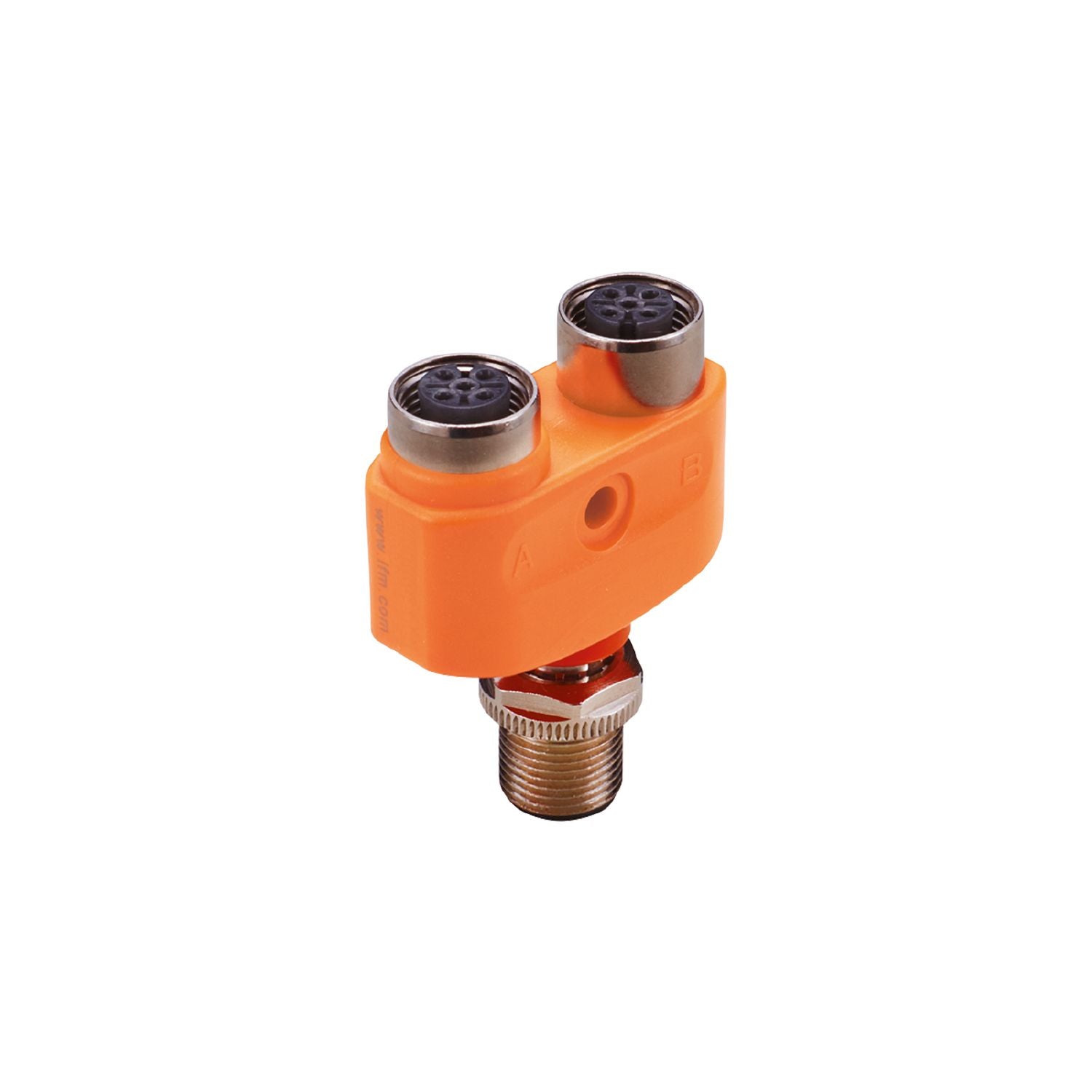

IFM EBC114 - Y-splitter ZDO2H050MSS0000-00STGH050MSS

For use in applications with many inputs and outputs where space is restricted.
Visual and tactile marking of the ports.
Resistant to oils and coolants.
High protection rating for the requirements of harsh industrial environments.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 60 AC/DC;(cULus: 30 AC / 42 DC)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	4
Overall current rating (UL) [A]	3

Operating conditions

Ambient temperature [°C]	-25...90
Note on ambient temperature	cULus: ...65 °C
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Weight [g]	36.8
Materials	housing: PA orange; Sealing: FKM
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - socket

	Connector: 2 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
