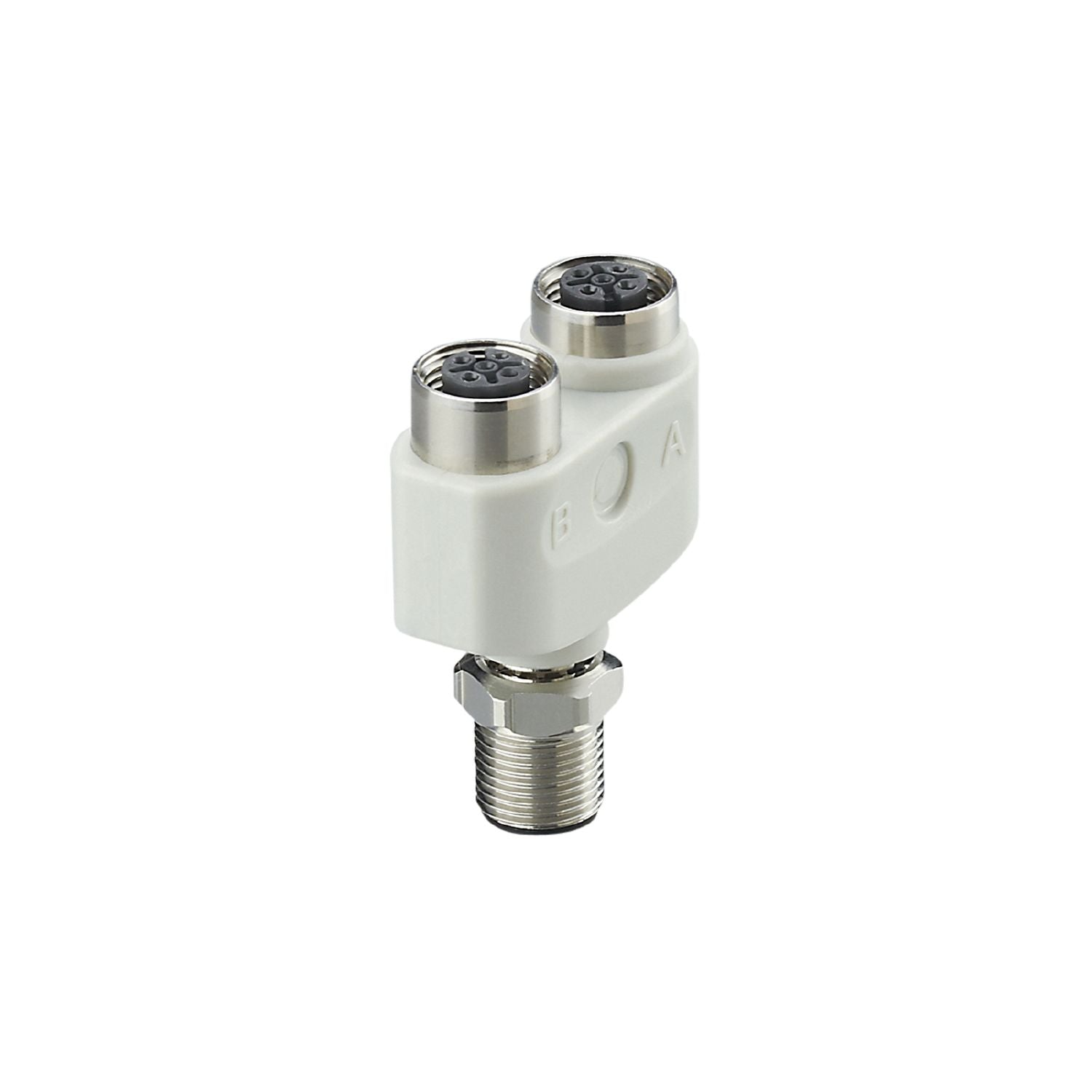

IFM EBF006 - Y-splitter ZDO2H030VAS0000-00STGH040VAS

Resistant to high-pressure cleaning with aggressive cleaning agents.
Halogen and silicone-free.
Visual and tactile marking of the ports.
High protection rating for the requirements of the food and beverage industry.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 250 AC / < 300 DC;(cULus: 30 AC / 42 DC)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...100
Note on ambient temperature	cULus: ...65 °C
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

UL approval	power supply Class 2 File number UL E191684

Weight [g]	33
Materials	housing: PA Halogen-free; Sealing: EPDM
Moulded-body material	PA, Halogen-free
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBF006-00 — 13.04.2023 —
