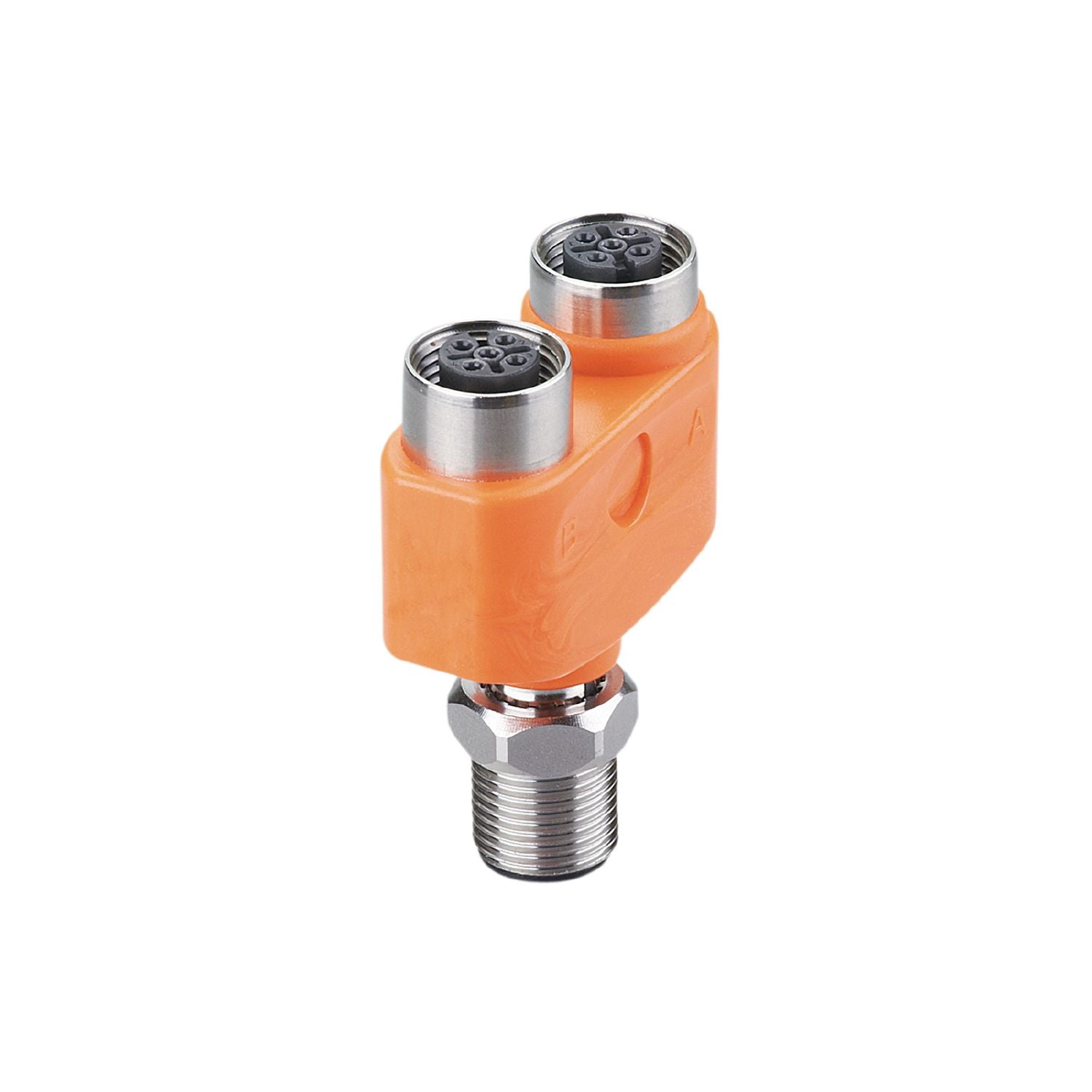

IFM EBT006 - Y-splitter ZDO2H030VAS0000-00STGH040VAS

Resistant to high-pressure cleaning with aggressive cleaning agents.
For use in applications with many inputs and outputs where space is restricted.
Visual and tactile marking of the ports.
High protection rating for the requirements of the food and beverage industry.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 250 AC / < 300 DC;(cULus: 30 AC / 42 DC)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...100
Note on ambient temperature	cULus: ...65 °C
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

UL approval	power supply Class 2 File number UL E191684

Weight [g]	34.6
Materials	housing: PA orange; Sealing: EPDM
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
