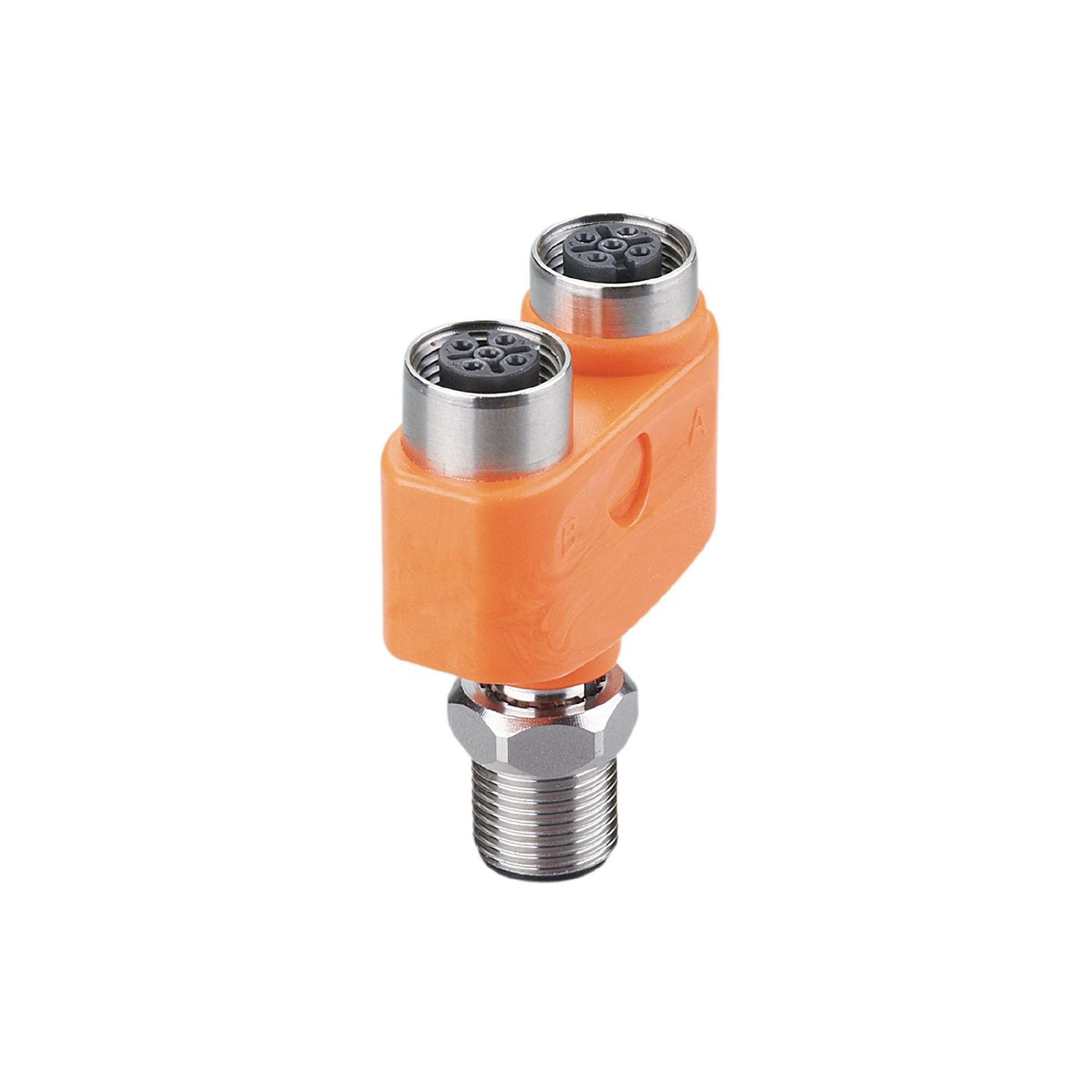

IFM EBT010 - Y-splitter ZDO2H040VAS0000-00STGH050VAS

Resistant to high-pressure cleaning with aggressive cleaning agents.
For use in applications with many inputs and outputs where space is restricted.
Visual and tactile marking of the ports.
High protection rating for the requirements of the food and beverage industry.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 60 AC/DC;(cULus: 30 AC / 42 DC)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...100
Note on ambient temperature	cULus: ...65 °C
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

UL approval	power supply Class 2 File number UL E191684

Weight [g]	35.7
Materials	housing: PA orange; Sealing: EPDM
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - socket

	Connector: 2 x M12; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBT010-00 — 13.07.2015 —
