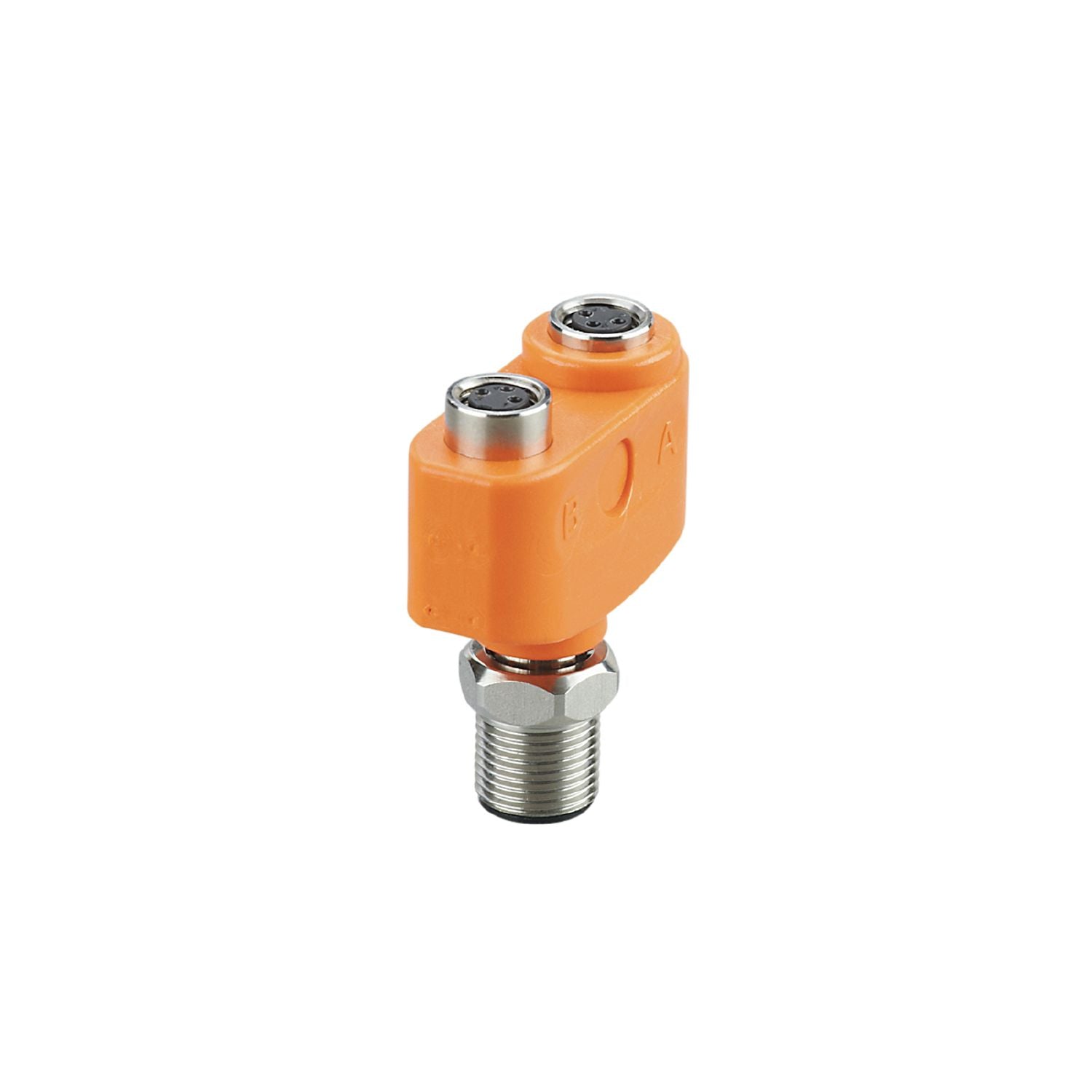

IFM EBT012 - Y-splitter ZDO2F030VAS0000-00STGH040VAS

Resistant to high-pressure cleaning with aggressive cleaning agents.
For use in applications with many inputs and outputs where space is restricted.
Visual and tactile marking of the ports.
High protection rating for the requirements of the food and beverage industry.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 50 AC / < 60 DC;(cULus: 30 AC / 42 DC)
Protection class	III
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]	-25...80
Note on ambient temperature	cULus: ...65 °C
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

UL approval	power supply Class 2 File number UL E191684

Weight [g]	28.9
Materials	housing: PA orange; Halogen-free; Sealing: EPDM
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBT012-00 — 26.02.2019 —
