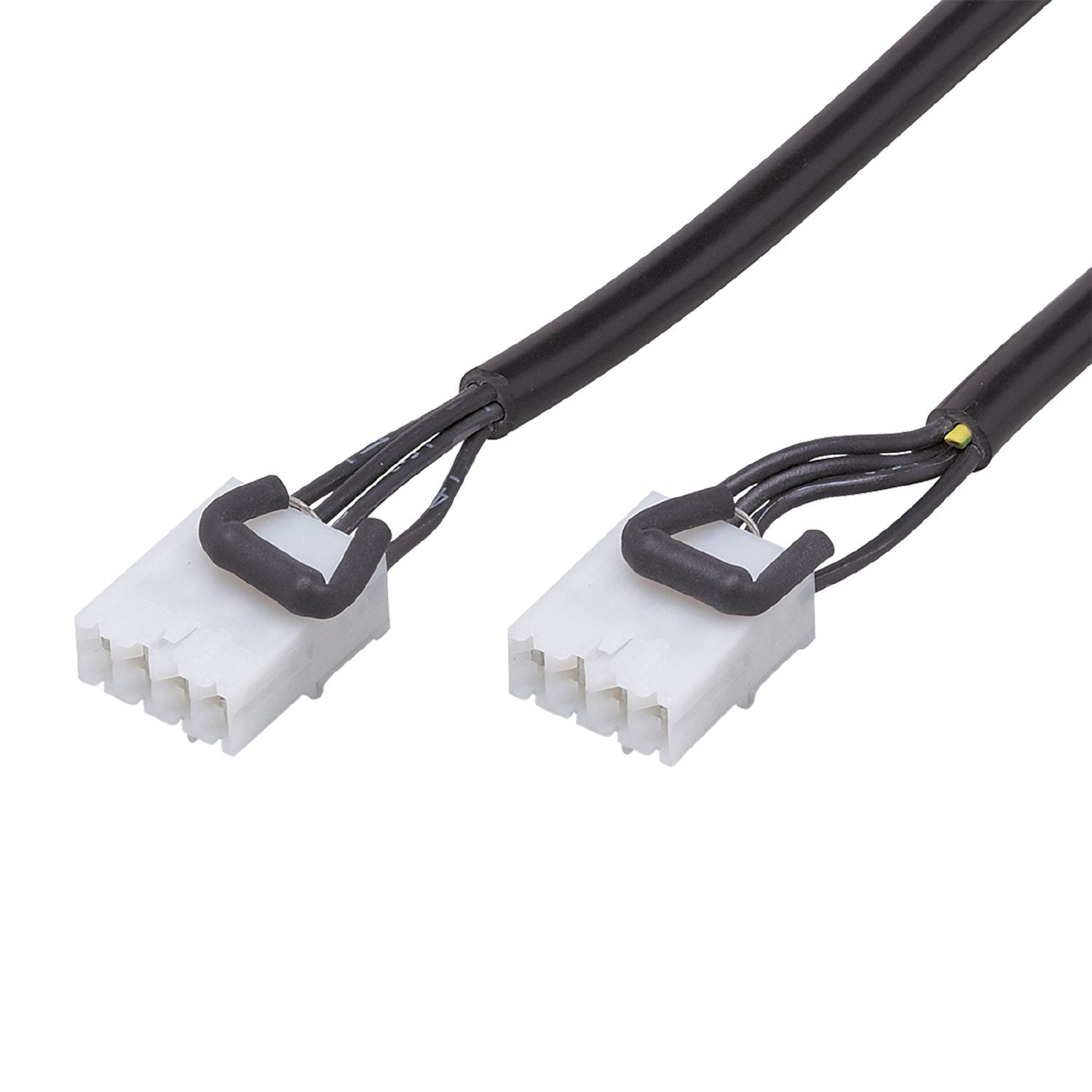

IFM EC0451 - Prewired jumper with contact housing BasicCable/2 Modules

For the connection of controllers and dialogue units.
Reliable signal transmission for CAN devices.
With integrated CAN bus terminating resistors in contact housing and connector.
Large operating temperature range for use in mobile machines.
Wired for voltage supply and signal transmission

Design	wired, for BasicController, 2 x CR04xx
Application	power supply; CAN bus

Operating conditions

Ambient temperature [°C]	-40...85

Weight [g]	46.4

Remarks	CAN bus terminating resistors (120 ohms) are integrated in the standard timer contact housings
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.5 m, PVC, black, Ø 5 mm; 4 x 0.5 mm² / AWG 20

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0451-00 — 30.03.2011 —
