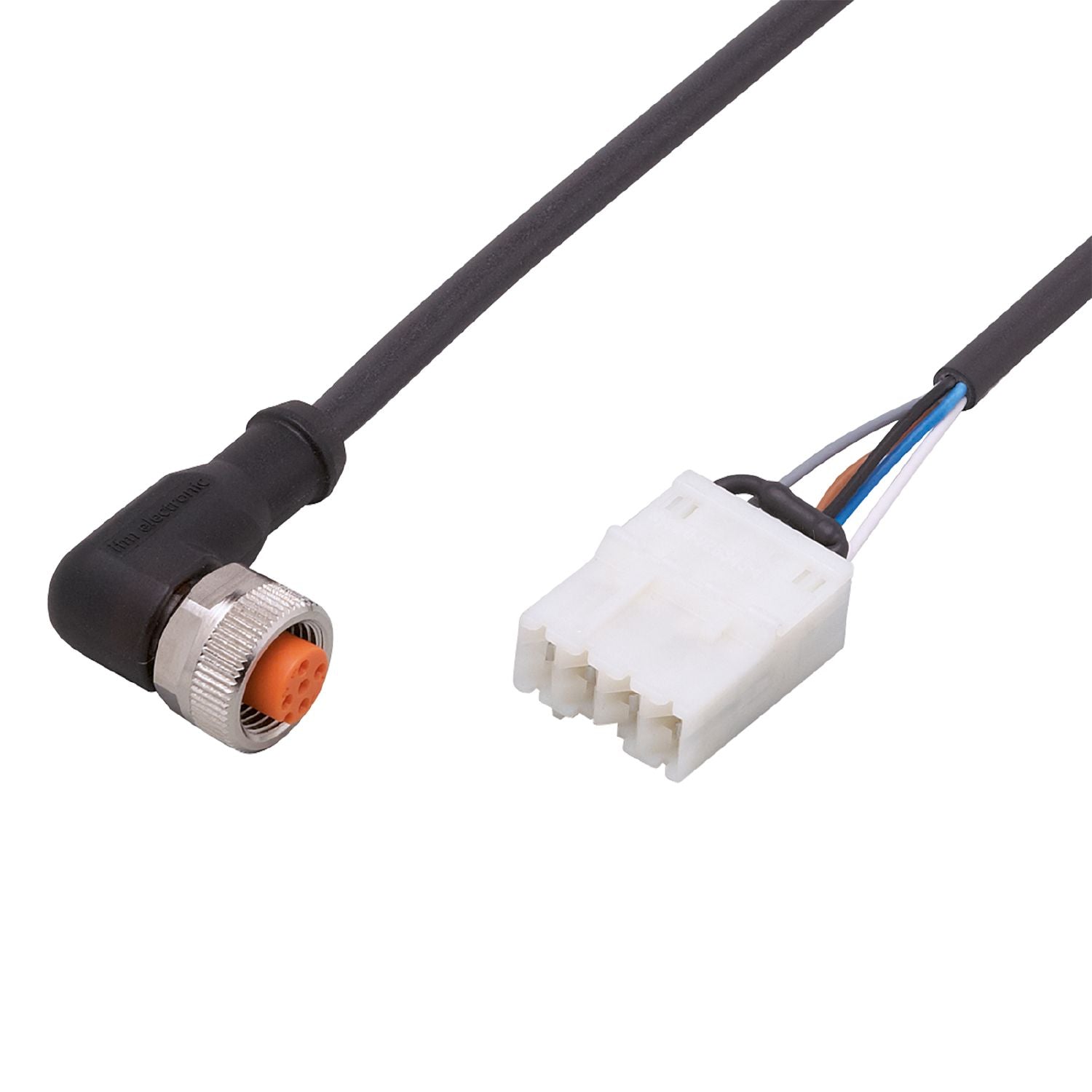

IFM EC0454 - Prewired jumper with contact housing BasicCable/Display 5m

For the connection of controllers and dialogue units.
Reliable signal transmission for CAN devices.
With integrated CAN bus terminating resistors in contact housing and connector.
Large operating temperature range for use in mobile machines.
Wired for voltage supply and signal transmission

Design	wired, for BasicController and BasicDisplay, 1 x CR04xx, 1 x CR045x
Application	power supply; CAN bus

Operating conditions

Ambient temperature [°C]	-40...85

Weight [g]	194.4

Remarks	CAN bus terminating resistors (120 ohm) are integrated into the standard timer contact housing and the M12 connector
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 5 m; 5 x 0.34 mm²
Connection	Connector: 1 x M12
