IFM EC0457 - Wirable plug set for mobile controllers BasicContact-Set/for CR0421

For the connection of relays.
Complete set of contacts for relay contacts, power distributors and voltage supply.
For installation in contact housings.
For safe electrical connections

Design	for BasicRelay, utilising all connections to a BasicRelay, CR0421

Weight [g]	85.5
Dimensions [mm]	134.5 x 50.6 x 210

Accessories

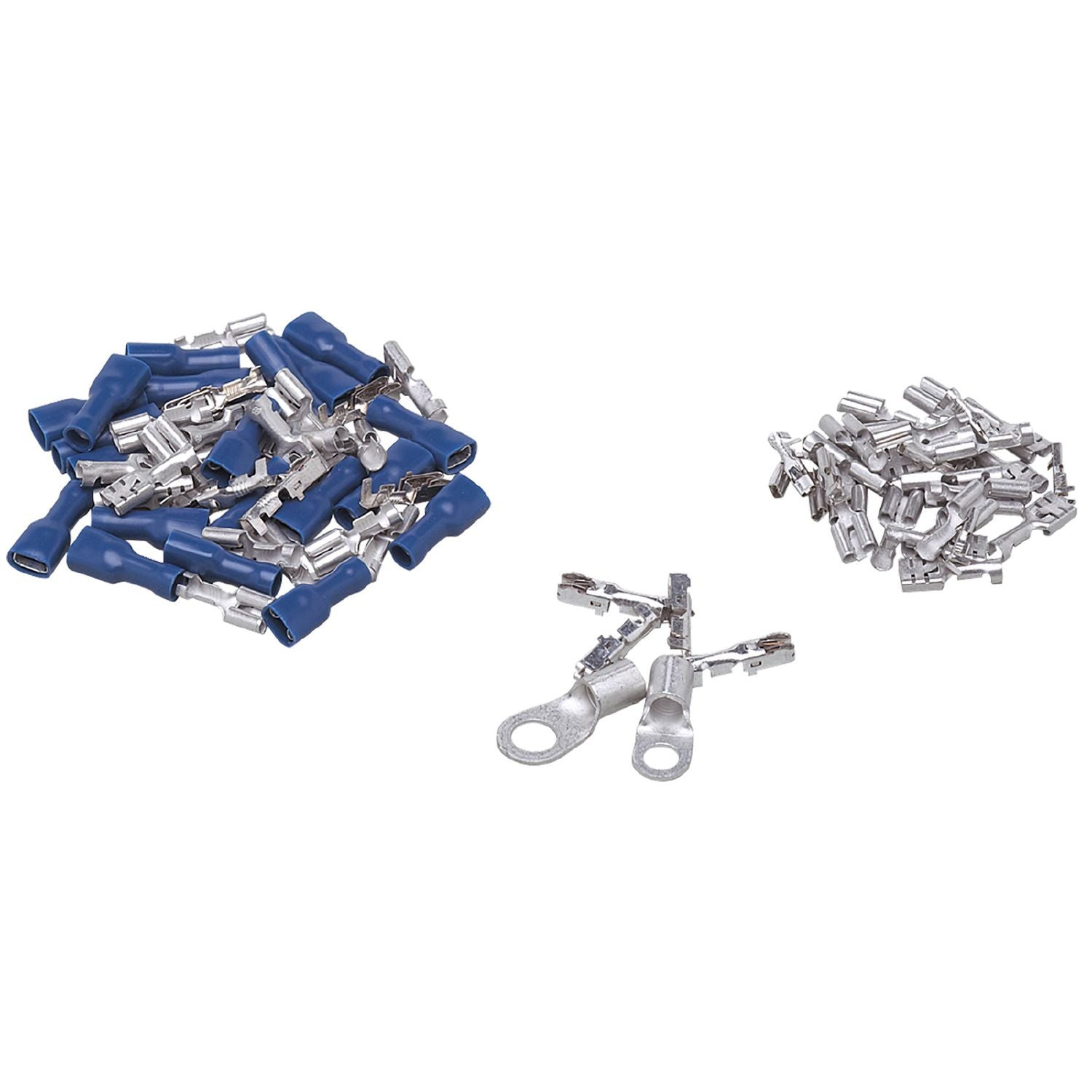

Items supplied

blade female terminals for relay contacts: 10 x 2,8 x 0,8 mm (0,5...1,0 mm²), DIN 46340 blade female terminals for relay contacts: 20 x 6,3 x 0,8 mm (0,5...1,0 mm²), DIN 46340 blade female terminals for relay contacts: 20 x 6,3 x 0,8 mm (1,0...2,5 mm²), DIN 46340 blade female terminals for power distributors: 20 x 6,3 x 0,8 mm (1,0...2,5 mm²), fully insulated DIN 46245 contacts for automotive fuse holders: 6 x 0,5...1,5 mm² contacts for automotive fuse holders: 4 x 2,0...3,0 mm² ring terminals for power supply: 1 x M6 (10 mm²), DIN 46234 ring terminals for power supply: 1 x M8 (10 mm²), DIN 46234 Nuts: 1 x M6, galvanised ISO 4032 Nuts: 1 x M8, galvanised ISO 4032

Electrical connection

	terminals:

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0457-00 — 11.02.2011 —
