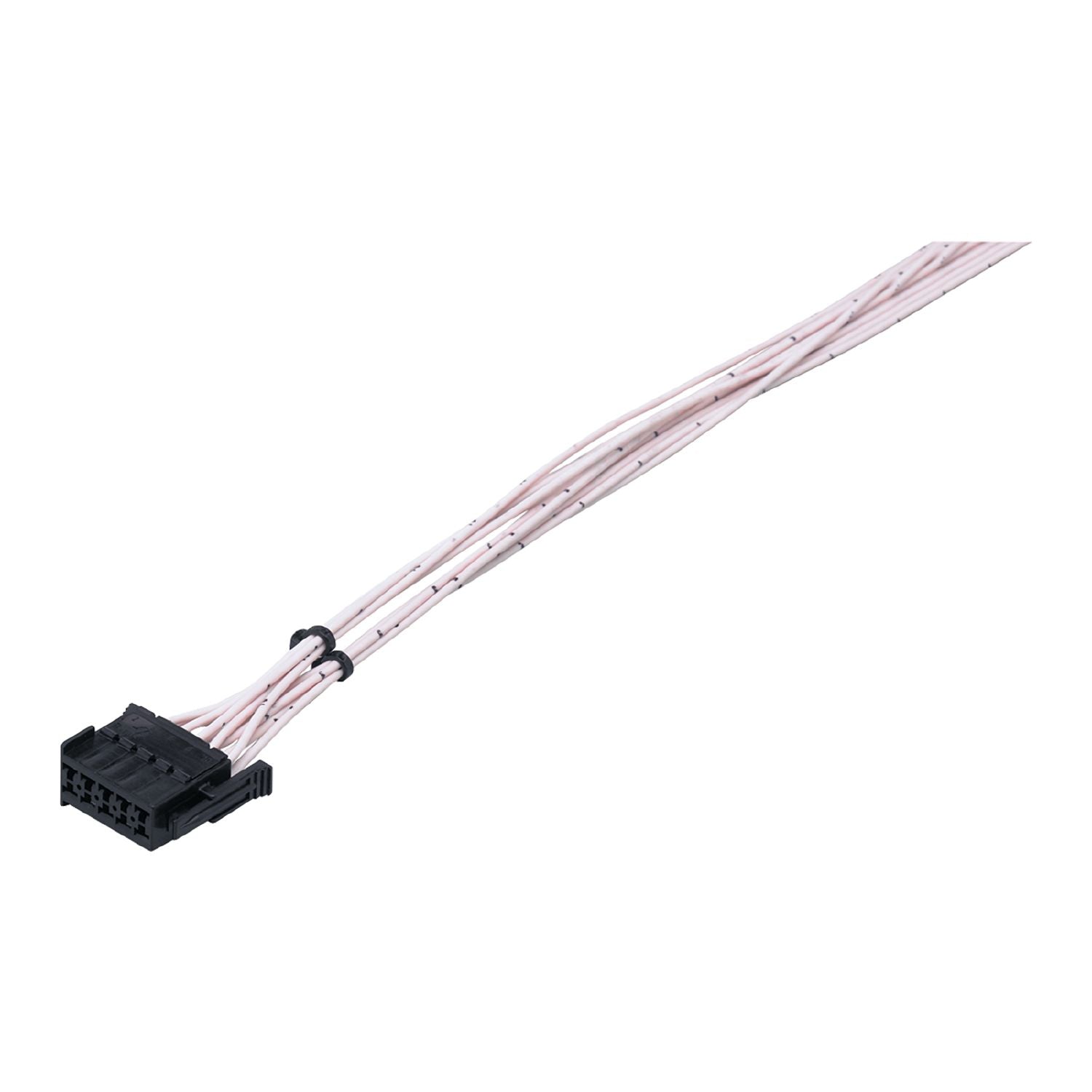

IFM EC1521 - Connecting cable with AMP connector R360/CabinetCable/10 pins

For a reliable signal transmission of controllers and dialogue modules.
Wide operating temperature range.
For applications in mobile machines and in particularly harsh industrial environments.
AMP connector for the fast and easy connection to the on-board system.
Lockable connector with reverse polarity protection

Design	for CabinetController

Operating voltage [V]	30 AC / 36 DC

Weight [g]	147.7

Pack quantity	1 pcs.

Electrical connection

	Cable: 1.2 m; 1 mm²
	Connector: 1 x AMP
