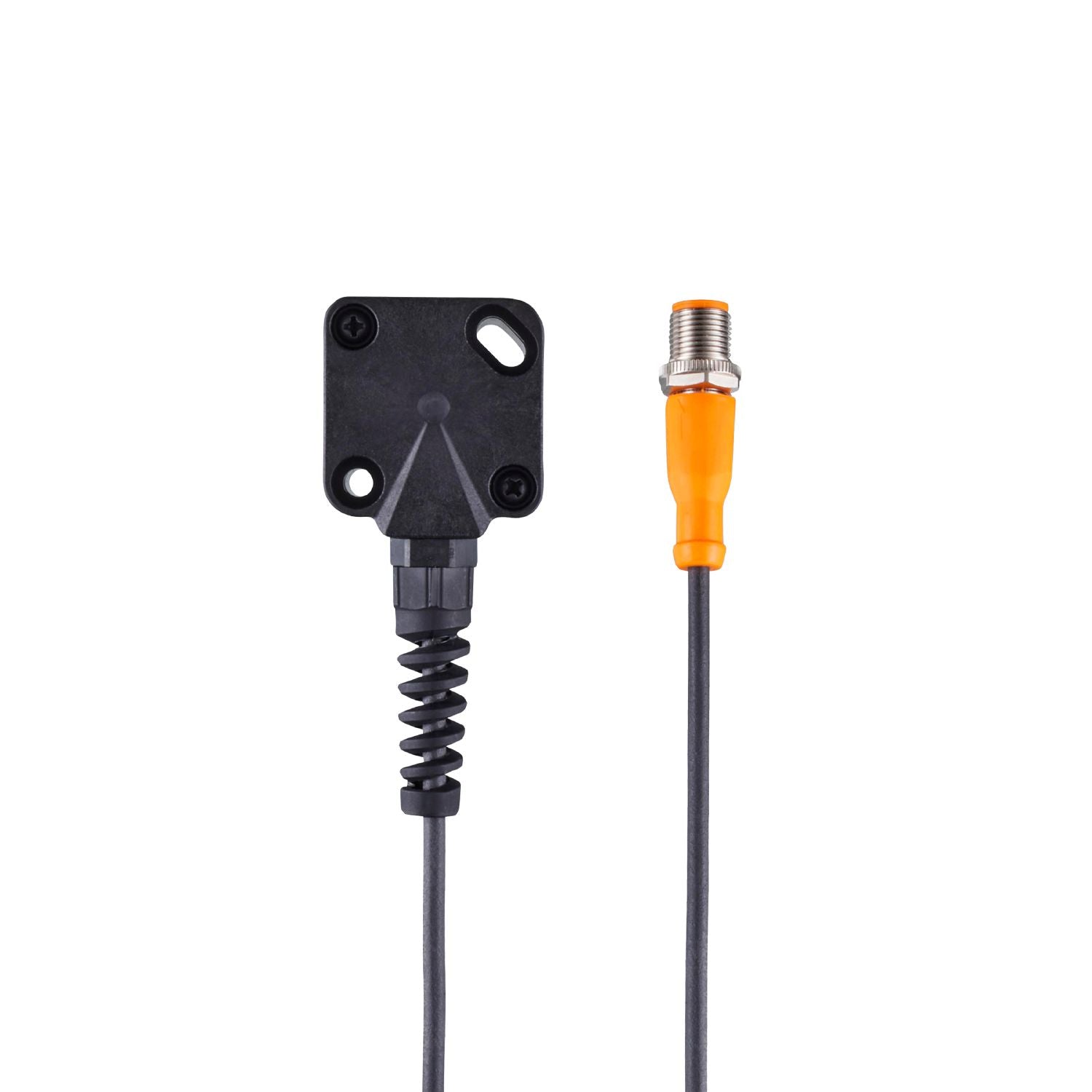

IFM EC2060 - Inclination sensor R360/INCLINOMETER/4-20mA

Precise detection of angles of inclination.
High repeatability.
Precise analogue output.
Suited for use in mobile machines

Number of measurement axes	1
Angular range [°]	± 20

Function principle	static

Operating voltage [V]	11...15 DC
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	400
Overload protection	yes

Measuring/setting range

Number of measurement axes	1
Angular range [°]	± 20

Accuracy / deviations

Accuracy [°]	<±7;(the zero point error can be compensated for by adjusting the unit by ± 4°)
Repeatability [°]	0,1

Operating conditions

Ambient temperature [°C]	-30...85
Storage temperature [°C]	-30...85
Protection	IP 67

Tests / approvals

MTTF [years]	991

Weight [g]	189.9
Dimensions [mm]	40.5 x 40.5 x 52.2
Materials	housing: PPO
Tightening torque [Nm]	1.8
Installation position	vertical

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.2 m
	Connector: 1 x M12; coding: A

Diagrams and graphs

Mess- und Montagerichtung	vertikale Einbaulage / Rotation um Z-Achse
